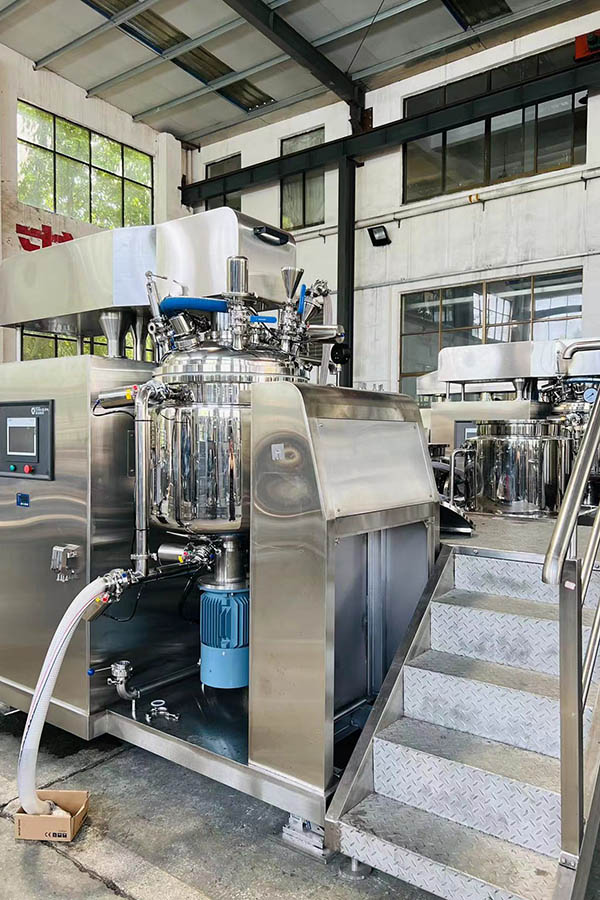

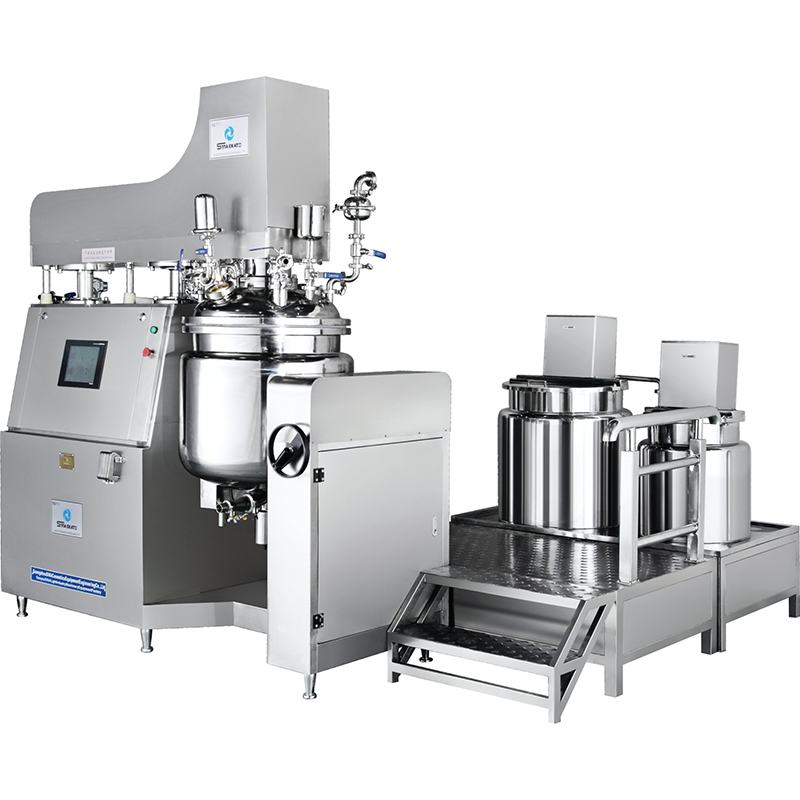

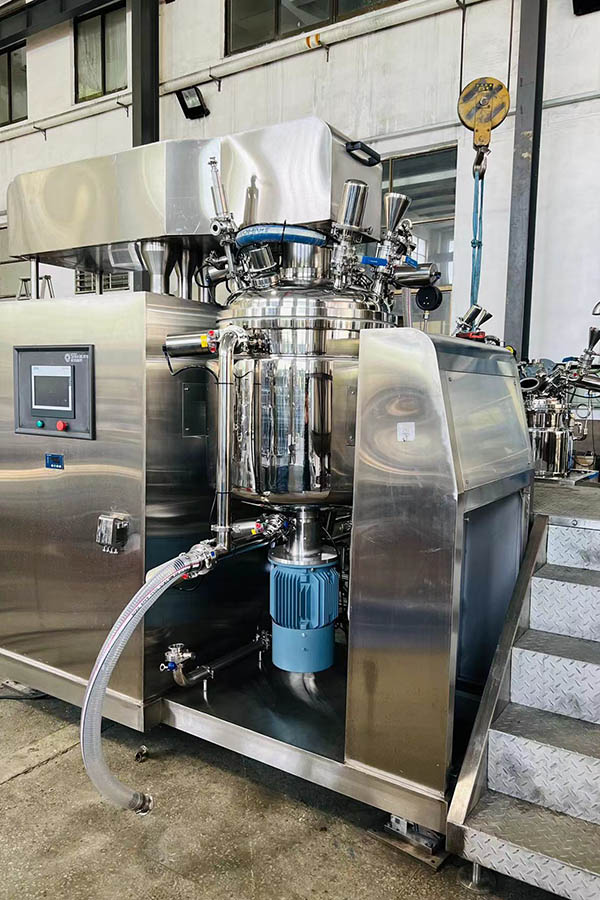

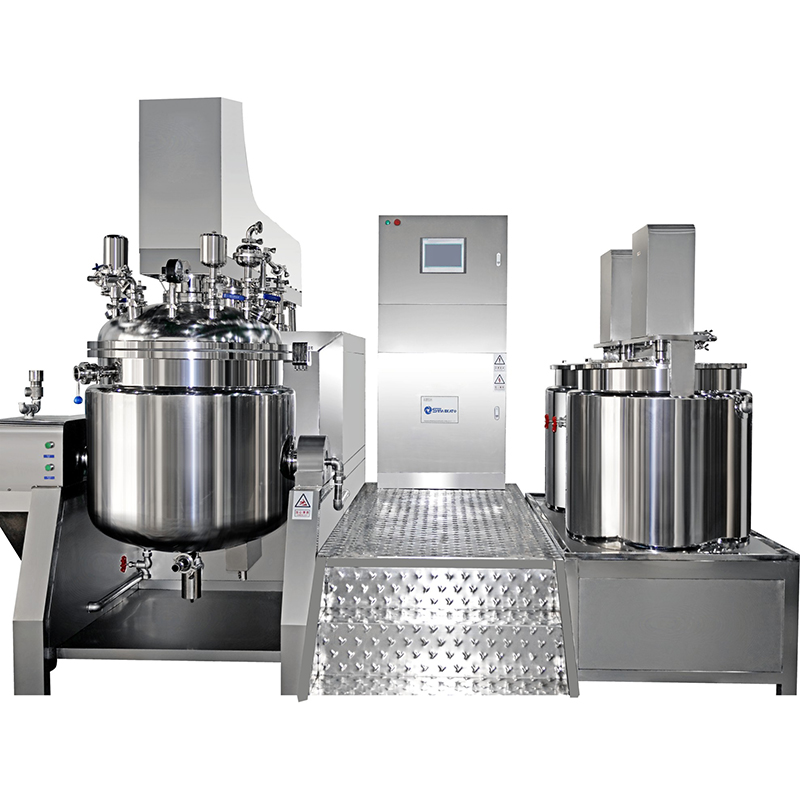

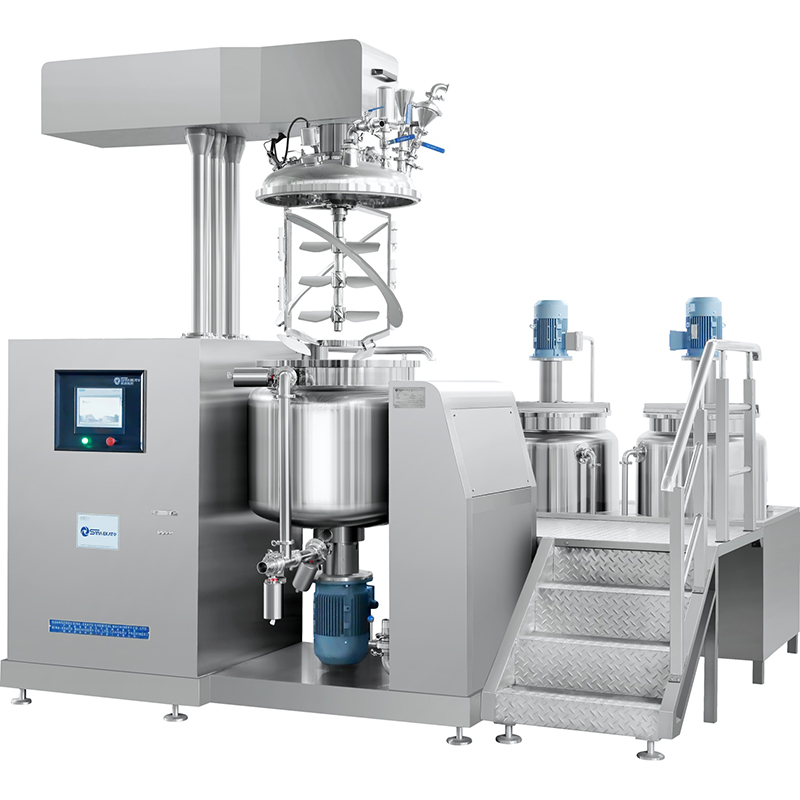

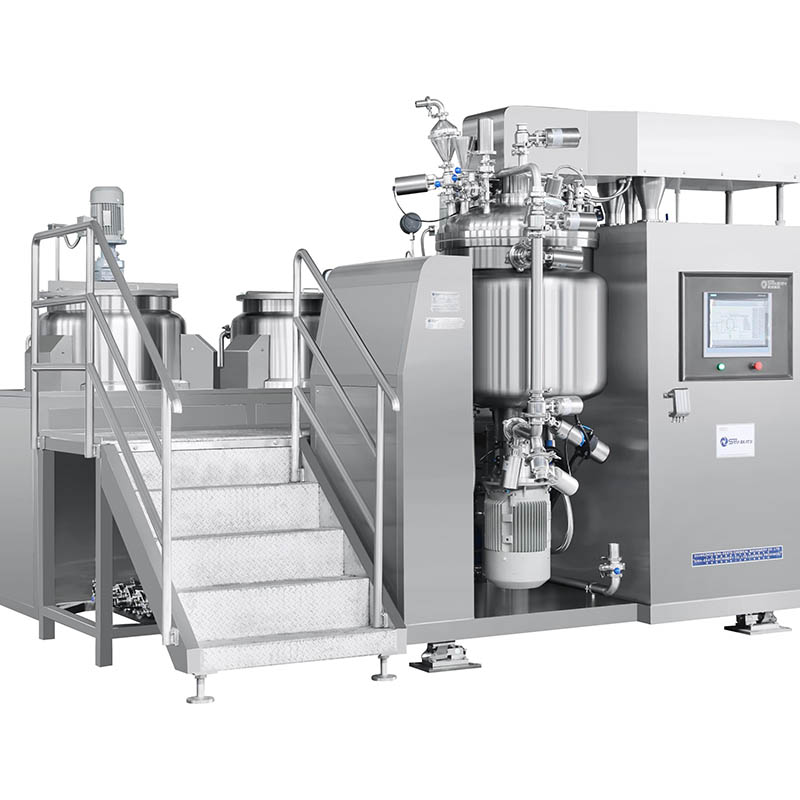

The machine composed of two pre-mixing pots, vacuum emulsifying pot, vacuum pump, hydraulic system, discharge system, electric control system and working platform etc. The machine is easy operation, stable performance, perfect homogenizing performance high work efficiency, easy for cleaning, reasonable structure, occupy small space, highly-automatized.
Key Features & Advantages
1
Siemens motor and frequency converter for speed adjustment, which can meet production of different technology requirement.
2
The vacuum defoaming can make the materials meet the requirement of being aseptic. The vacuum material sucking adopted can avoid dust,especially for the powder products.
3
Mechanical sealing, good sealing effect and long working life.
4
The tank body and the pipes adopt mirror polishing, which fully conforms to GMP standards.
5

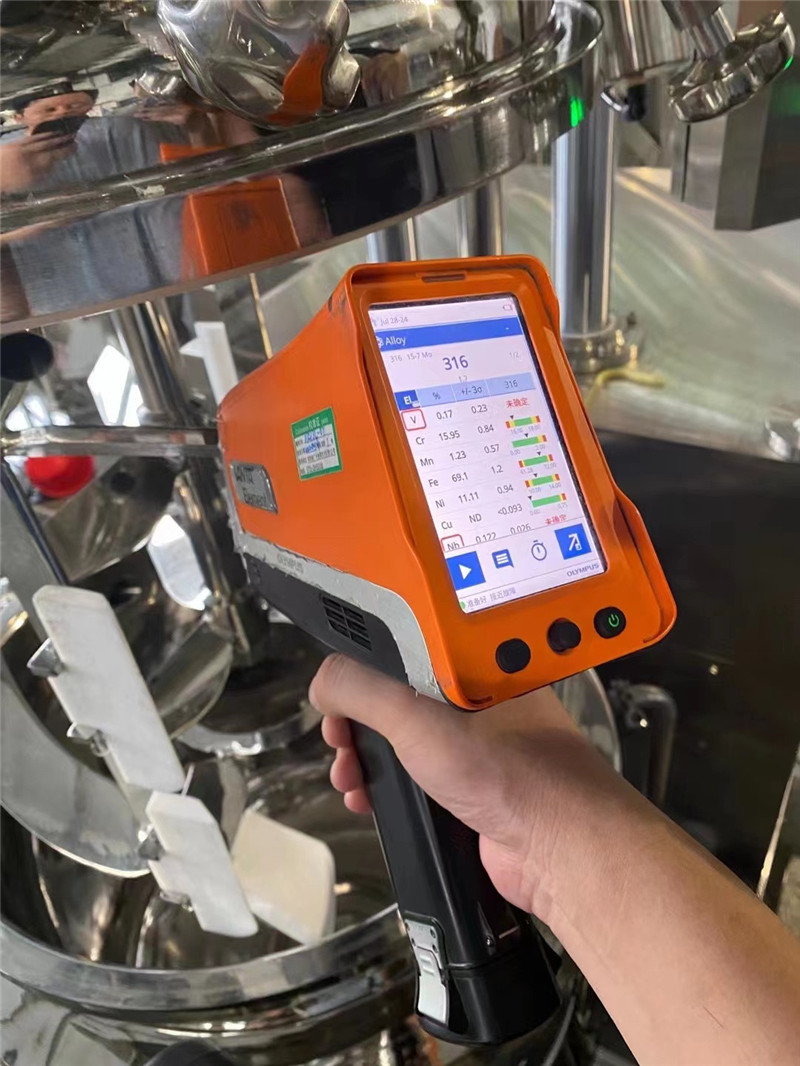

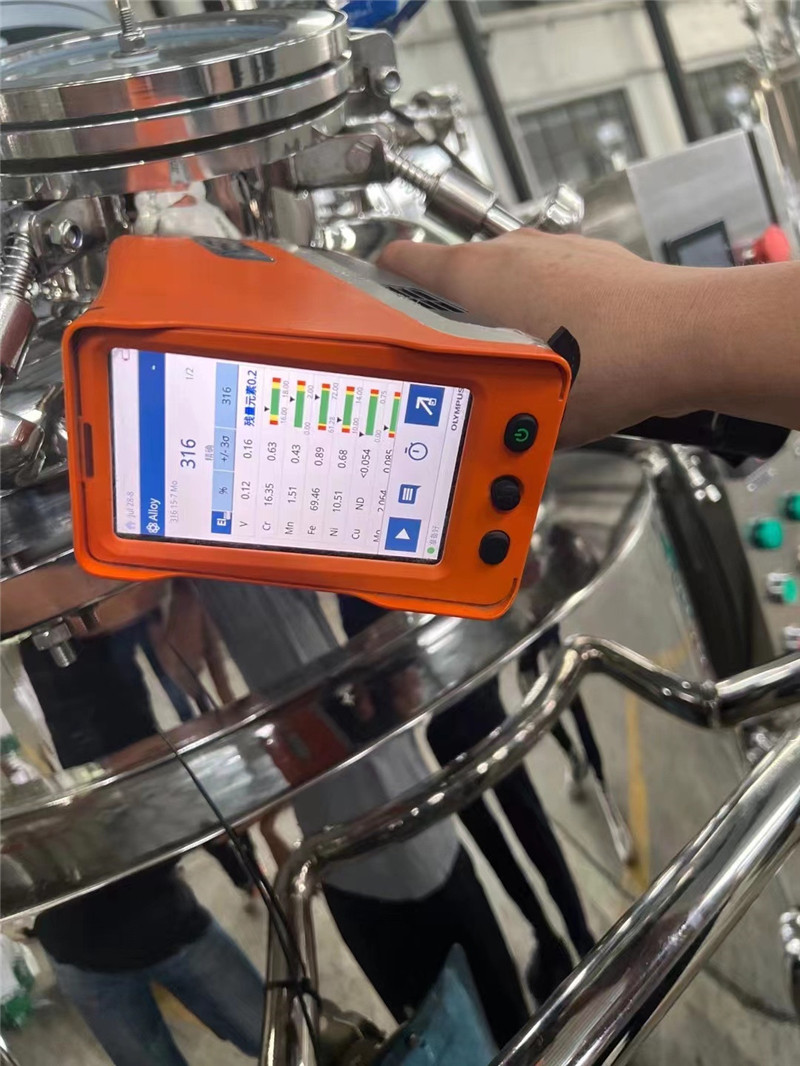

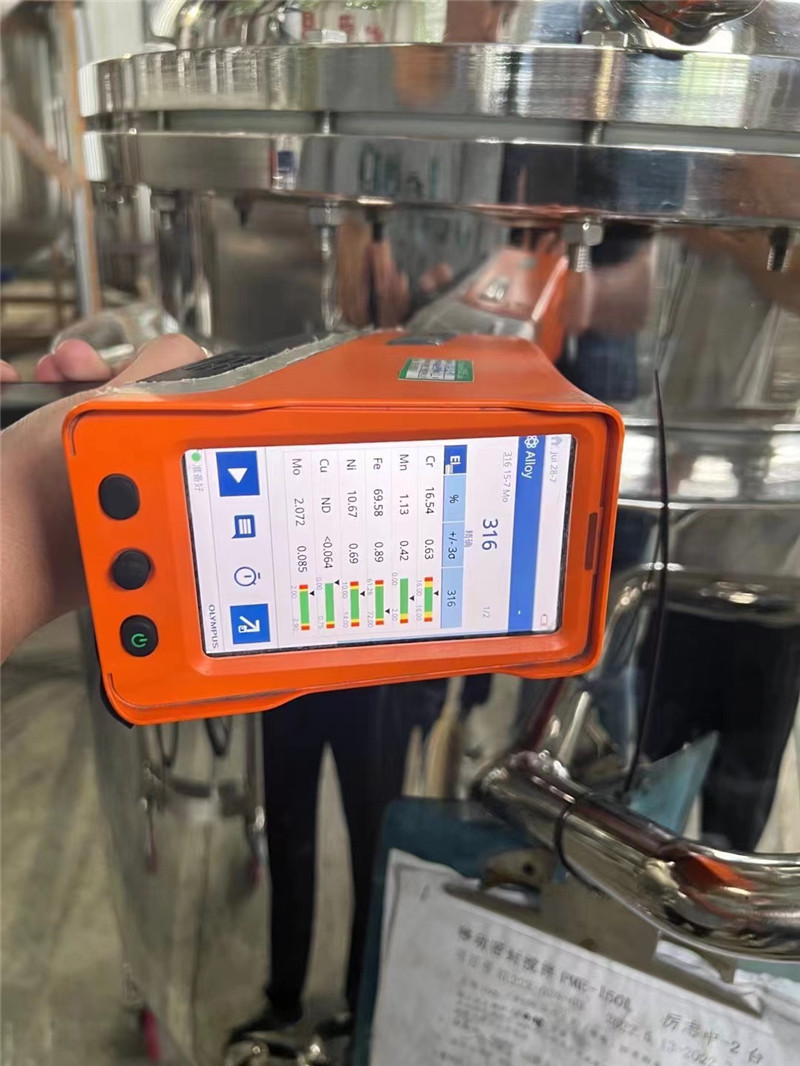

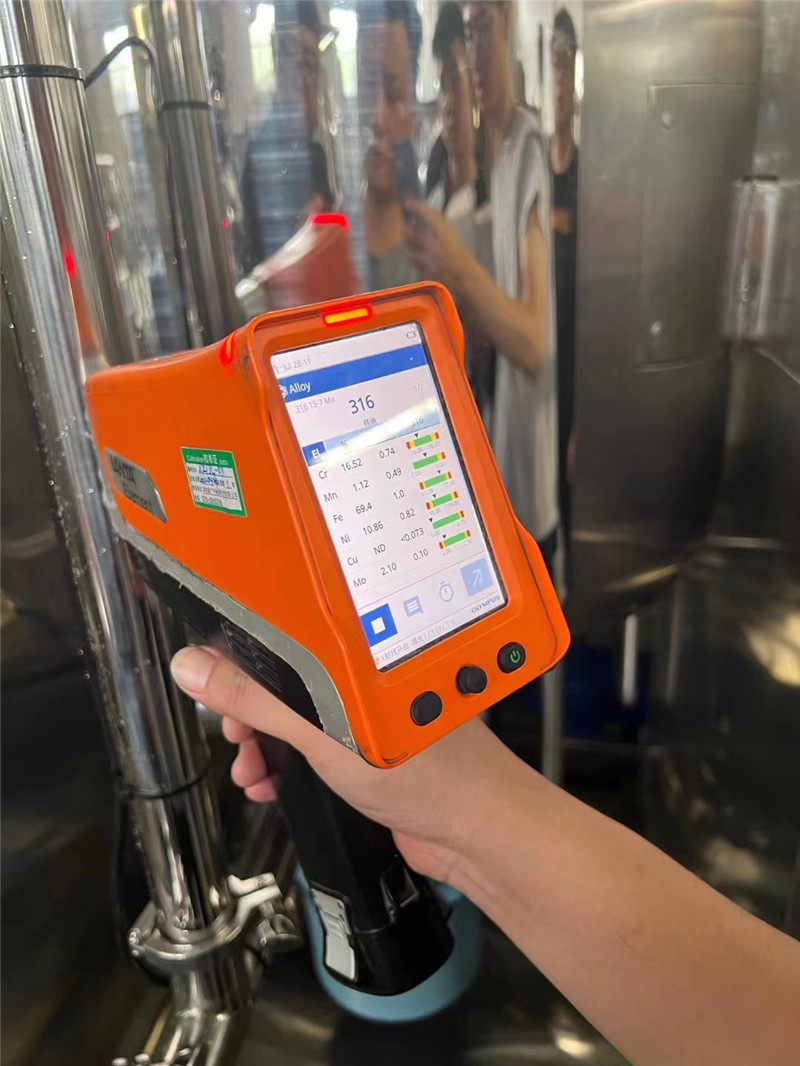

Material contact parts all use SUS316L stainless steel.
6
The heating method mainly include electric or steam heating for customer's choice.
7

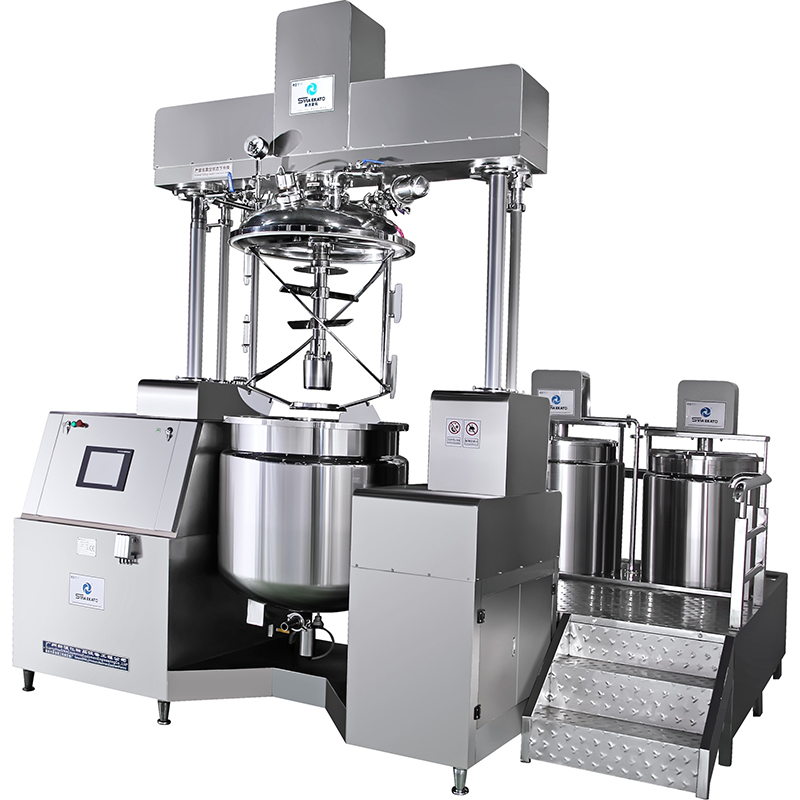

The emulsifying pot lid can adopt hydraulic lifting system, easy to clean and the cleaning effect is more obvious, the emulsifying pot can adopt tilt discharge.
Industrial Applications
The product is mainly applied in such industries as daily chemical care products biopharmaceutical industry, food industry, paint and ink, nanometer materials. petrochemical industry, printing and dyeing auxiliaries, pulp & paper, pesticide fertilizer, plastic & rubber, electrics and electronics, fine chemical industry, etc. The emulsifying effect is more prominent for materials of high base viscosity and high solid content.
Technical Specifications
| Model |
Capacity |
Mixing Power |
Speed Variable |
Homogenizer Power |
Speed Variable |
Heating Way |
Lifting |
Vacuum |
| SME-BE |
50L |
1.5KW |
0-63RPM |
3KW |
0-3000RPM |
Electric heating or steam heating |
Yes (Hydraulic Lift up/down) |
Yes (-0.093Mpa-1.5Mpa) |
| 100L |
2.2KW |
4KW |
| 200L |
3KW |
5.5KW |
| 300L |
3KW |
7.5KW |
| 500L |
4KW |
11KW |
| 1000L |
7.5KW |
15KW |
| 2000L |
11KW |
18.5KW |
| 3000L |
15KW |
22KW |
| Accept Customized |
Cream, Lotion Skincare
Shampoo/Conditioner/Detergent liquid washing products
Pharmaceutical, Medical
Mayonnaise Food
Frequently Asked Questions (FAQ)
Q
What components make up the vacuum emulsifying machine?
The machine is composed of two pre-mixing pots, a vacuum emulsifying pot, a vacuum pump, a hydraulic system, a discharge system, an electric control system, and a working platform.
Q
What are the benefits of using a vacuum system in this machine?
The vacuum defoaming function ensures that the processed materials meet aseptic requirements. Additionally, the vacuum material suction mechanism prevents dust pollution, which is particularly beneficial when handling powder products.
Q
Does the equipment conform to hygienic standards for pharmaceutical use?
Yes, the tank body and pipes feature mirror polishing that fully conforms to GMP standards. Additionally, all parts that come into direct contact with the materials are manufactured using high-quality SUS316L stainless steel.
Q
What heating and discharging options are available?
For heating, customers can choose between electric heating or steam heating options. For discharging, the emulsifying pot lid can adopt a hydraulic lifting system for easy cleaning, and the pot is designed to support tilt discharge.
Q
What is the capacity and speed range of the SME-BE model?
The SME-BE model ranges in capacity from 50L to 3000L. It features a variable mixing speed of 0-63 RPM and a variable homogenizing speed of 0-3000 RPM. Customized configurations are also accepted.
Q
Which industries are best suited for this vacuum emulsifying machine?
This machine is highly suitable for daily chemical care (creams, lotions, shampoos, detergents), biopharmaceuticals, food production (like mayonnaise), paints, inks, nanometer materials, petrochemicals, plastics, rubbers, and fine chemical industries.
