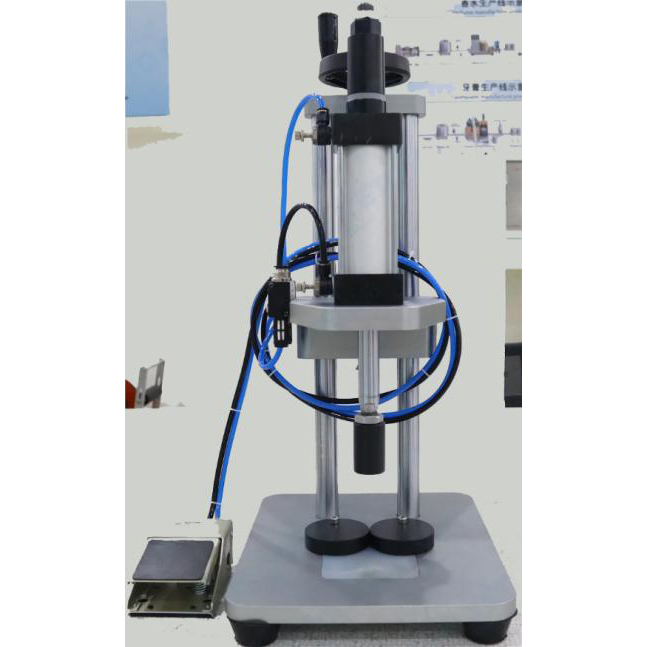

Semi-auto Perfume Crimping Machine (Crimping head: 13mm, 15mm, 17mm, 21mm...etc)

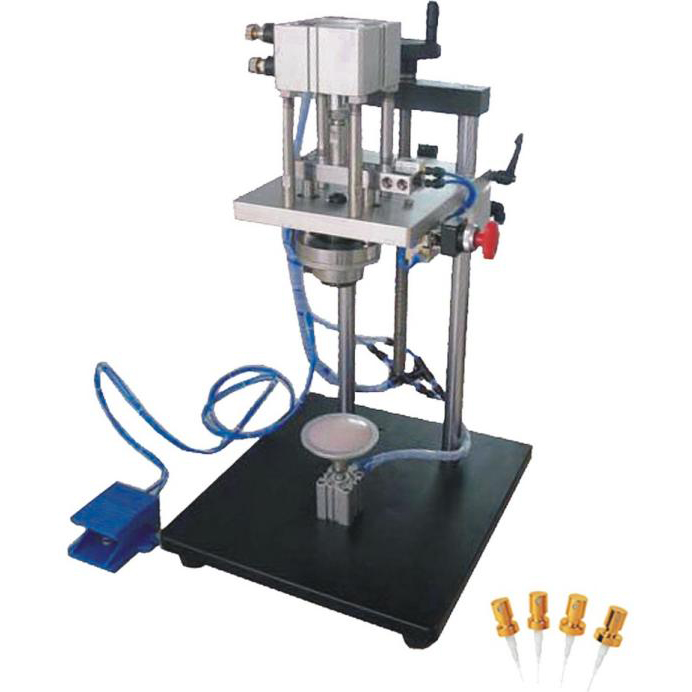

Semi-auto Perfume Collaring Machine & Manual Collaring Machine
| Main Parameters (Customization Available) | |
|---|---|
| Bottle height | ≤ 250mm |
| Maximum diameter of bottle mouth | ≤ 20mm |
| Minimum diameter | ≥ 4.5mm |
| Adjustable liquid level high (from bottle mouth) | 26-50mm |
| Boundary dimension (excluding storage bottle) | 660 X 470 X 1330mm |
| Power Supply | 220V Single-phase |
| Vacuum pump | XD-020 (explosion-proof type 2X-4A) |
| Pumping rate | 5.5 (explosion-proof type 4) L/s |
| Motor power | 0.75 Kw |

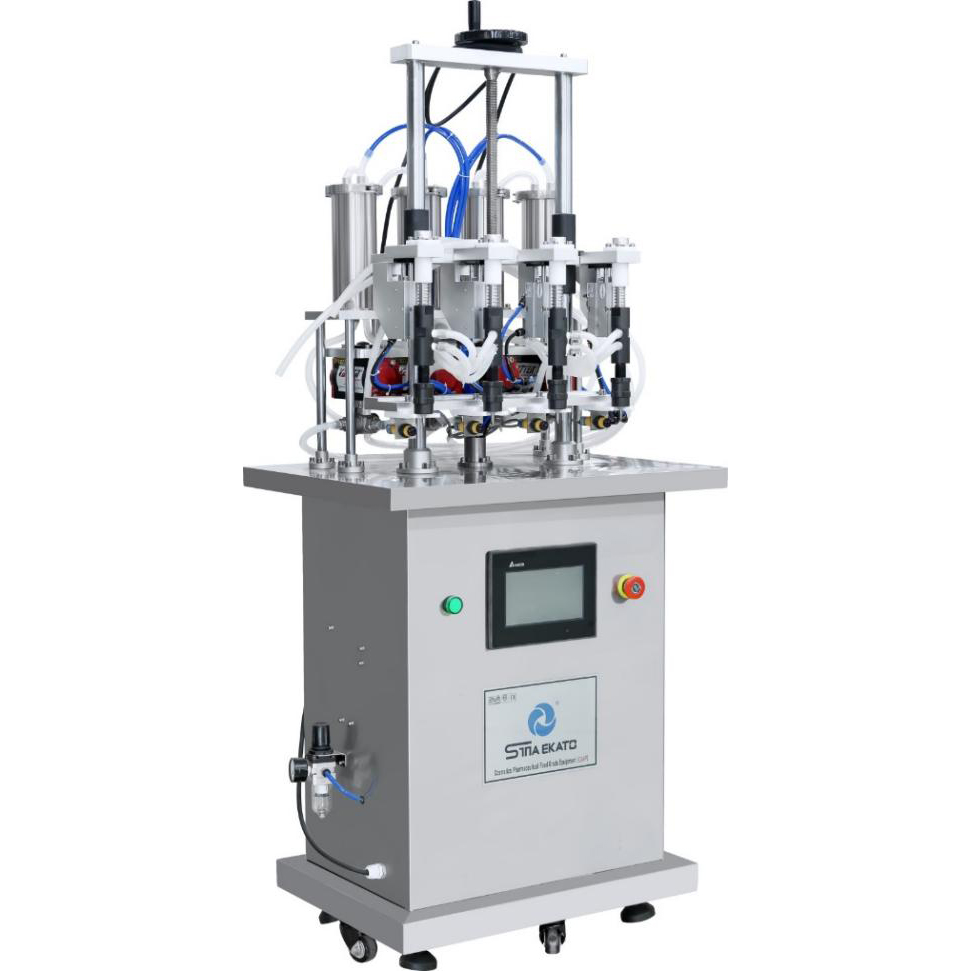

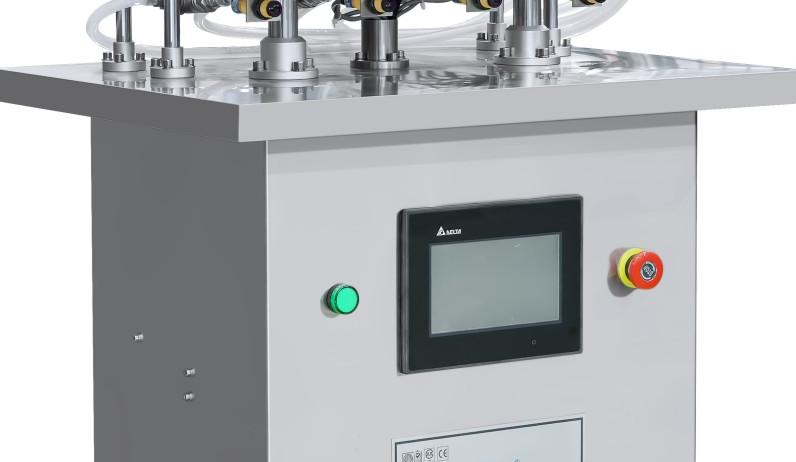

Simple operation panel allows for easy control of working parameters. No intensive training required for operators. Interface languages can be customized based on requirements.

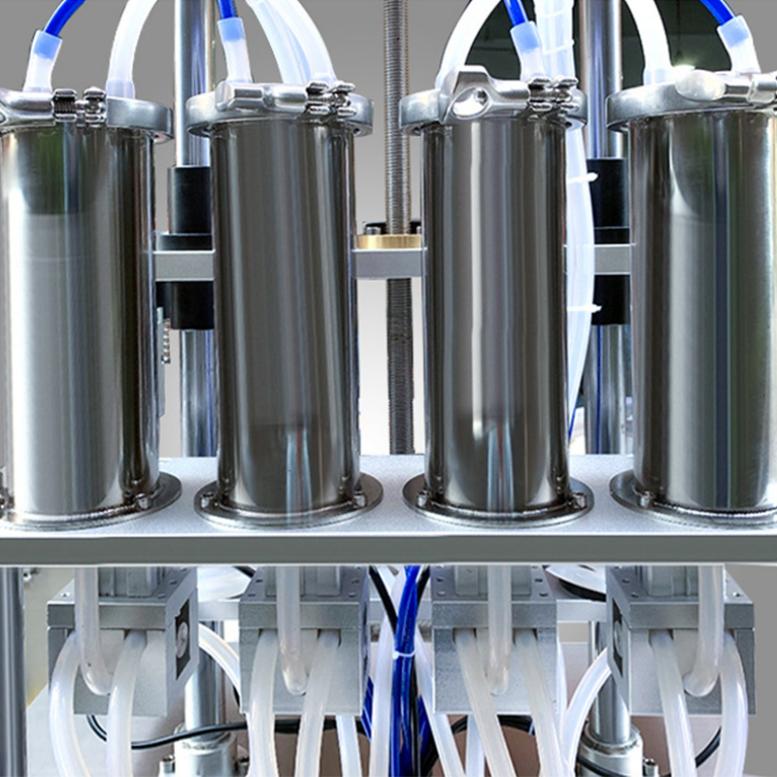

Utilizing the vacuum constant liquid-level principle to fill liquid accurately. If the level exceeds the marked red line, the system sucks extra liquid back to the material container. Spring-loaded nozzles prevent bottle breakage during high-pressure cycles.

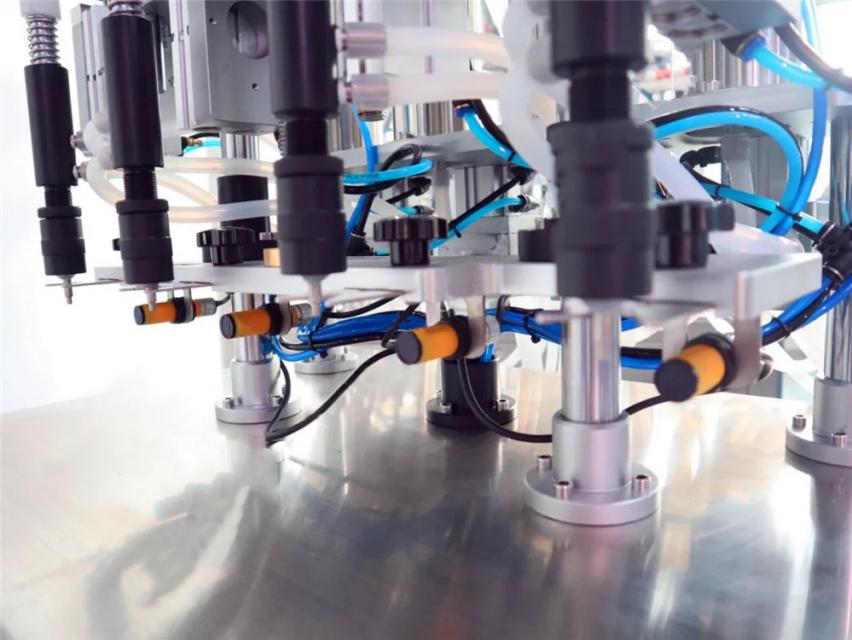

Equipped with high-quality electric eyes, each nozzle is individually controlled. The white bottle fixing component ensures stability during operation, preventing bottles from falling.

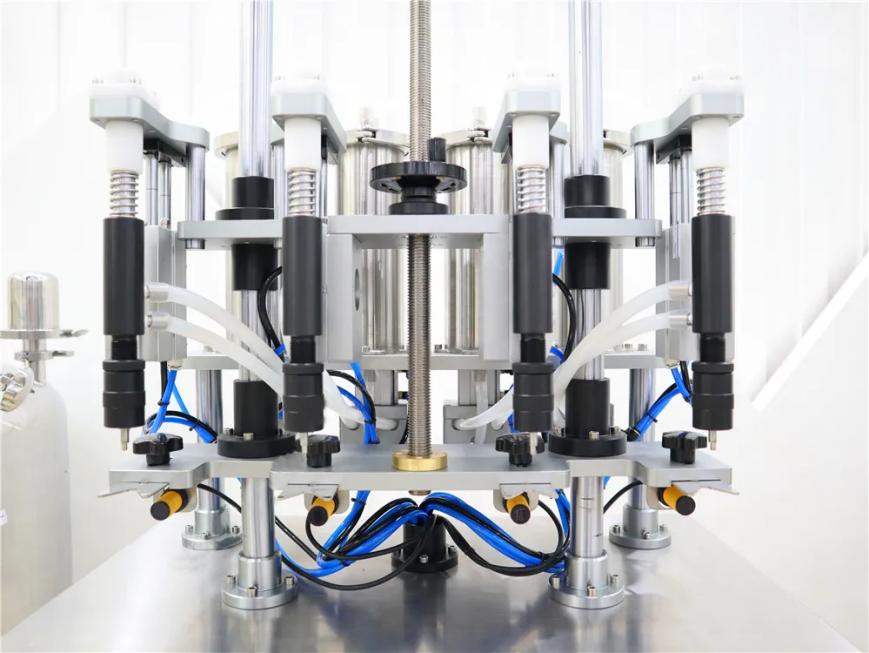

Large material cylinder for back-flow liquid ensures filling accuracy and resource efficiency.

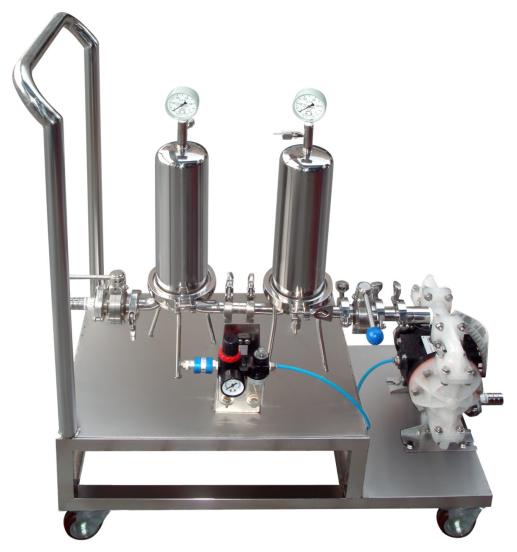

Perfume Cartridge Filter & Diaphragm Pump

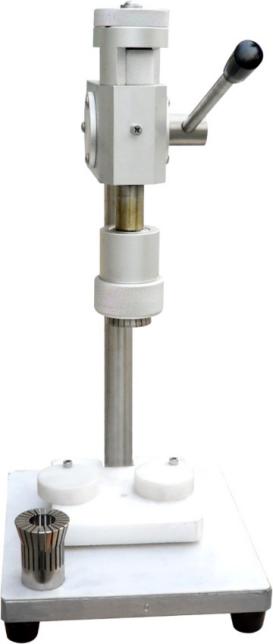

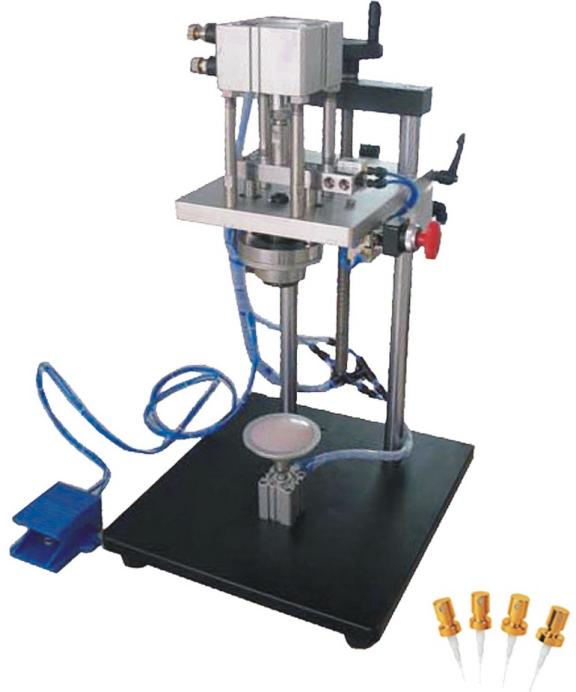

Manual Crimping Machine Display

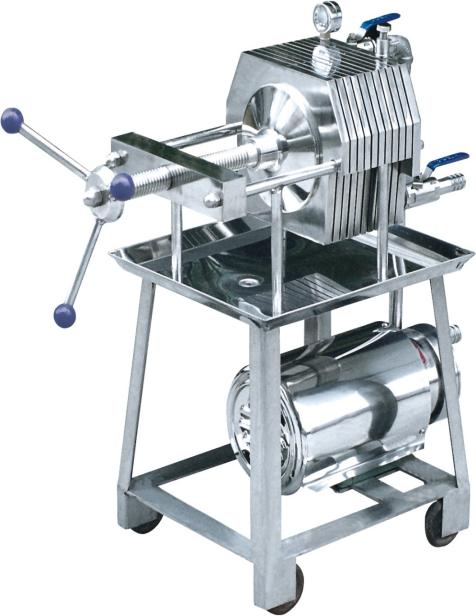

Perfume Paper Filter & Diaphragm Pump
