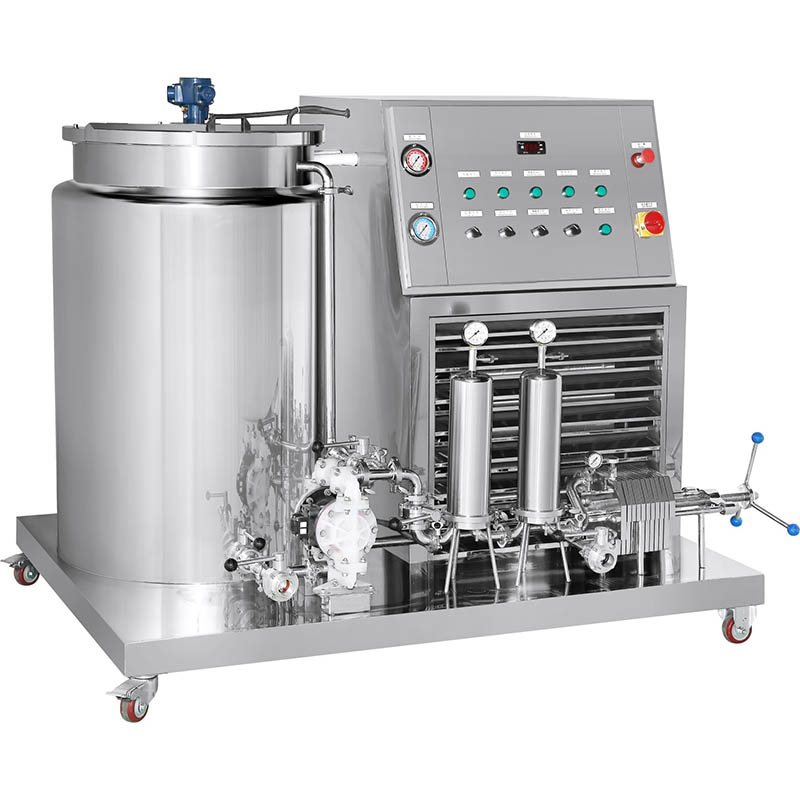

CE Certification SINA EKATO XS Perfume-making Machine Fragrance Chiller Filter Mixer Manufacturer, Suppliers

1 / 1

CE Certification SINA EKATO XS Perfume-making Machine Fragrance Chiller Filter Mixer Manufacturer, Suppliers

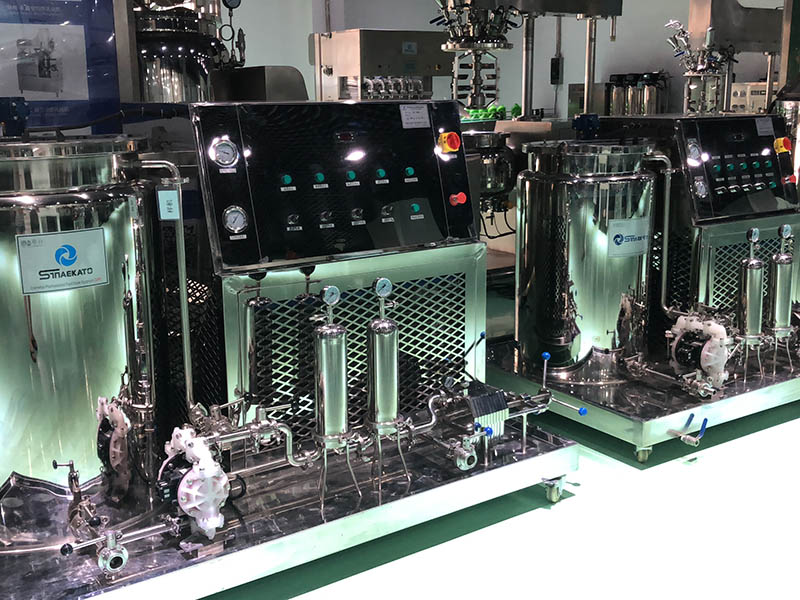

Perfume-making machine fragrance chiller filter mixer on the basis of introducing advanced technologies from abroad by our company, the product is specially used for clarification and filtration of liquids such as cosmetic, perfume and so on after freezing. It is an ideal device for filtering cosmetics and perfume in cosmetics factory.

Send Inquiry

Product Description

Stainless steel heat preservation freezing tank and titanium metal coil pipe.
Freezing unit (imported from France Danfoss or Japan Hitachi).
Anti-corrosive pneumatic diaphragm pump (imported from USA).
Polypropylene micro porous filtration film (from USA).

XS Perfume-making Machine Fragrance Chiller Filter Mixer applied on perfume, fragrance, parfume, hair spray, body spray..ect.

Technical Parameter
Model	2P-100	3P-200	5P-300	5P-500	10P-1000
Freezing power	2P	3P	5P	5P	10P
Freezing capacity	100L	200L	300L	500L	1000L
Filtration precision	0.1μm	0.1μm	0.1μm	0.1μm	0.1μm
Refrigeration temperature	-5°C to -15°C
Refrigeration liquid	R22 (or other medium as per requirement)
More sizes accept customized

Microporous Filtration

Equipped with polypropylene microporous filtration film, filtration accuracy reaches up to 0.2 μm.

Mixing & Chilling Coil

1. Material contact part: SUS316L.
2. One machine realizes mixing, chilling, and filtering functions.

Pneumatic Mixing Motor

1. High Safety standards.
2. Suitable for mixing liquid with alcohol content.
3. Mixing speed: 0-900rpm.

Control Components

1. Reliable button control.
2. Each function can be controlled separately.
3. Equipped with emergency stop switch for operator protection.

Pneumatic Pump

Double function: pumps raw material from storage to mixing tank, and finished product from mixing to storage tank.

Perfume Crimping Machine

Perfume Filling Machine

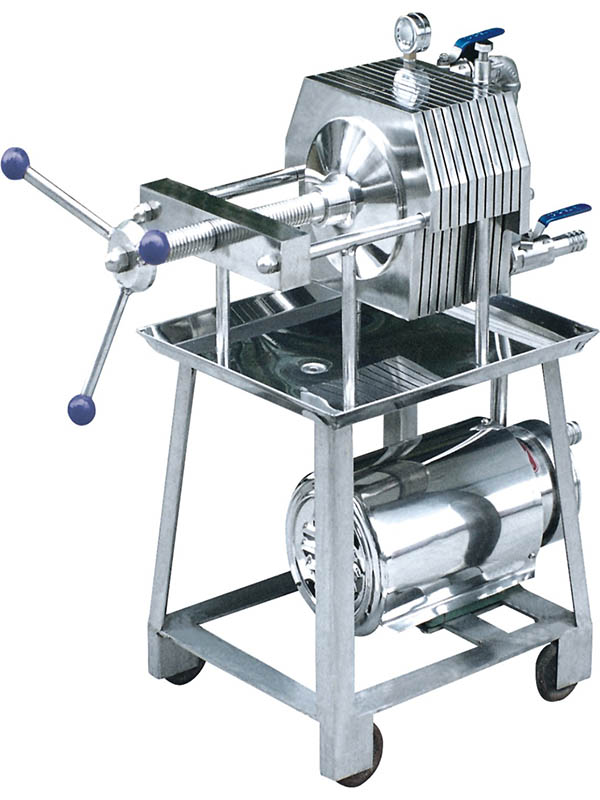

Perfume Paper Filter

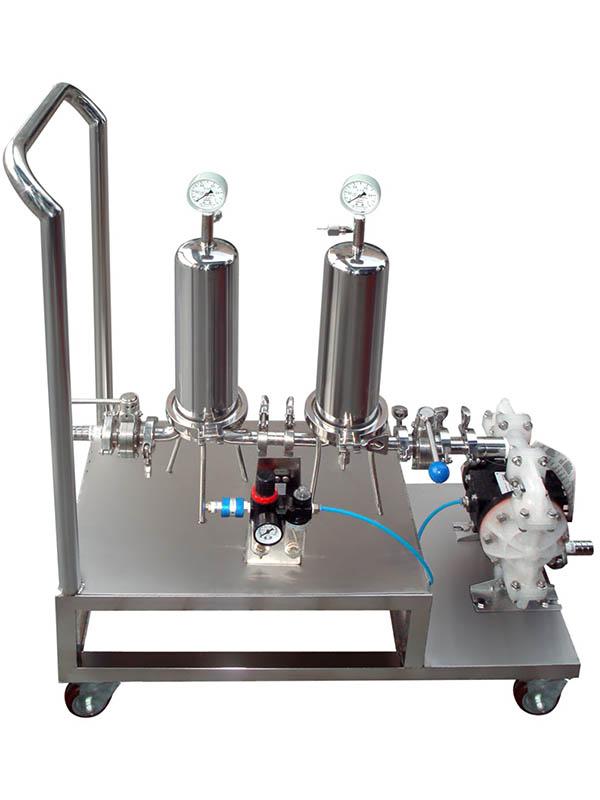

Perfume Cartridge Filter

The product is made of high-quality 304 stainless steel or 316L stainless steel. The pneumatic diaphragm imported from USA is adopted for pressure source to carry out positive pressure filtration. The connecting pipes are sanitary polishing pipes, which completely adopt rapid installation type connection with convenient assembly, disassembly, and cleaning.

Equipped with polypropylene microporous filtration film, it can be widely used in cosmetics industry, scientific research department, hospital and laboratory, etc. for clarification, bacteria removal and filtration of small amount of liquid, or micro chemical analysis.

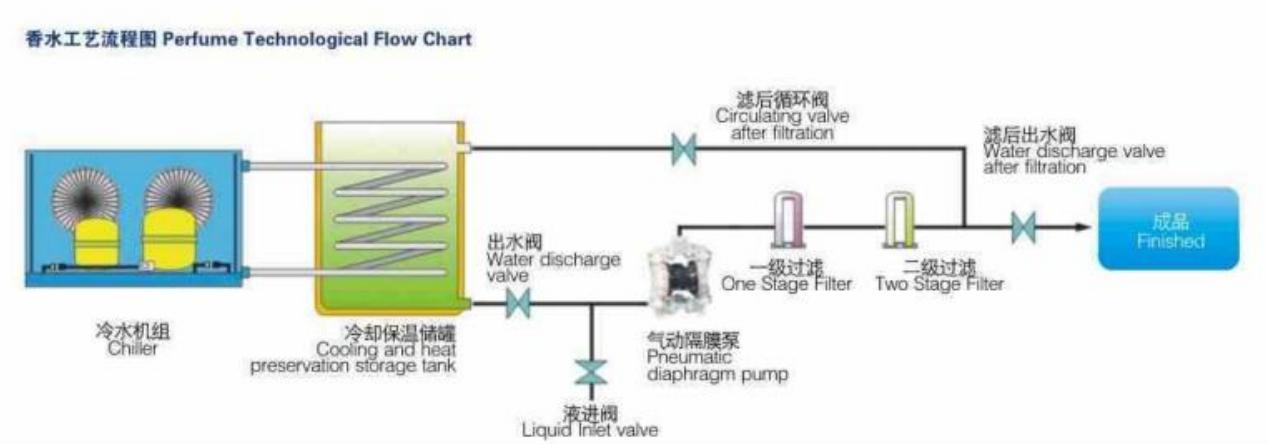

System Includes: Mixing tank for raw material + Chiller system for cooling perfume + Pump for circulation & discharge + 3 times filter process

Frequently Asked Questions (FAQ)

Q1: What materials are used in the construction of this perfume machine?

The machine is constructed using high-quality SUS304 or SUS316L stainless steel for durability and hygiene. The cooling system features titanium metal coil pipes for superior performance.

Q2: What is the filtration accuracy of the system?

The system utilizes polypropylene microporous filtration films that can achieve a filtration accuracy of 0.1μm to 0.2μm, perfect for clarification and bacteria removal.

Q3: Is the machine safe for handling alcohol-based fragrances?

Yes, the machine is equipped with a pneumatic mixing motor and pneumatic diaphragm pump, making it intrinsically safe and suitable for mixing liquids with high alcohol content.

Q4: Can the chilling temperature be adjusted?

The refrigeration system, utilizing components from Danfoss or Hitachi, can maintain temperatures between -5°C and -15°C to ensure optimal fragrance stabilization.

Q5: What are the primary applications for this equipment?

It is widely used in the cosmetics industry for perfumes and body sprays, as well as in research departments, hospitals, and laboratories for chemical analysis and liquid clarification.

Q6: Are customized sizes available for higher production needs?

Yes, while standard models range from 100L to 1000L capacity, more sizes can be customized to meet specific production requirements.
