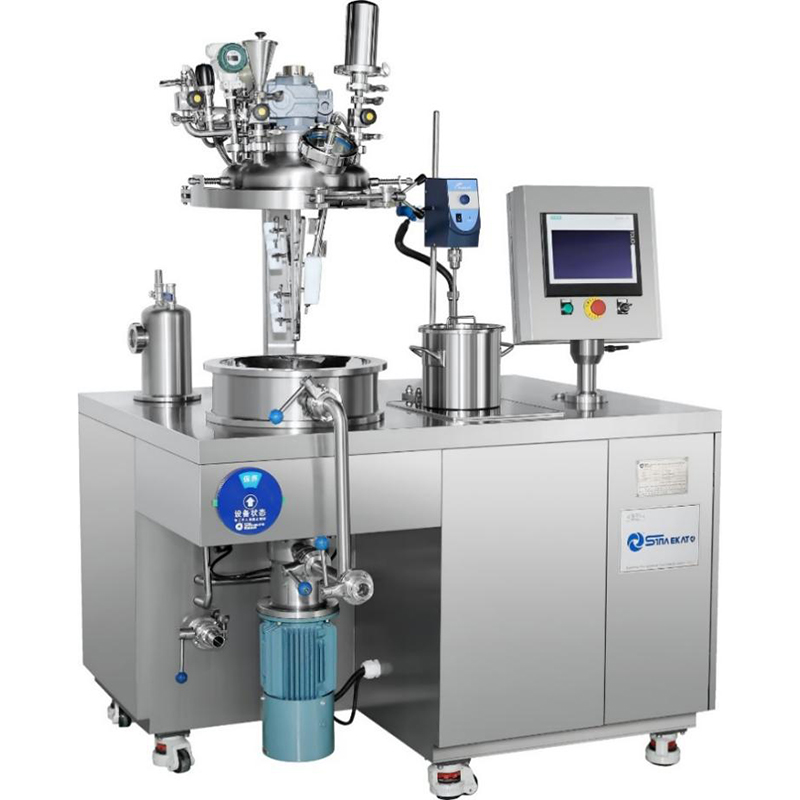

Best 5L-50L Automatic Cosmetics Lab Stirrers Homogenizer Lab Cream Lotion Ointment Homogenizer Mixer Supplier, Suppliers
Best 5L-50L Automatic Cosmetics Lab Stirrers Homogenizer Lab Cream Lotion Ointment Homogenizer Mixer Supplier, Suppliers
Best 5L-50L Automatic Cosmetics Lab Stirrers Homogenizer Lab Cream Lotion Ointment Homogenizer Mixer Supplier, Suppliers
Best 5L-50L Automatic Cosmetics Lab Stirrers Homogenizer Lab Cream Lotion Ointment Homogenizer Mixer Supplier, Suppliers
1 / 4
Best 5L-50L Automatic Cosmetics Lab Stirrers Homogenizer Lab Cream Lotion Ointment Homogenizer Mixer Supplier, Suppliers
Best 5L-50L Automatic Cosmetics Lab Stirrers Homogenizer Lab Cream Lotion Ointment Homogenizer Mixer Supplier, Suppliers
Best 5L-50L Automatic Cosmetics Lab Stirrers Homogenizer Lab Cream Lotion Ointment Homogenizer Mixer Supplier, Suppliers
Best 5L-50L Automatic Cosmetics Lab Stirrers Homogenizer Lab Cream Lotion Ointment Homogenizer Mixer Supplier, Suppliers

Best 5L-50L Automatic Cosmetics Lab Stirrers Homogenizer Lab Cream Lotion Ointment Homogenizer Mixer Supplier, Suppliers

Send Inquiry

Product Description

⚙ Technical Characteristics & Design
It adopts European classic tabletop structure, and brushed stainless steel is beautiful and generous.
The homogenizer is placed at the bottom of the pot with a very short rotating shaft to prevent shaking. Material enters from the bottom, circulates through the pipe outside the pot, and returns to the liquid level from the top, ensuring equal treatment of all materials.
Achieves delicate paste particles controlled below 5 microns. External circulation also functions as a discharge pump.
Centrifugal force homogenization mechanism with multi-layer shearing (inner and outer stators and rotor), improving efficiency by 30%.
High-viscosity discharge capability with pressure up to 3 bar. Integrated CIP cleaning function shortens cleaning cycles and saves water.
Advanced PLC control with memory storage function and MES interface reservation.
Machine Detail 1

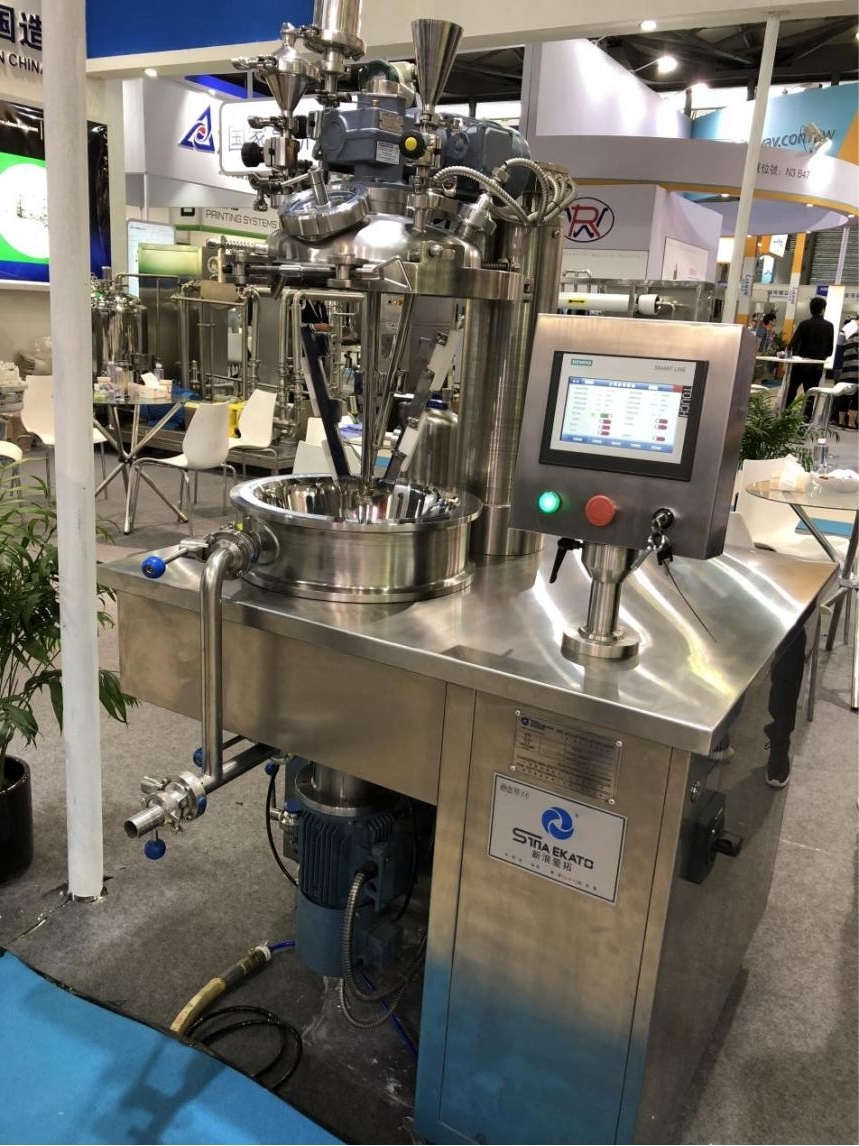

Machine Detail 2

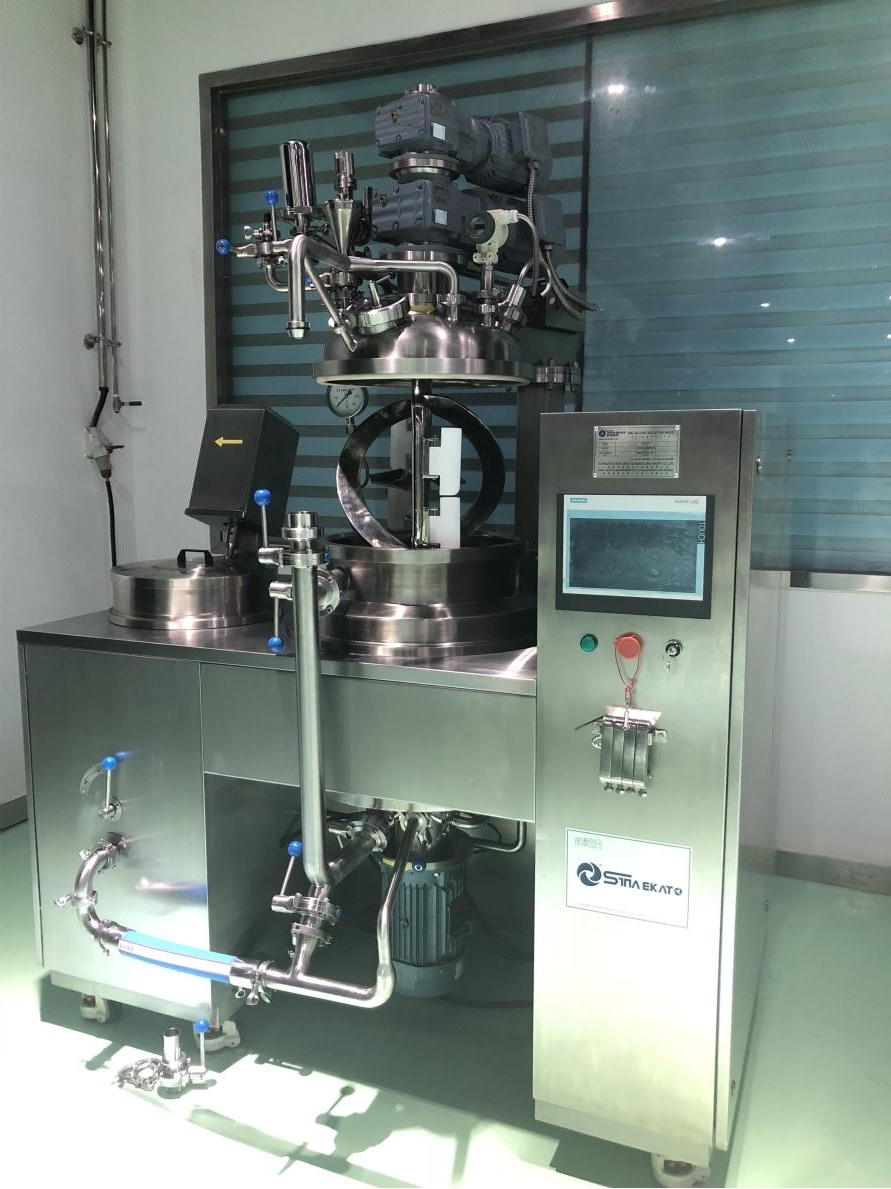

Machine Detail 3
🛠 Core Mixing & Operational Components

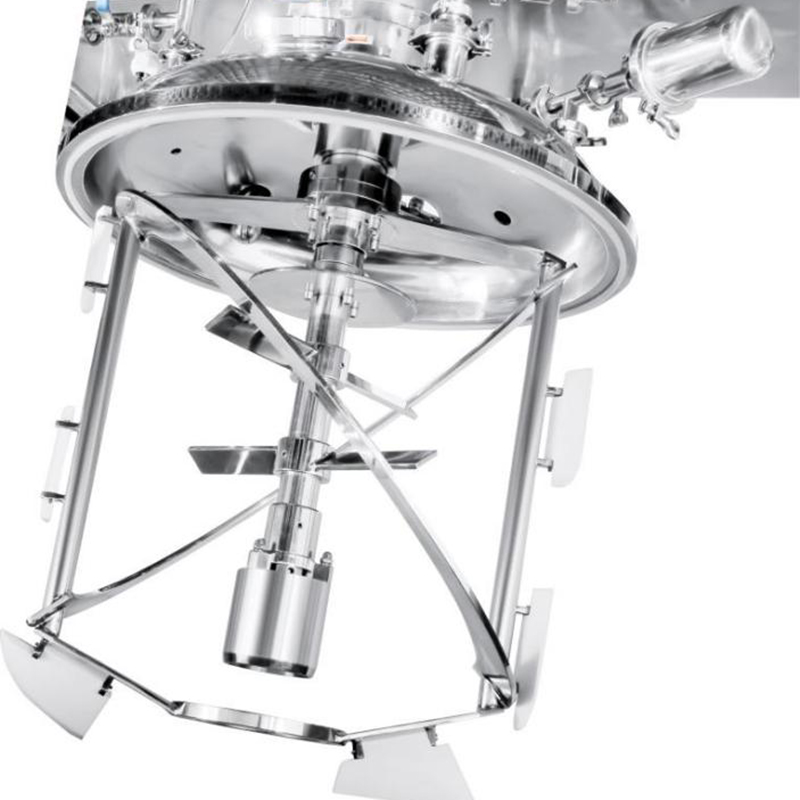

Contra-rotating slow mixing equipped with Teflon scrapers.
High-speed homogenizing turbine reaching speeds up to 3,600 rpm.
User-friendly T&S color control panel for comprehensive machine monitoring.
Mechanical lifting of the cover and vessel tilting for easy discharge of finished products.
Vacuum suction system via central bottom valves for raw materials.
Inspection window with integrated lighting to monitor mixing phases.
Optional features: Spray ball cleaning systems, production data printing, and heating via steam or electricity.

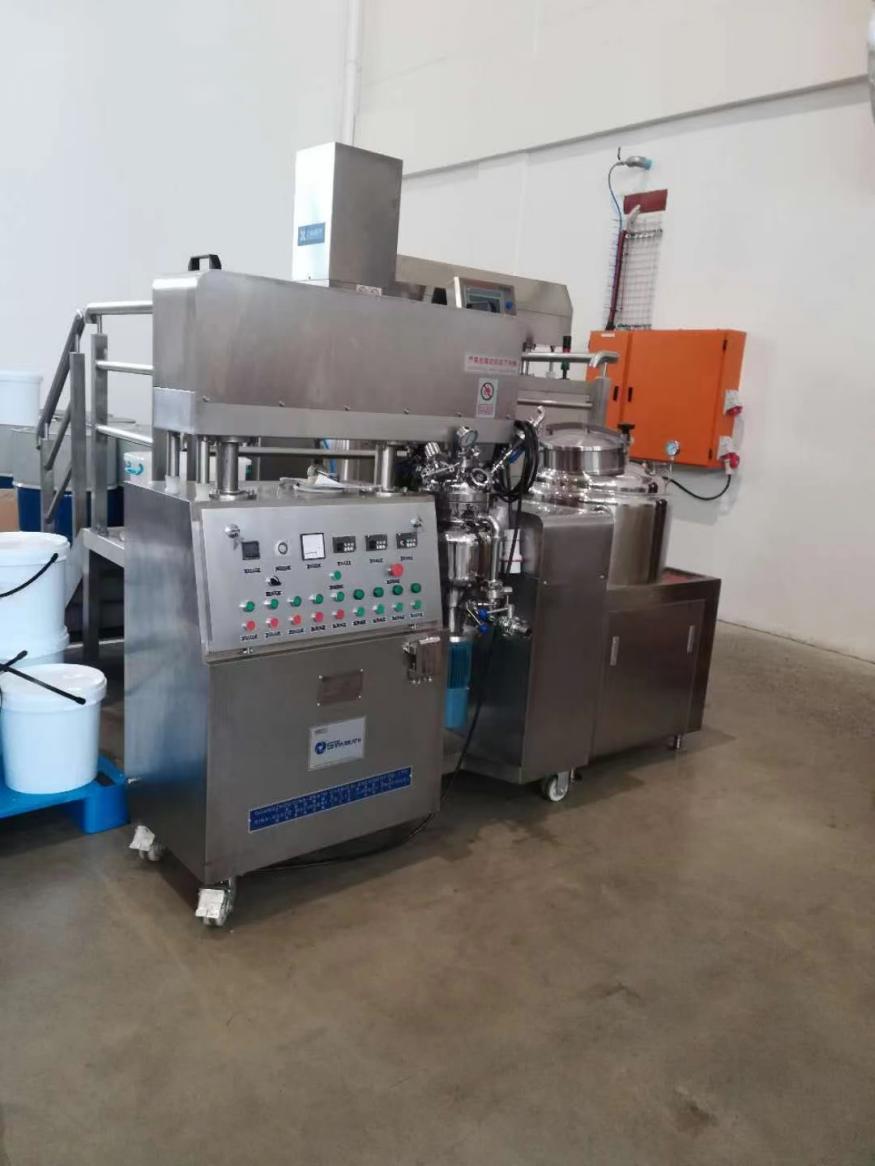

Component View
📦 Tube Filling & Sealing Solutions
Available in Semi-auto & Full-auto configurations to meet diverse production requirements.

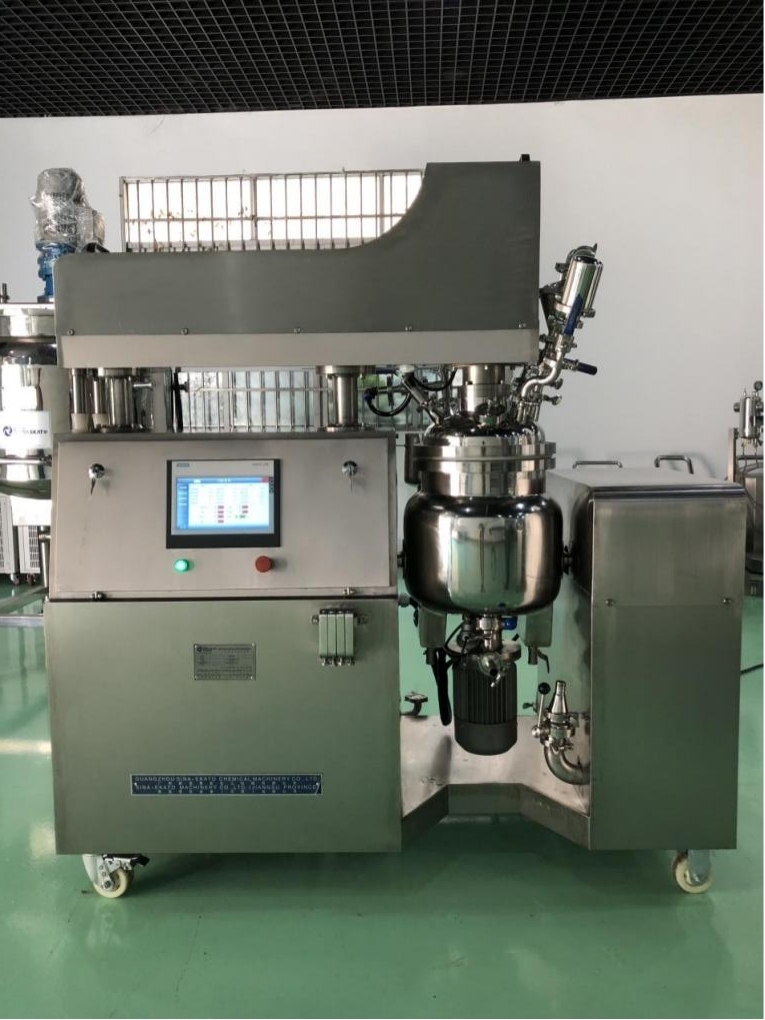

Tube Filling Machine

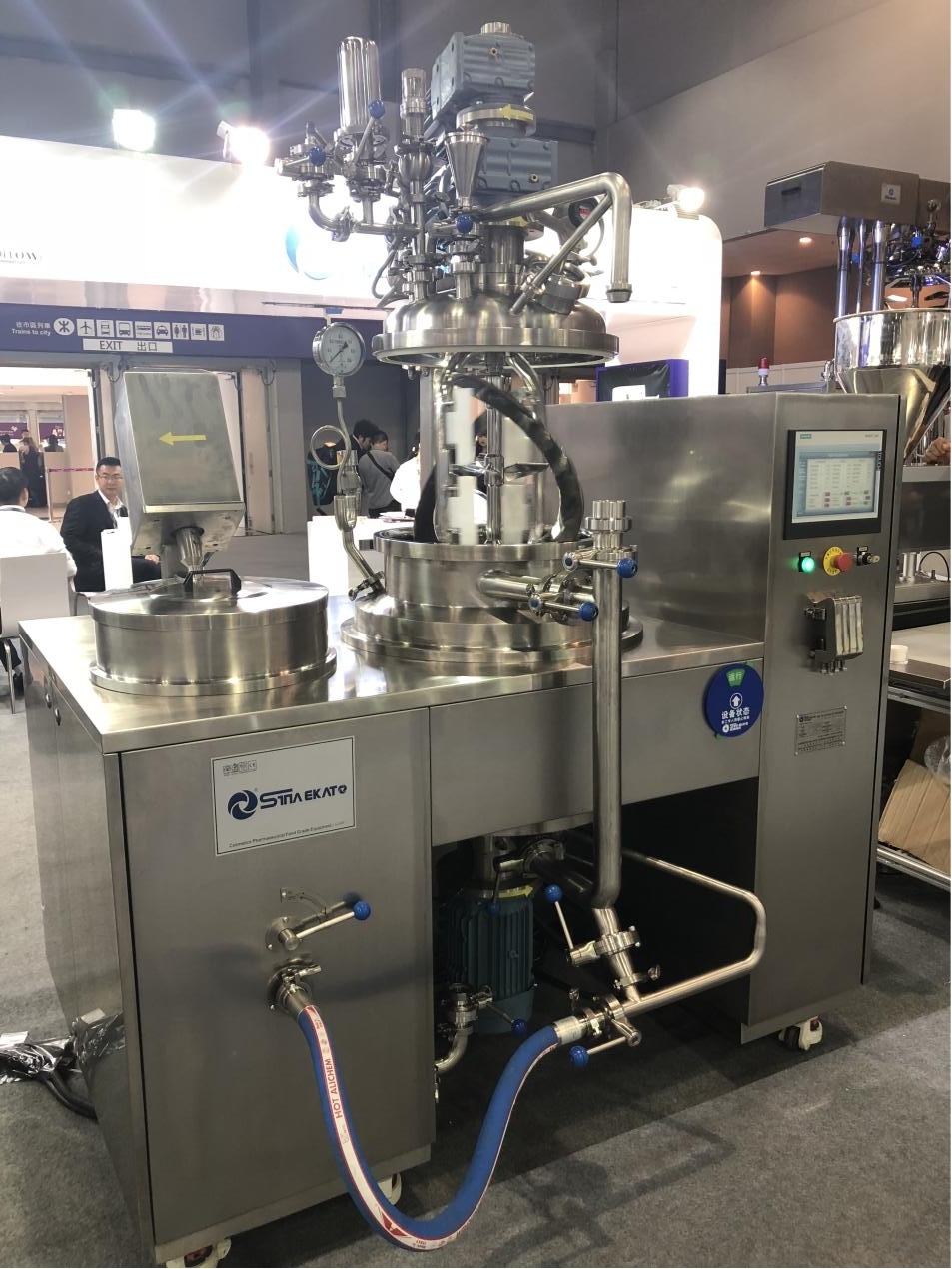

Filling Process 1

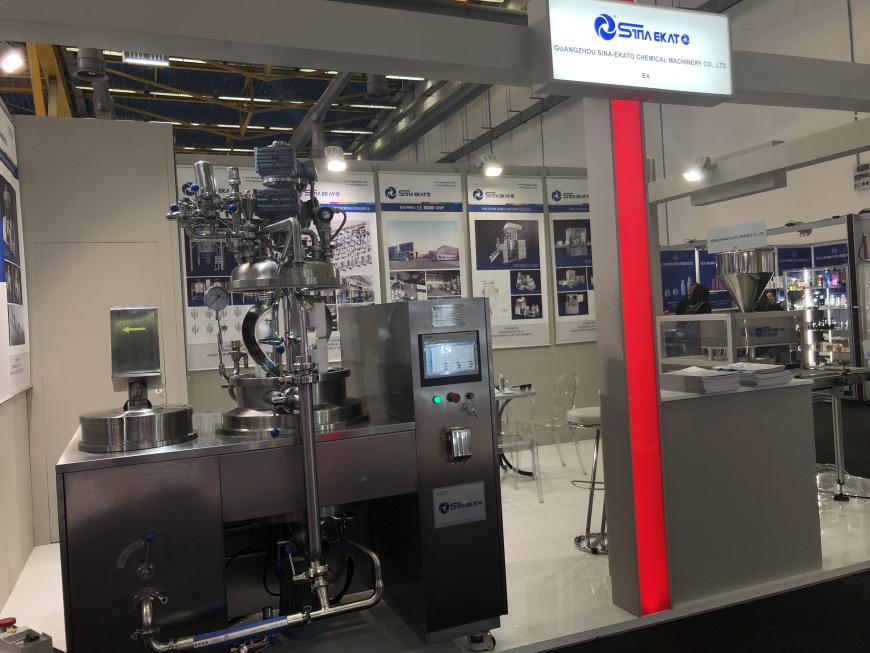

Filling Process 2
Filling Process 3

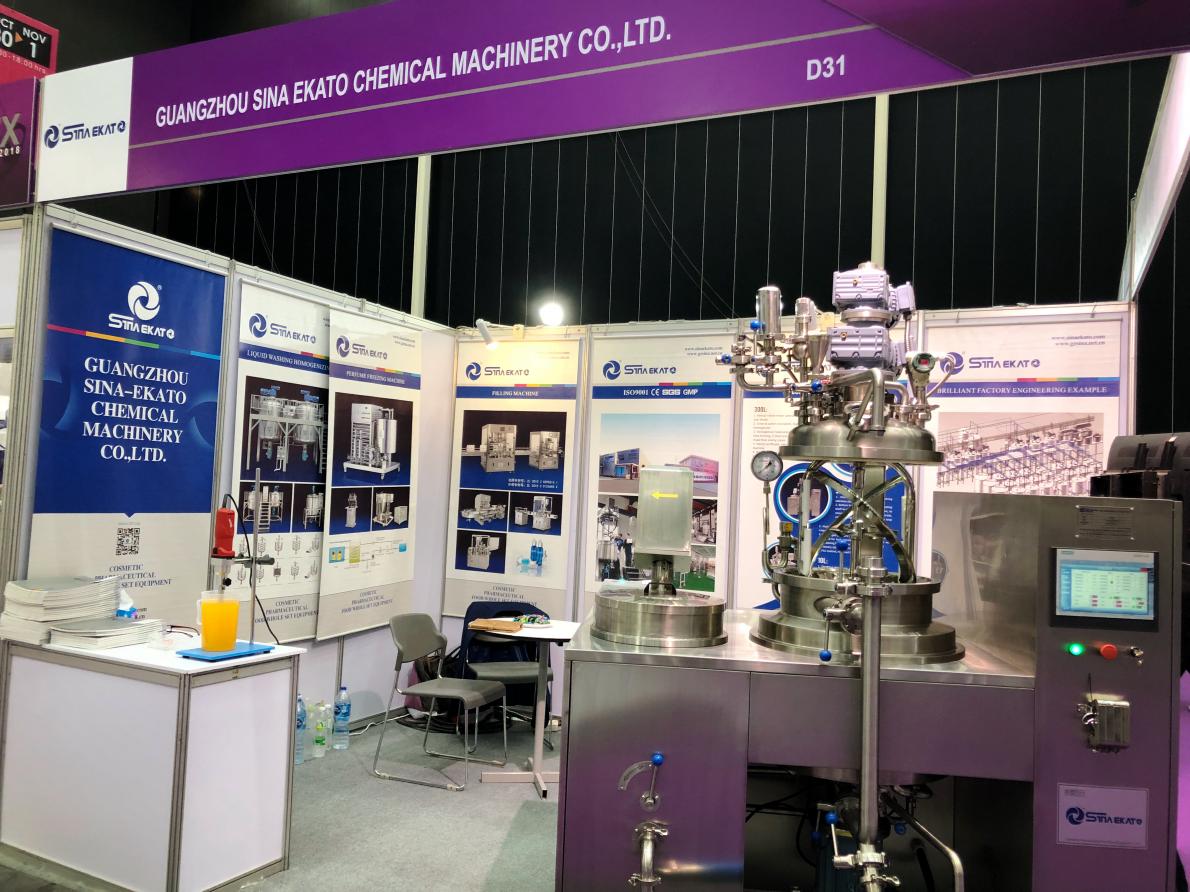

Filling Process 4
✓ Quality Assurance & Standards
Mixers equipped with German Siemens motors.
Full drawing and specification approval process before production.
Interchangeability with European-made equipment.
All welding strictly tested using liquid penetrant.
Support for minor modifications and changes during the design phase.

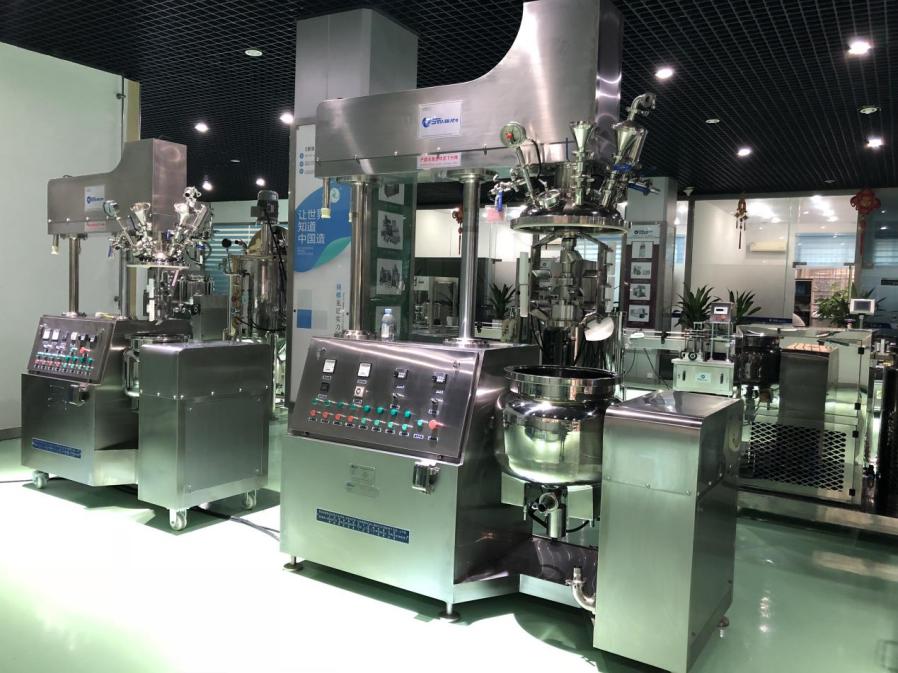

Standard Testing
Production Facility: Around 10,000 square meters production base with 150 employees.

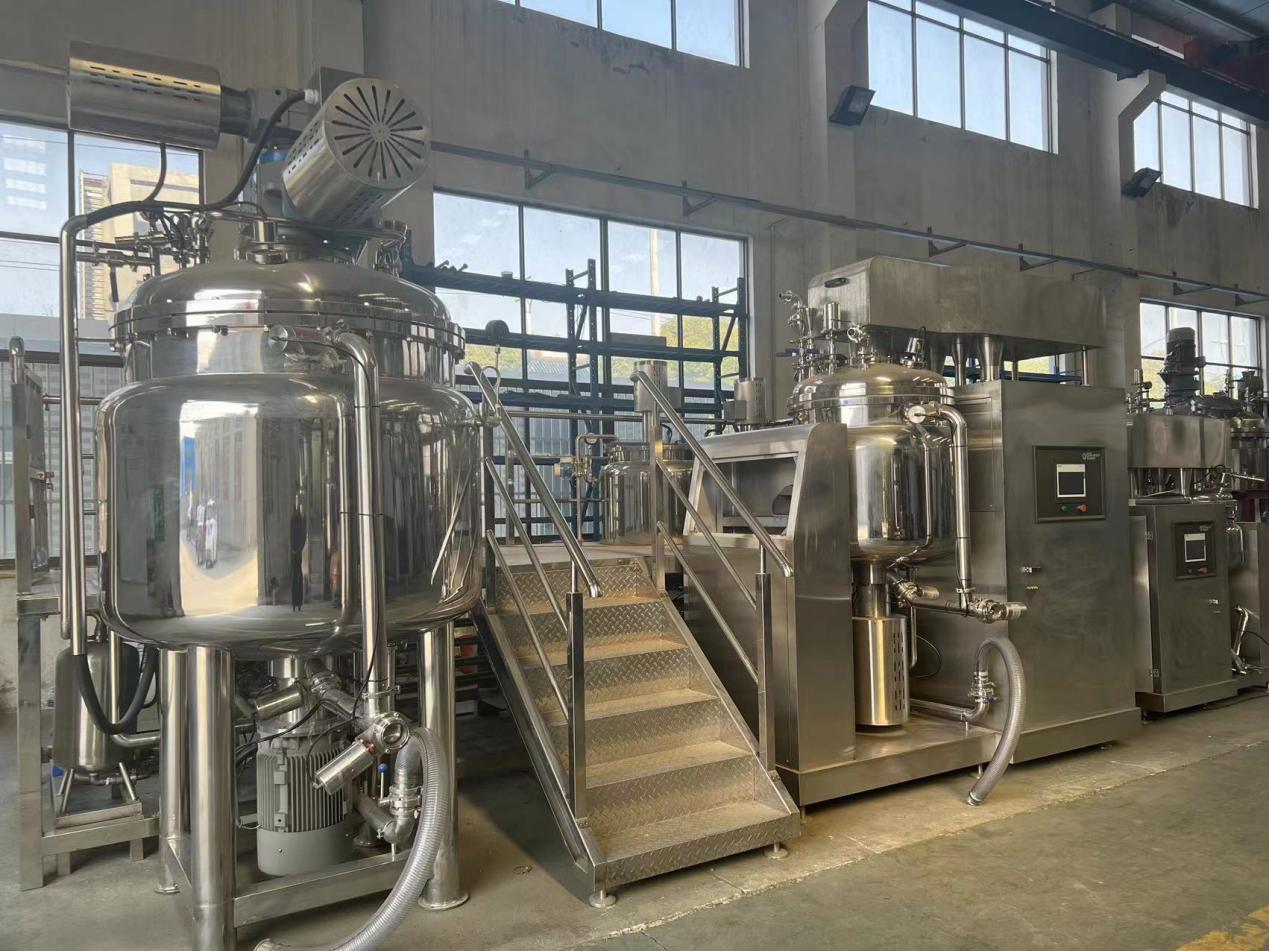

Workshop 1

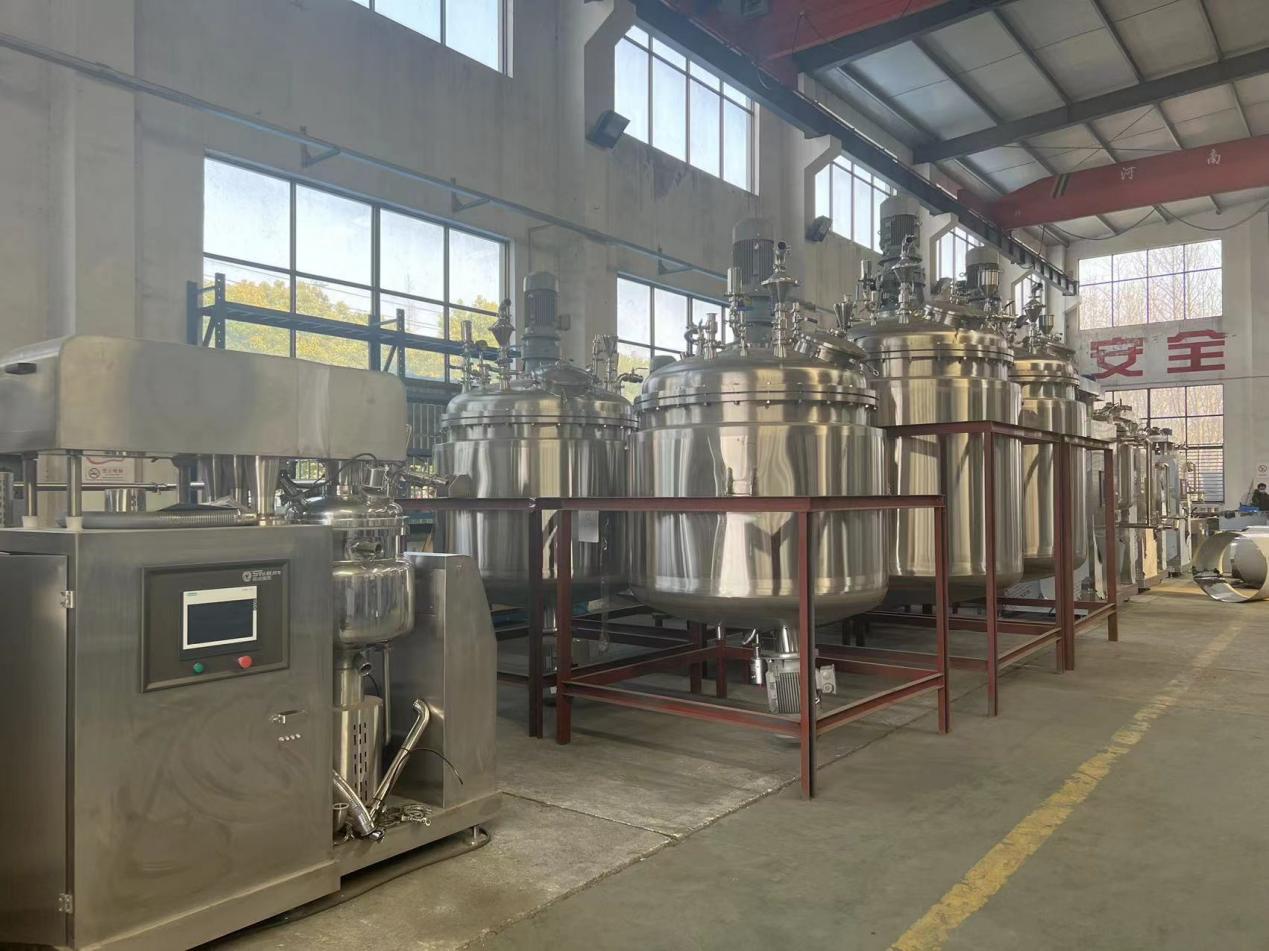

Workshop 2

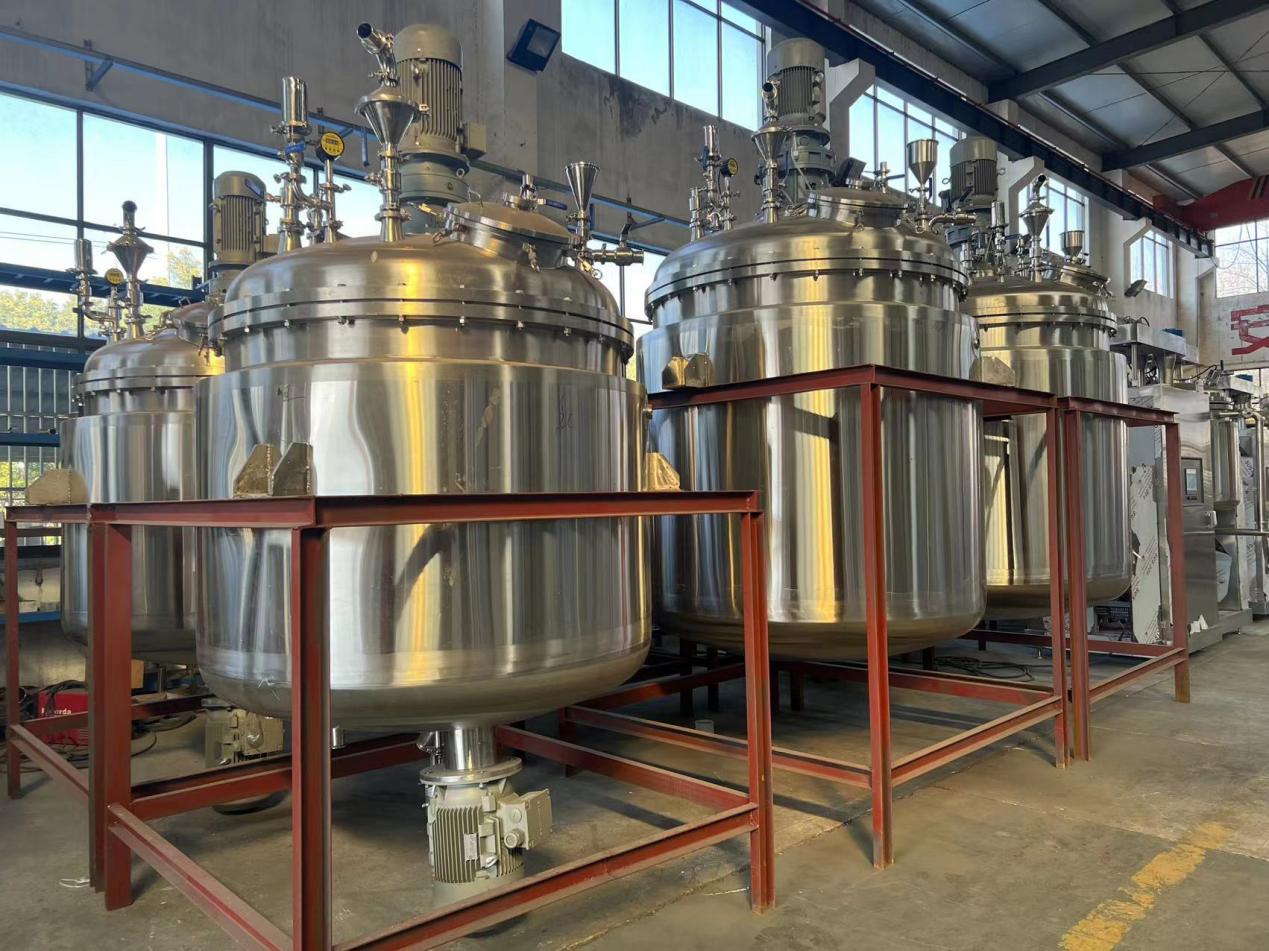

Workshop 3

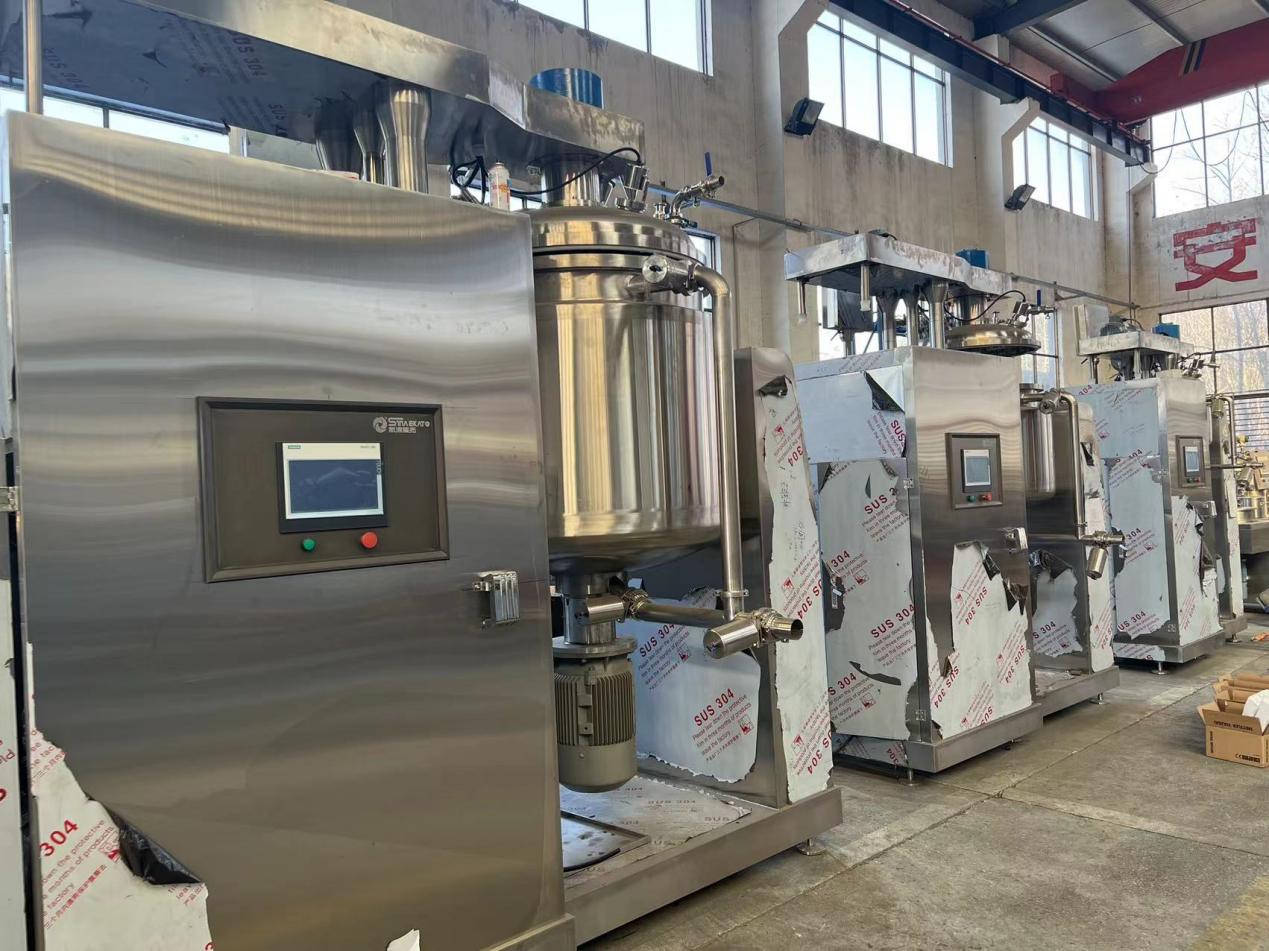

Workshop 4

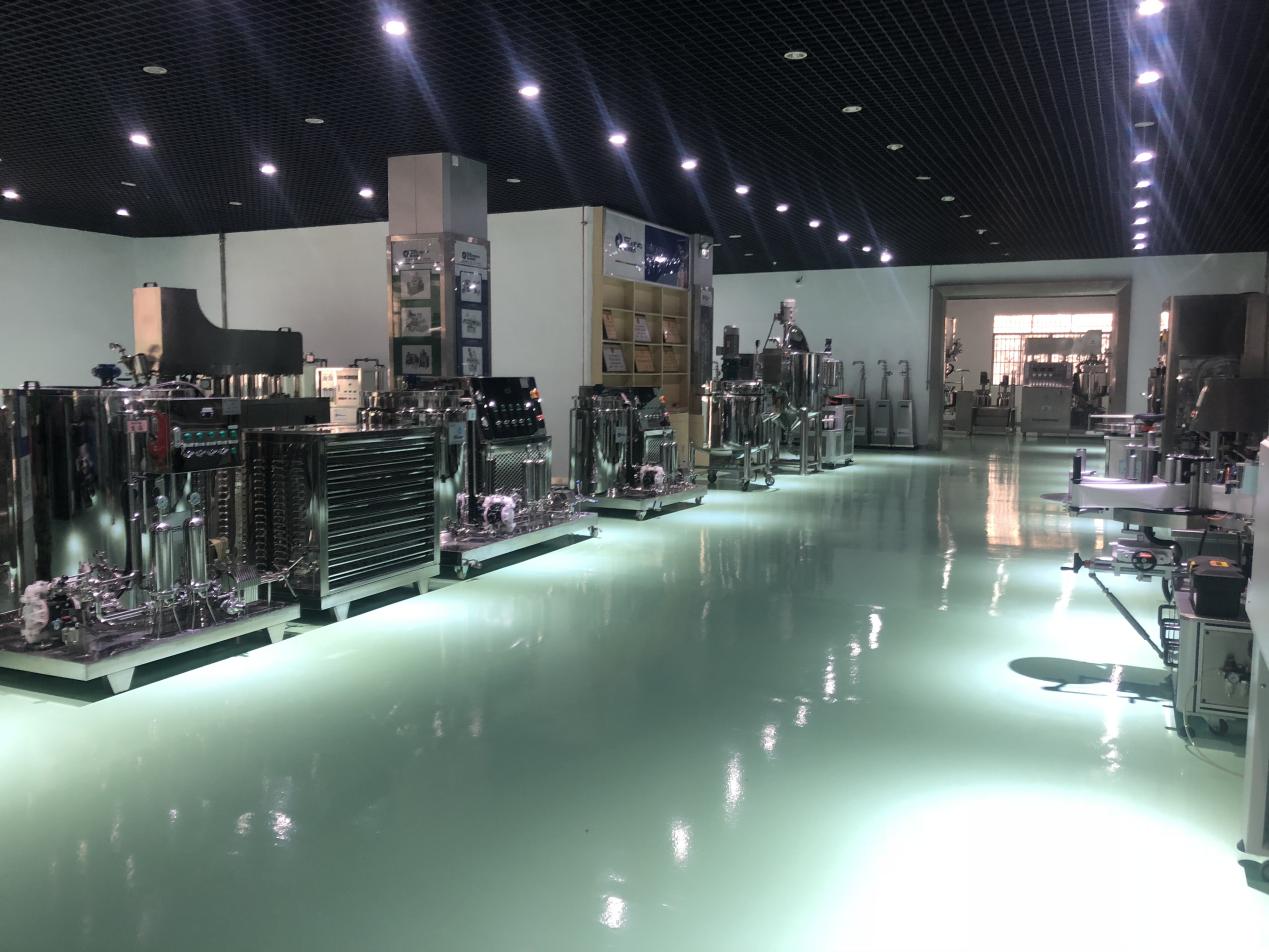

Workshop 5

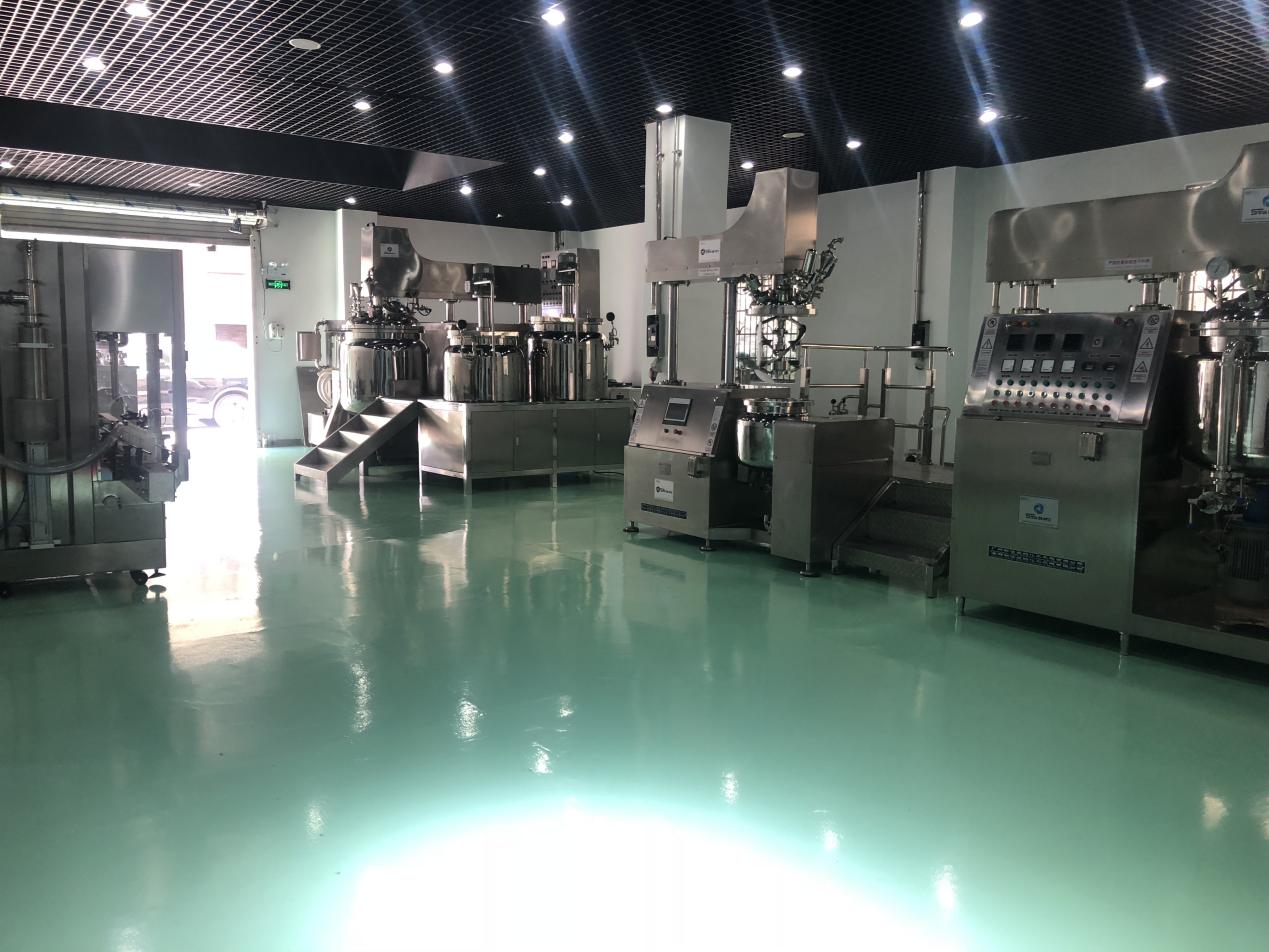

Workshop 6

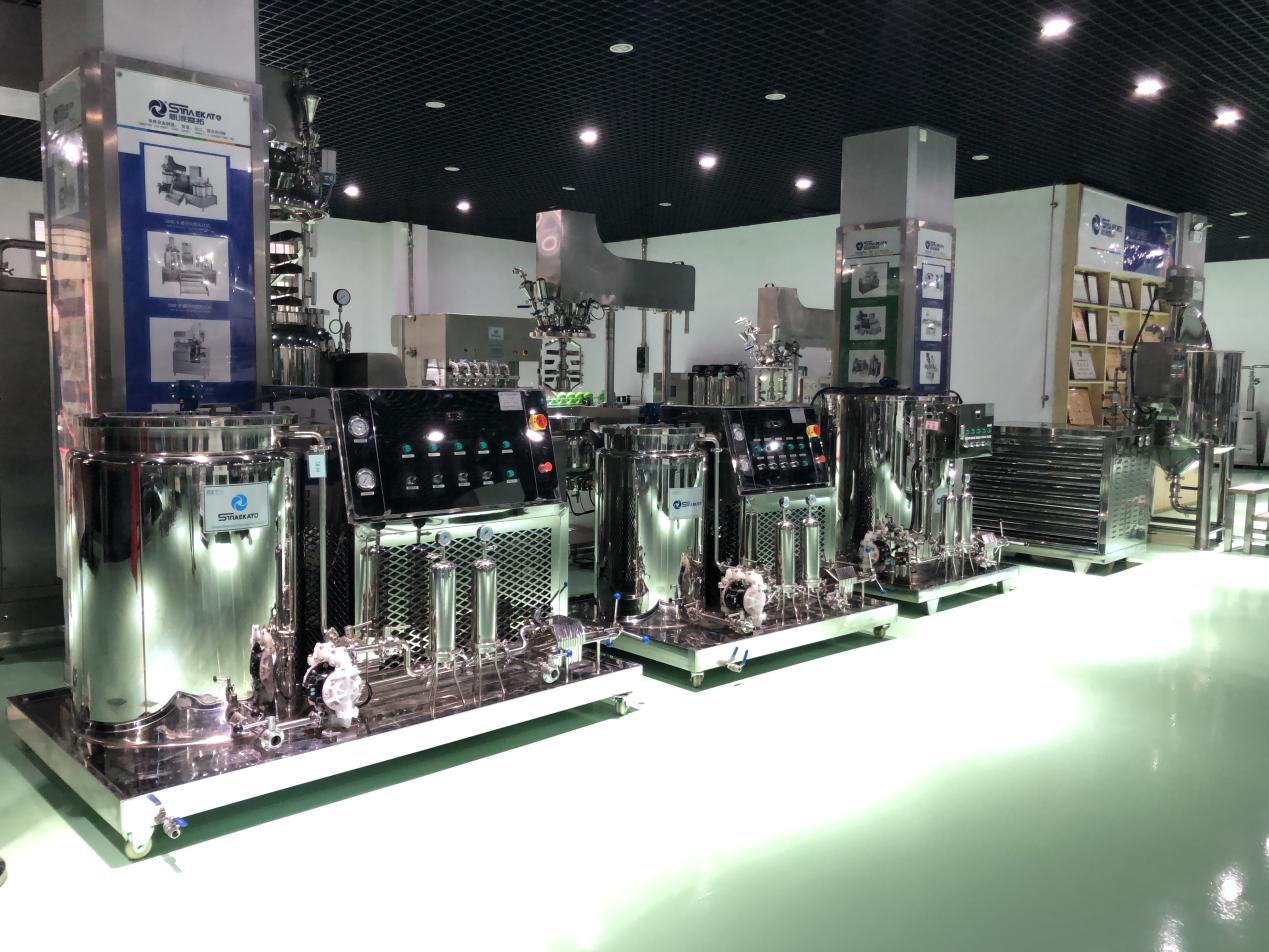

Workshop 7

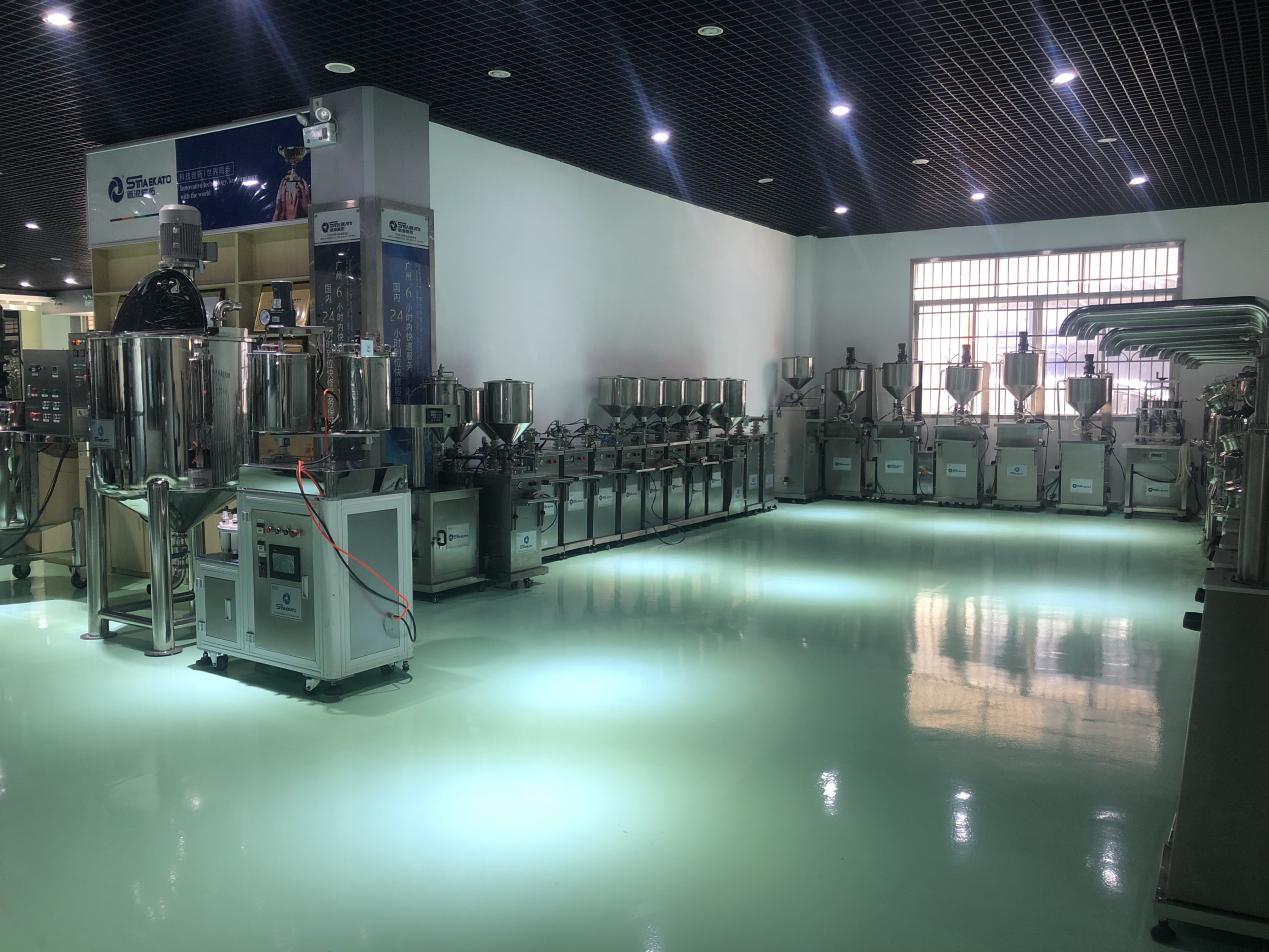

Workshop 8

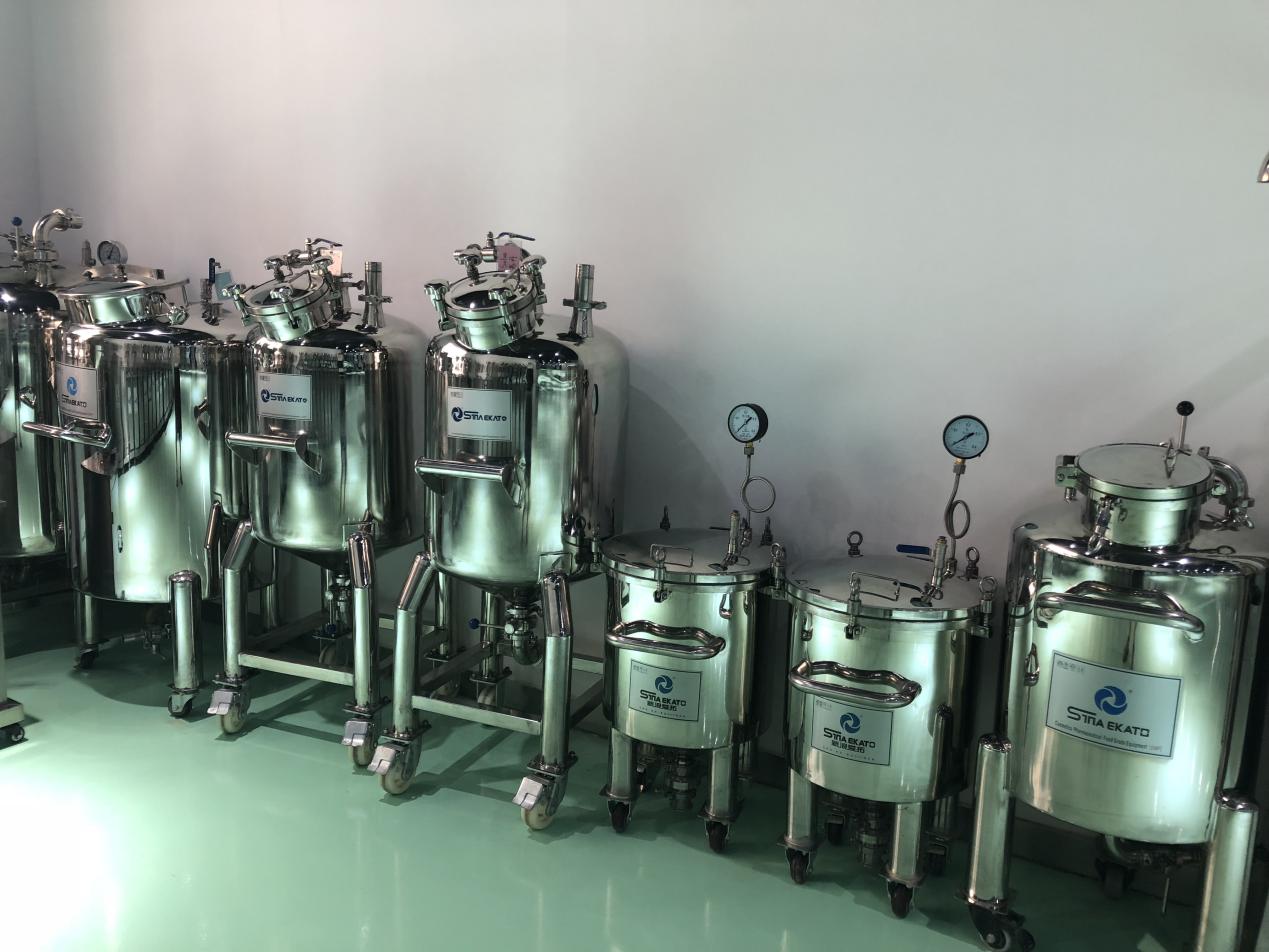

Workshop 9

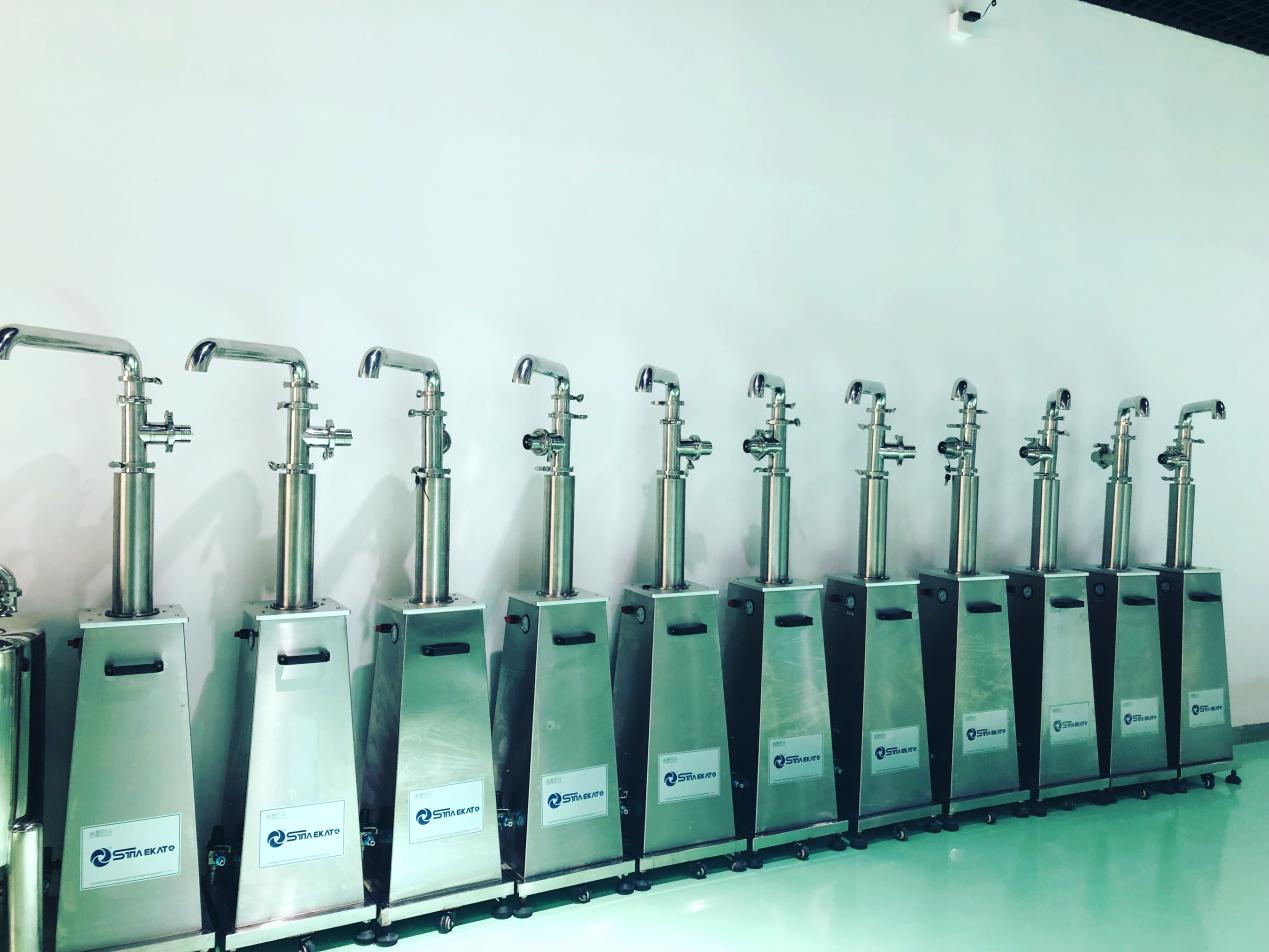

Workshop 10
🚢 Packing & Logistics

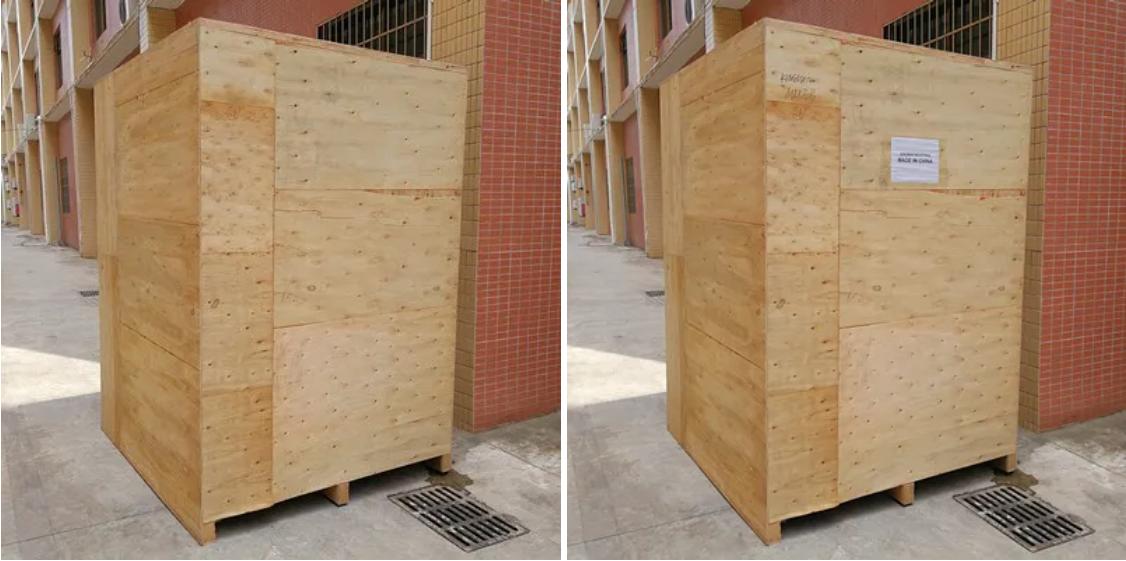

The normal package is a wooden box. For European countries, wooden boxes will be fumigated. If the container space is tight, PE film will be used for packing, or we can accommodate special customer requests.

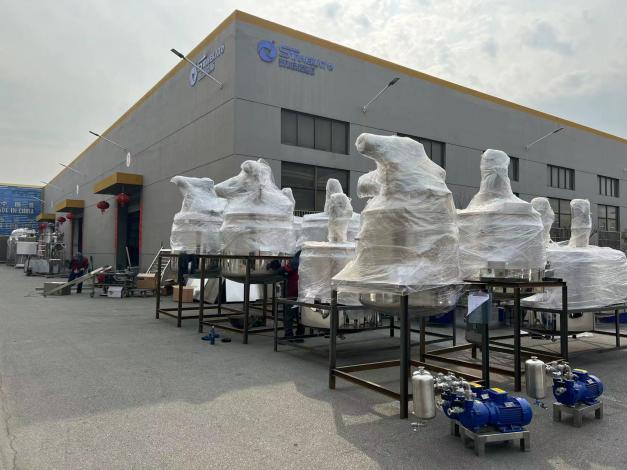

Packing 1

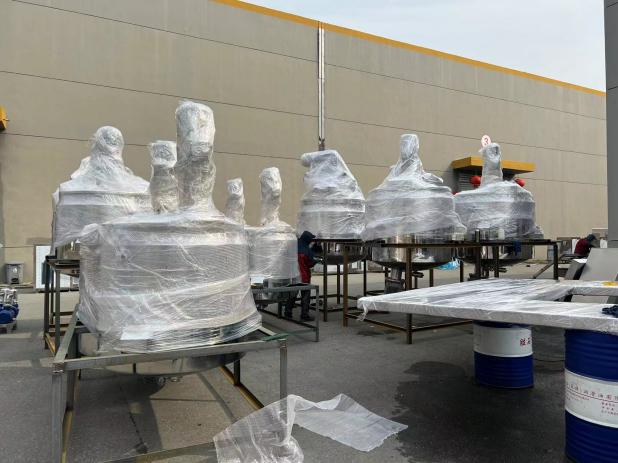

Packing 2
Packing 3
📊 Technical Specifications
Model Material Capacity Homogeneous Motor Stirring Motor Overall Dimension (mm) Total Power (KW) Limiting Vacuum (Mpa)
KV r/min KV r/min Long Wide High/Full
SME-DE10 10L 2.2 6000 0.55 0-93 1300 1000 1400/1900 10 -0.097
SME-DE20 20L 2.2 6000 0.75 0-93 1200 1200 1500/2000 10 -0.097
SME-DE30 30L 4 4500 1.1 0-83 1400 1400 1500/2000 17 -0.097
SME-DE50 50L 4 4500 1.7 0-83 1600 1100 1900/2400 10 -0.097
Frequently Asked Questions
What is the particle fineness that this machine can achieve?
The multi-layer shearing homogenization mechanism ensures that paste particles are controlled below 5 microns for a delicate finished product.
Can this machine handle high-viscosity materials?
Yes, the homogenizer generates a discharge pressure of up to 3 bar, which is specifically designed for discharging high-viscosity finished products.
Is the equipment easy to clean between batches?
The system includes a CIP (Clean-In-Place) cleaning function with optional spray balls to shorten cleaning cycles and improve efficiency.
What kind of motors and control systems are used?
We use high-quality German Siemens motors and PLC control systems that include memory storage and MES interface compatibility.
How are the machines protected during international shipping?
Machines are packed in wooden boxes, which are fumigated for European destinations. PE film is also used for added protection.
Does the machine support vacuum operation?
Yes, the equipment is designed with a limiting vacuum of -0.097 Mpa, allowing for raw materials to be sucked in under vacuum conditions.
