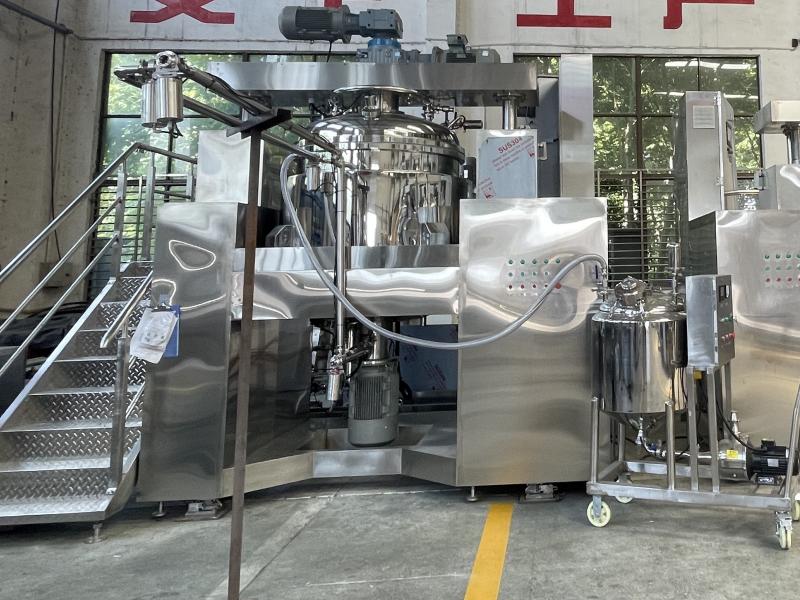

Vacuum Homogenizer Mixer Tank Features
✔
Easy emulsifying through mixing for high viscosity material.
✔
It can be used for vacuuming, heating, pressurizing and cooling process.
✔
Micro-grinding, emulsifying, agitating, homo-mixing and dispersing process can be completed in very short time.
✔
Homogenizer emulsifying function and paddle mixer can be operated separately.
✔
Adopt panel or button control. It is AUTOMATIC.
✔
360 degrees scrapping mixing agitator and high shear homogeizer mixer.
✔
300U mirror polishing, contact part is stainless steel 316L, completely meet GMP standards.
✔

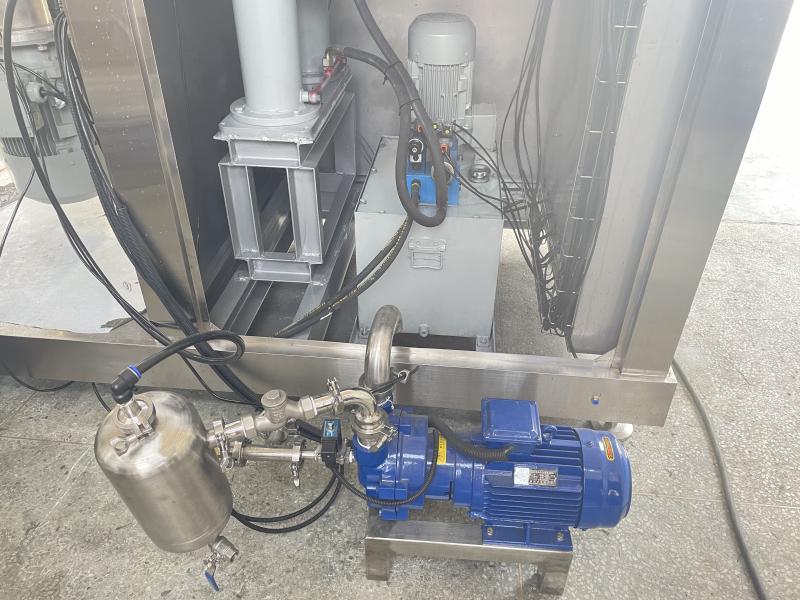

Vacuum system to suck the products into emulsifying working pot, and remove bubbles during emulslifying and mixing process.
✔
Discharge products by bottom outlet, or connect with air compressor to pressure discharge products with high viscosity.
With the support of German design center and national light industry and daily chemicals research institute, regarding senior engineers and experts as the technological core, we are a professional manufacturer of various types of cosmetic machinery and equipment. The products are applied in such industries as cosmetics, medicine, food, chemical industry, electronics, etc.
Product Display
YT-10P-5M Lipstick Freeing Tunnel
SME-65L Lipstick Machine
Lipstick Filling Machine
Reverse Osmosis Water Treatment
Available Production Lines:
- Cosmetics cream, ointment, skin care lotion, toothpaste production line
- Shampoo, liquid soap, liquid detergent, liquid wash production line
- Perfume production line
- Powder machines, lab equipment, and food/chemical machines
Stainless Steel Storage Tank & Fully automatic production line
Application Scope
| Daily Cosmetic |
| hair conditioner | facial mask | moisturizing lotion | suncream |
| skin care | shea butter | body lotion | sunscreen cream |
| cream | hair cream | cosmetic paste | BB Cream |
| lotion | face wash liquid | mascara | foundation |
| Food & Pharmaceutical |
|---|
| cheese | milk butter | ointment | ketchup |
| mustard | peanut butter | mayonnaise | wasabi |
| toothpaste | margarine | Salad dressing | sauce |
Technical Specifications
| Model |
Capacity |
Homogenizer (KW) |
Stir Motor (KW) |
Dimensions (L*W*H mm) |
Limit vacuum (Mpa) |
| SME-5 | 5L | 0.37 | 0.18 | 1260*540*1600 | -0.09 |
| SME-50 | 50L | 3 | 1.1 | 2600*2250*1950 | -0.09 |
| SME-100 | 100L | 4 | 1.5 | 2750*2380*2100 | -0.09 |
| SME-500 | 500L | 11 | 4 | 3650*3300*2850 | -0.08 |
| SME-1000 | 1000L | 15 | 5.5 | 4200*3650*3300 | -0.08 |
Professional Project Service
With many years of experience in domestic and international installation, we provide internationally top-ranking professional project installation experience and management experience. Our after-sales service personnel have practical experience in equipment use and maintenance and receive systemic trainings.
Technical Components:
- Sealed manhole: convenient to clean and maintain.
- Glass view window: check inside working situation.
- CIP system: 360 degrees rotate to spray water to clean.
- Teflon scraper: high temperature resistance, food grade.

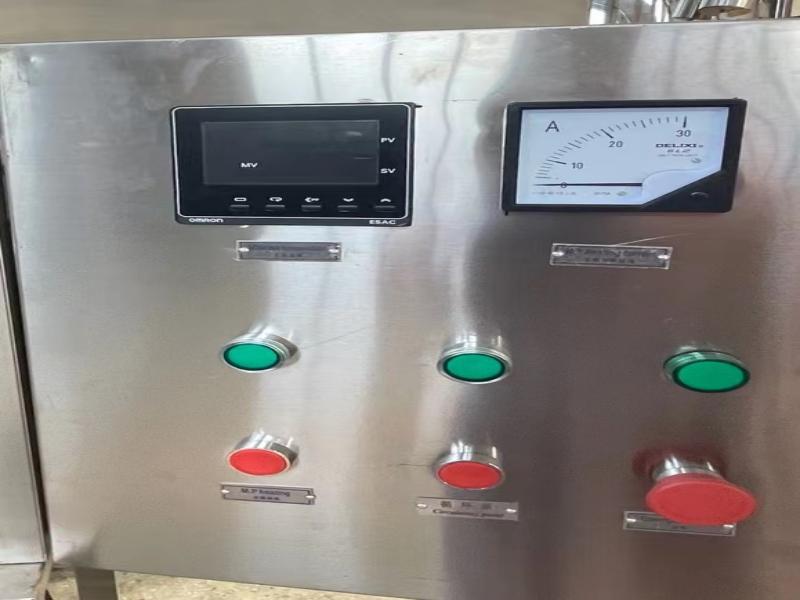

- Control panel: Heating, mixing, emulsifying settings.
Frequently Asked Questions
Are you a factory?
Yes, we are a factory with more than 20 years of manufacturing experience. Customers are warmly welcome to visit our factory to observe machine running.
How long is the machine warranty?
Our warranty is one year. After the warranty, we still offer lifetime after-sales services. If technical issues arise, we provide solutions via email or send engineers to your site.
How do you control quality before delivery?
Our quality control team tests machine performance and running speed before shipment. We can also provide testing videos for your verification if you cannot visit in person.
Are the machines difficult to operate?
Our machines feature a "fool-style" operation design, making them very easy to use. We provide instruction videos and manuals to teach you how to operate all functions.
Can you customize machines according to requests?
Yes, OEM is acceptable. Most of our machines are customized designs based on specific customer requirements or production situations.
Do you provide installation services?
Yes, if needed, our engineers are available to come to your factory to help install, test machines, and teach your staff how to use the equipment.
