| Model | Capacity | Homogenizer Motor | Stir Motor | Dimension | Total Power | Limit vacuum (Mpa) |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| KW | r/min | KW | r/min | Length(mm) | Width(mm) | Height(mm) | Steam heating | Electric heating | |||
| SME-AE5 | 5L | 0.37 | 3000 | 0.18 | 63 | 1260 | 540 | 1600/1850 | 2 | 5 | -0.09 |
| SME-AE10 | 10L | 0.75 | 3000 | 0.37 | 63 | 1300 | 580 | 1600/1950 | 3 | 6 | -0.09 |
| SME-AE50 | 50L | 3 | 3000 | 1.1 | 63 | 2600 | 2250 | 1950/2700 | 9 | 18 | -0.09 |
| SME-AE100 | 100L | 4 | 3000 | 1.5 | 63 | 2750 | 2380 | 2100/2950 | 13 | 32 | -0.09 |
| SME-AE200 | 200L | 5.5 | 3000 | 2.2 | 63 | 2750 | 2750 | 2350/3350 | 15 | 45 | -0.09 |
| SME-AE300 | 300L | 7.5 | 3000 | 2.2 | 63 | 2900 | 2850 | 2450/3500 | 18 | 49 | -0.085 |
| SME-AE500 | 500L | 11 | 3000 | 4 | 63 | 3650 | 3300 | 2850/4000 | 24 | 63 | -0.08 |
| SME-AE1000 | 1000L | 15 | 3000 | 5.5 | 63 | 4200 | 3650 | 3300/4800 | 30 | 90 | -0.08 |
| SME-AE2000 | 2000L | 15 | 3000 | 7.5 | 63 | 4850 | 4300 | 3800/5400 | 40 | _ | -0.08 |

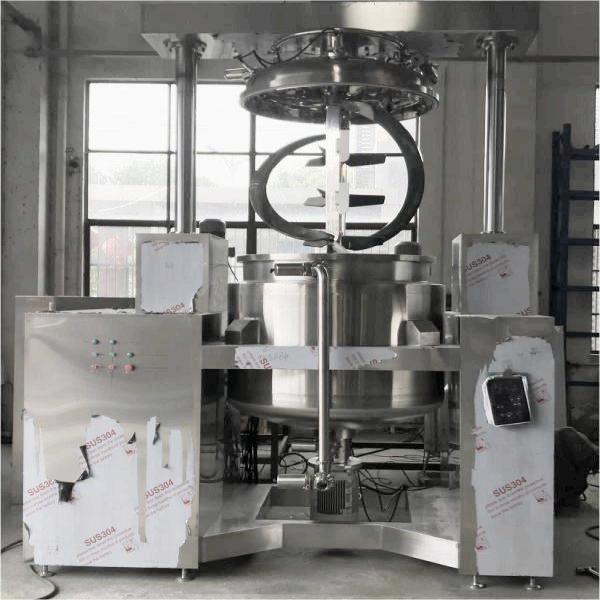

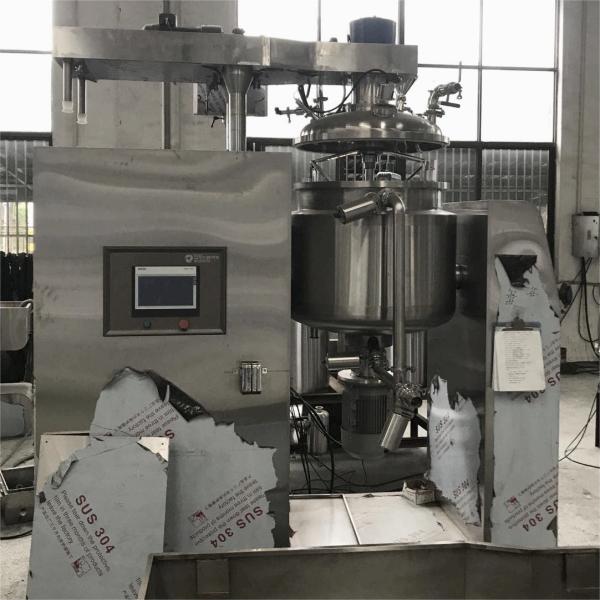

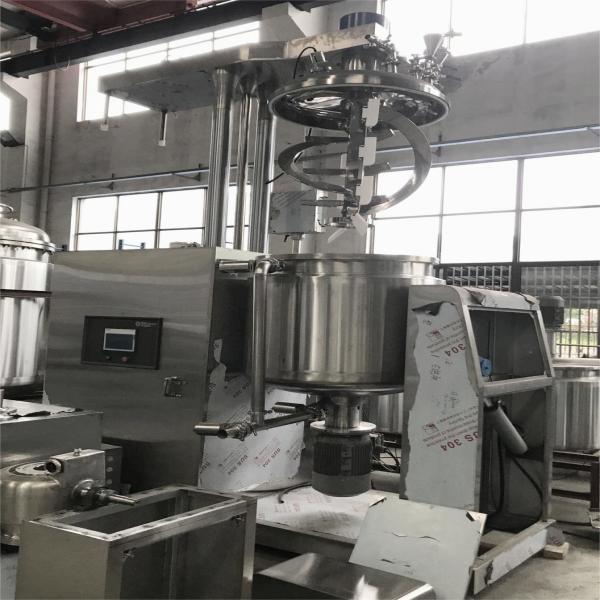

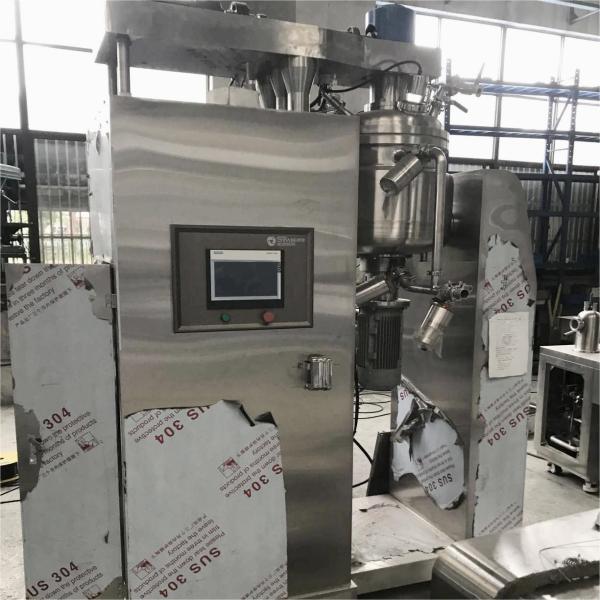

It is a comprehensive multi-functional industrial mixing system designed for producing viscous emulsions, dispersions, and suspensions in the cosmetic, pharmaceutical, food, and chemical industries.
The bottom high-shear homogenizer breaks down materials under high speed (up to 3000-4200 r/min), while the inner circulation system transfers the product back through the mixing chamber repeatedly, ensuring thorough shearing and particle reduction down to 0.2-5 µm.
Yes. The system utilizes negative vacuum pressure to eliminate air bubbles and prevent outside dust or contamination. It maintains high-precision temperature controls and is equipped with mechanical seals designed for sanitary environments.
The pot is manufactured with a three-layer stainless steel jacket that can support steam heating or electric heating options. The same jacket structure can also be used to pass cooling water for quick temperature adjustments.
Absolutely. The main tanks, piping, and contact parts are made of high-quality stainless steel with precise mirror polishing, which conforms fully to standard sanitary regulations and international GMP guidelines.
