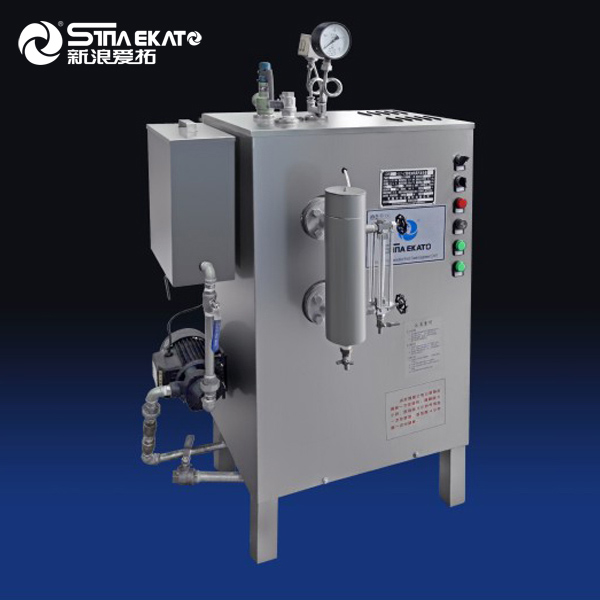

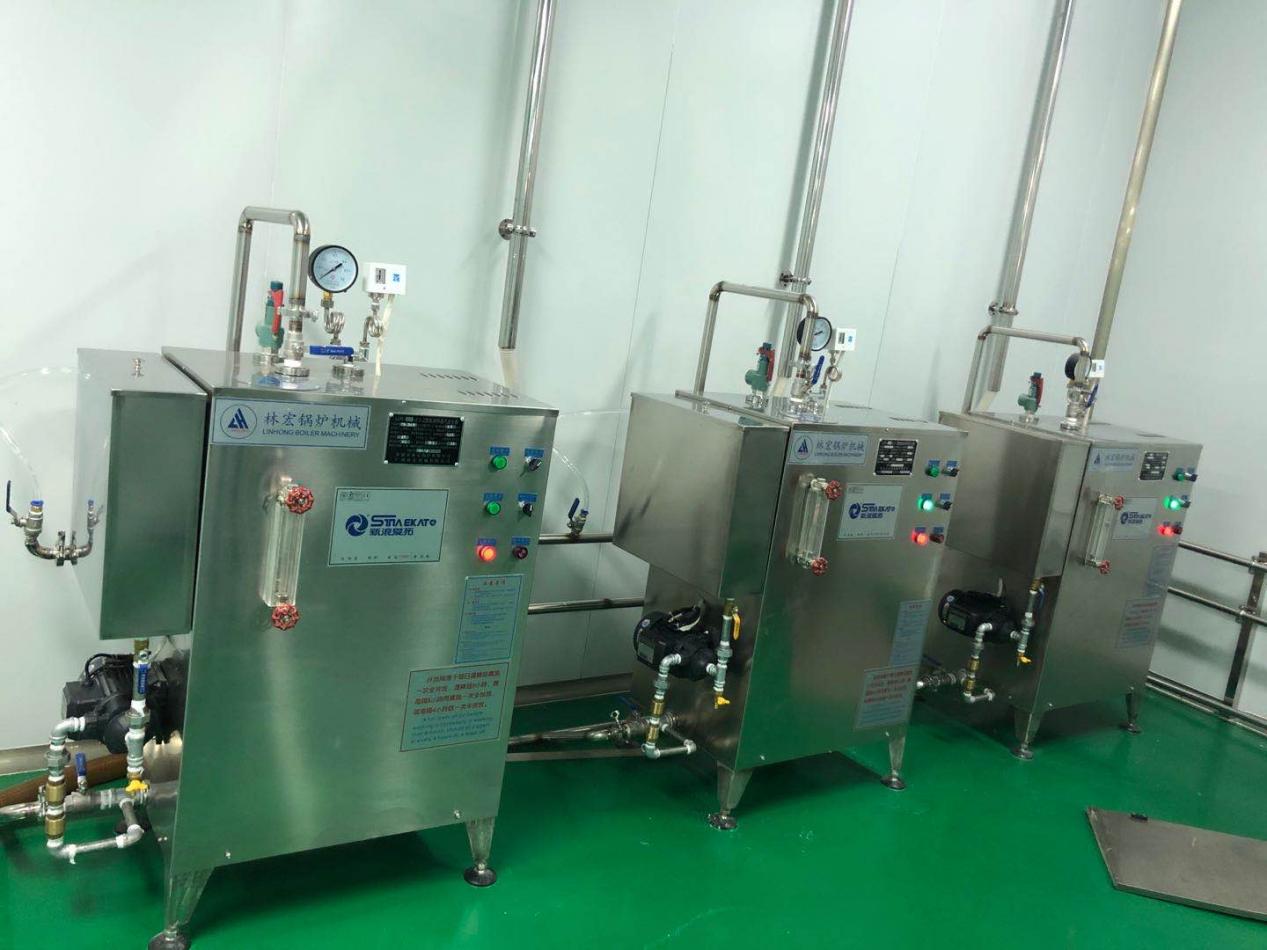

GL electric generator is designed to boil water in the container through an electric heating tube, effectively generating steam and conveying it into the steam cabinet.
| Power (Kw) | Rated Steam Capacity (Kg/h) | Rated Steam Pressure (Mpa) | Voltage (V) | Dimension (cm) |
| 4 | 6 | 0.4-0.7 | 220/380 | 48x32x60 |
| 6 | 8 | 0.4-0.7 | 220/380 | 50x35x68 |
| 9 | 12 | 0.4-0.7 | 220/380 | 55x35x80 |
| 12 | 16 | 0.4-0.7 | 380 | 55x38x80 |
| 18 | 24 | 0.4-0.7 | 380 | 58x45x110 |
| 24 | 32 | 0.4-0.7 | 380 | 58x45x110 |
| 36 | 50 | 0.4-0.7 | 380 | 70x50x130 |
| 48 | 65 | 0.4-0.7 | 380 | 70x50x130 |
| 60 | 85 | 0.4-0.7 | 380 | 80x60x145 |
| 72 | 108 | 0.4-0.7 | 380 | 85x70x145 |

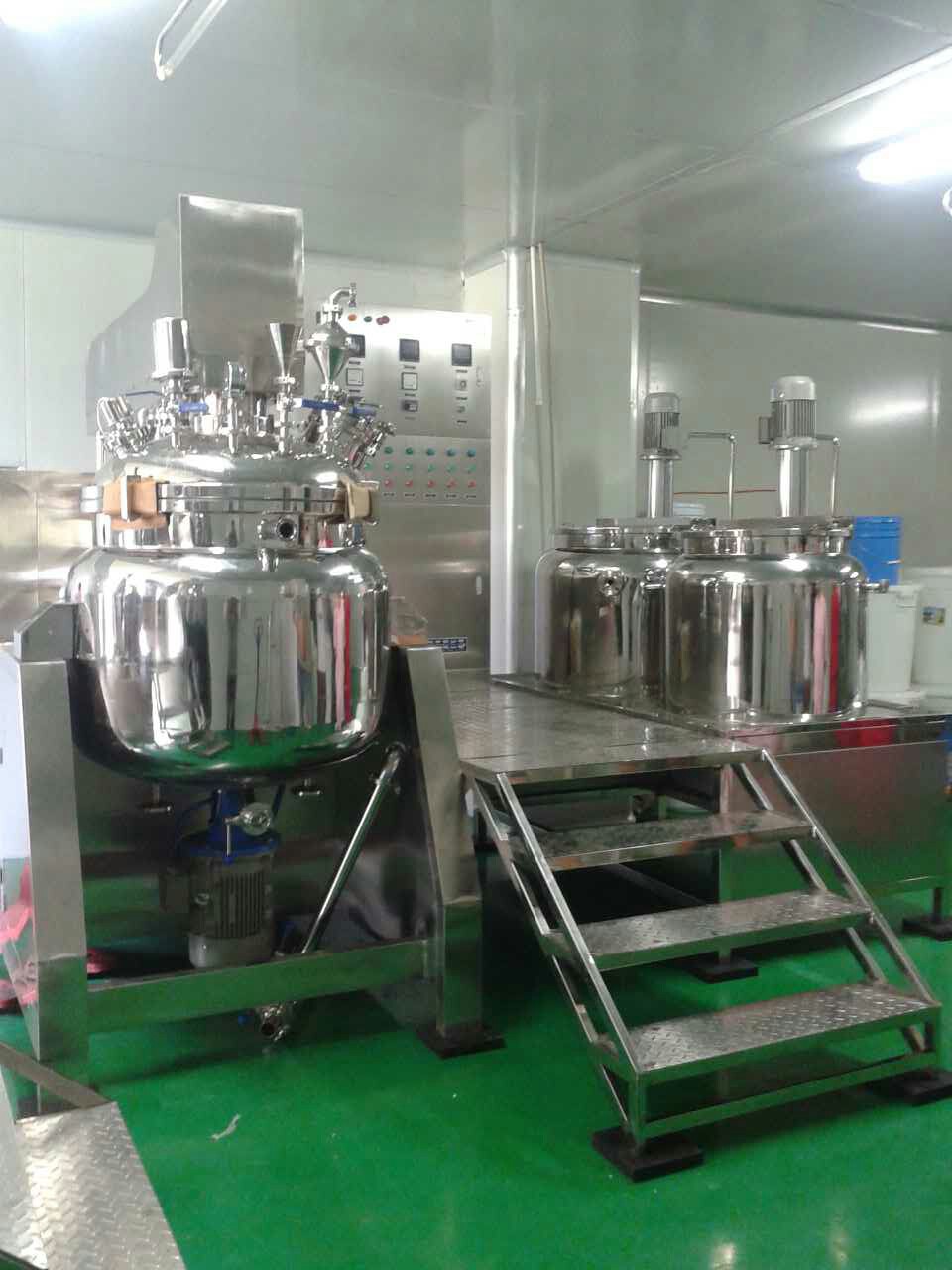

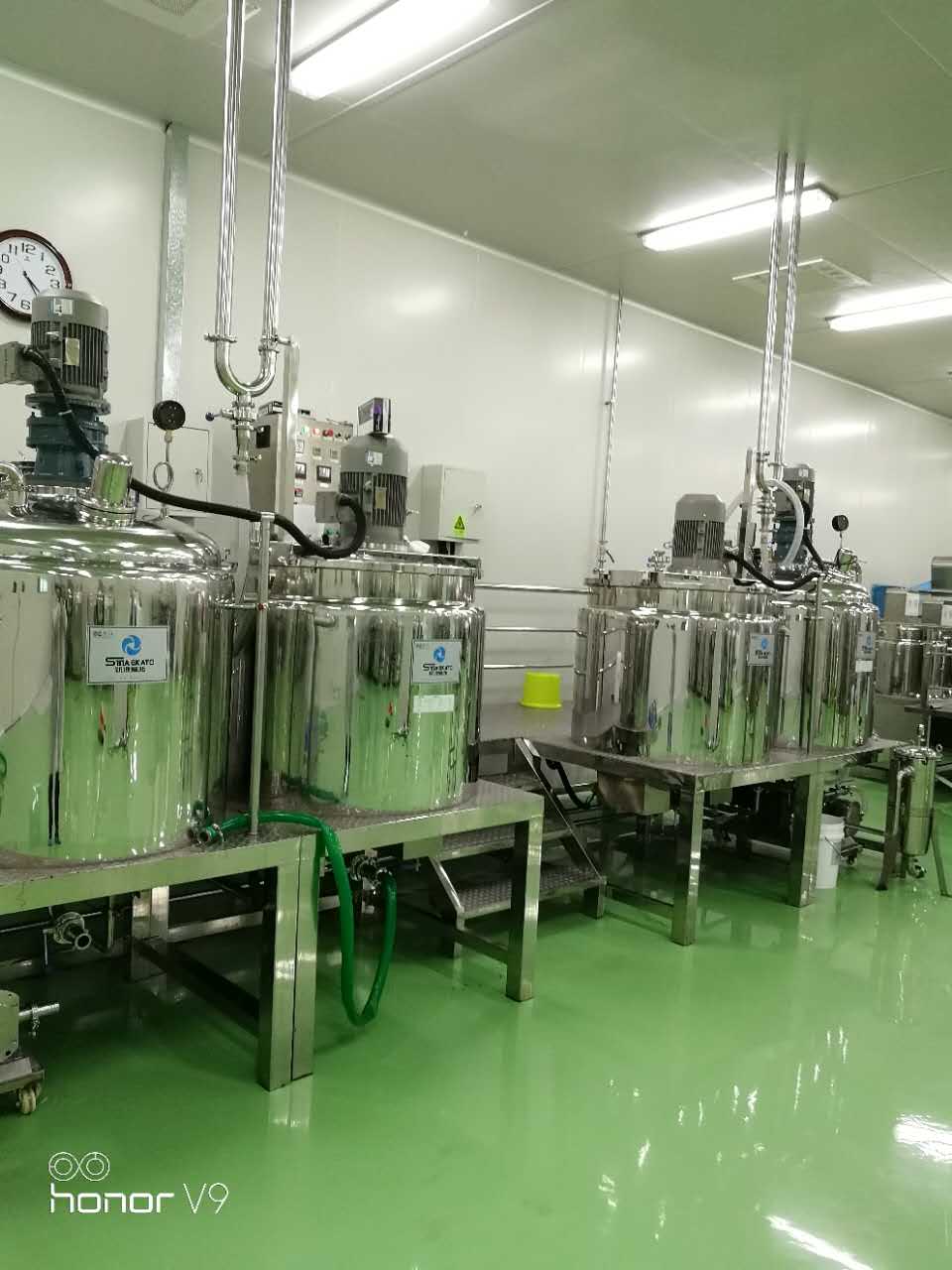

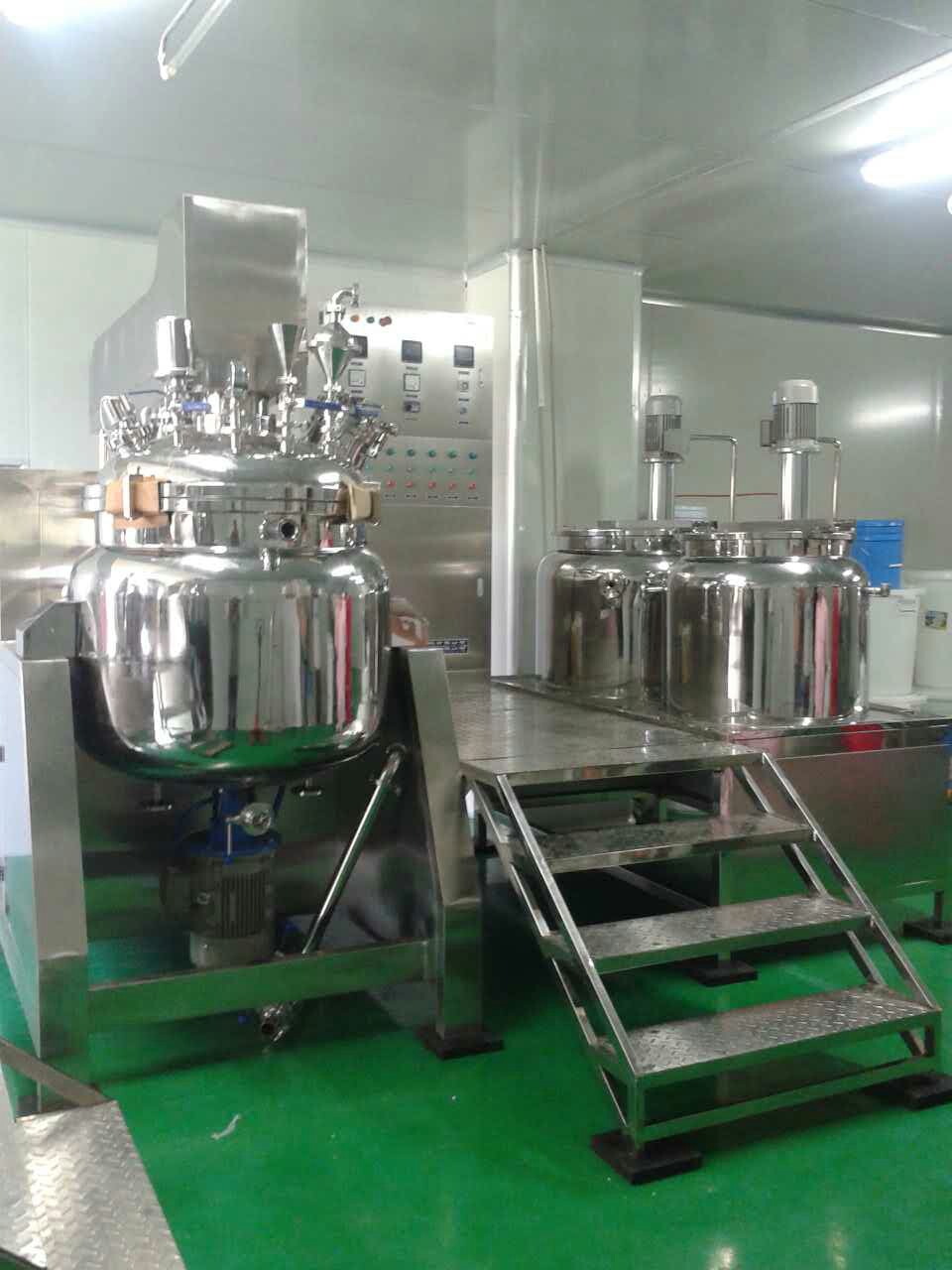

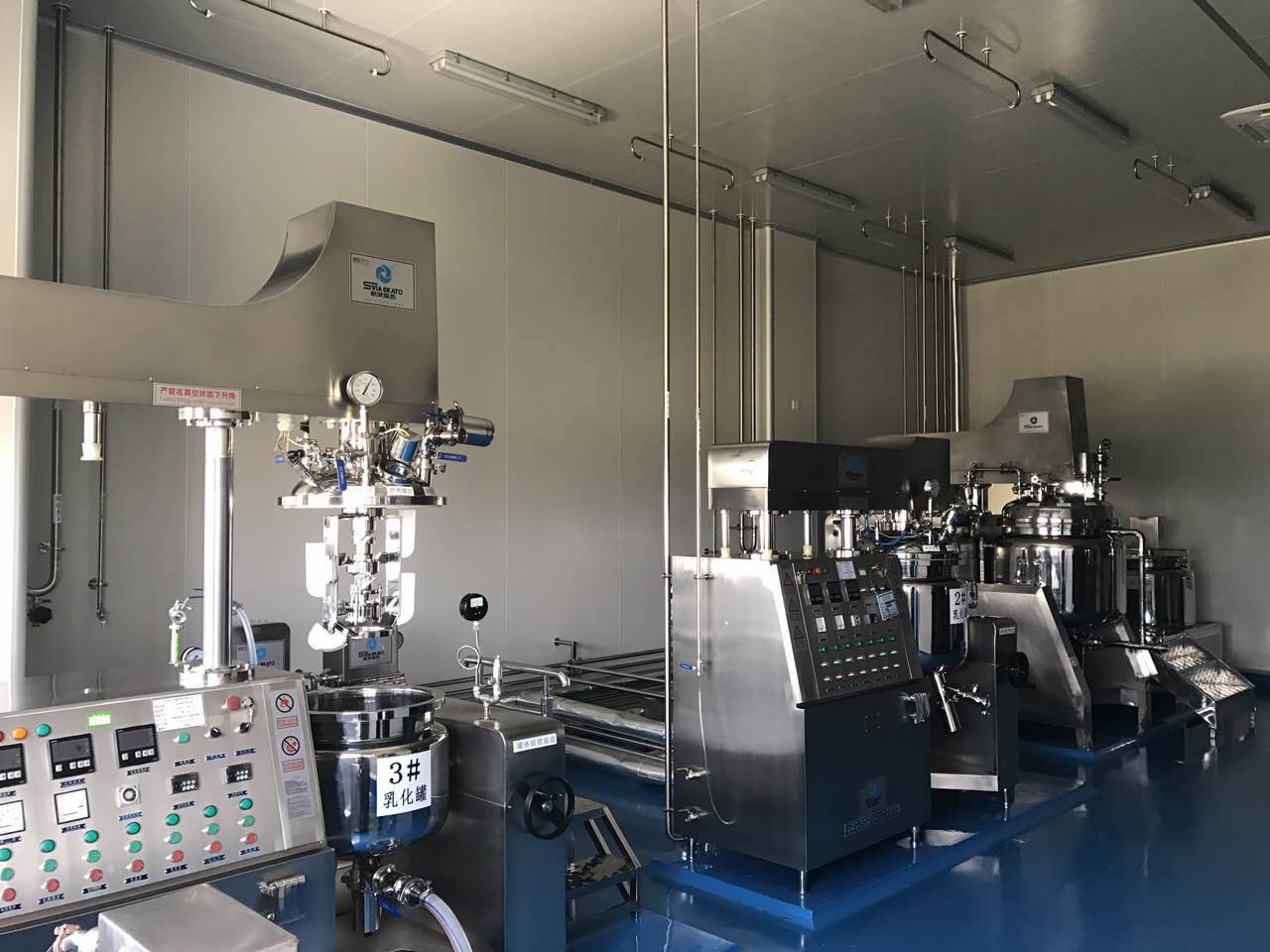

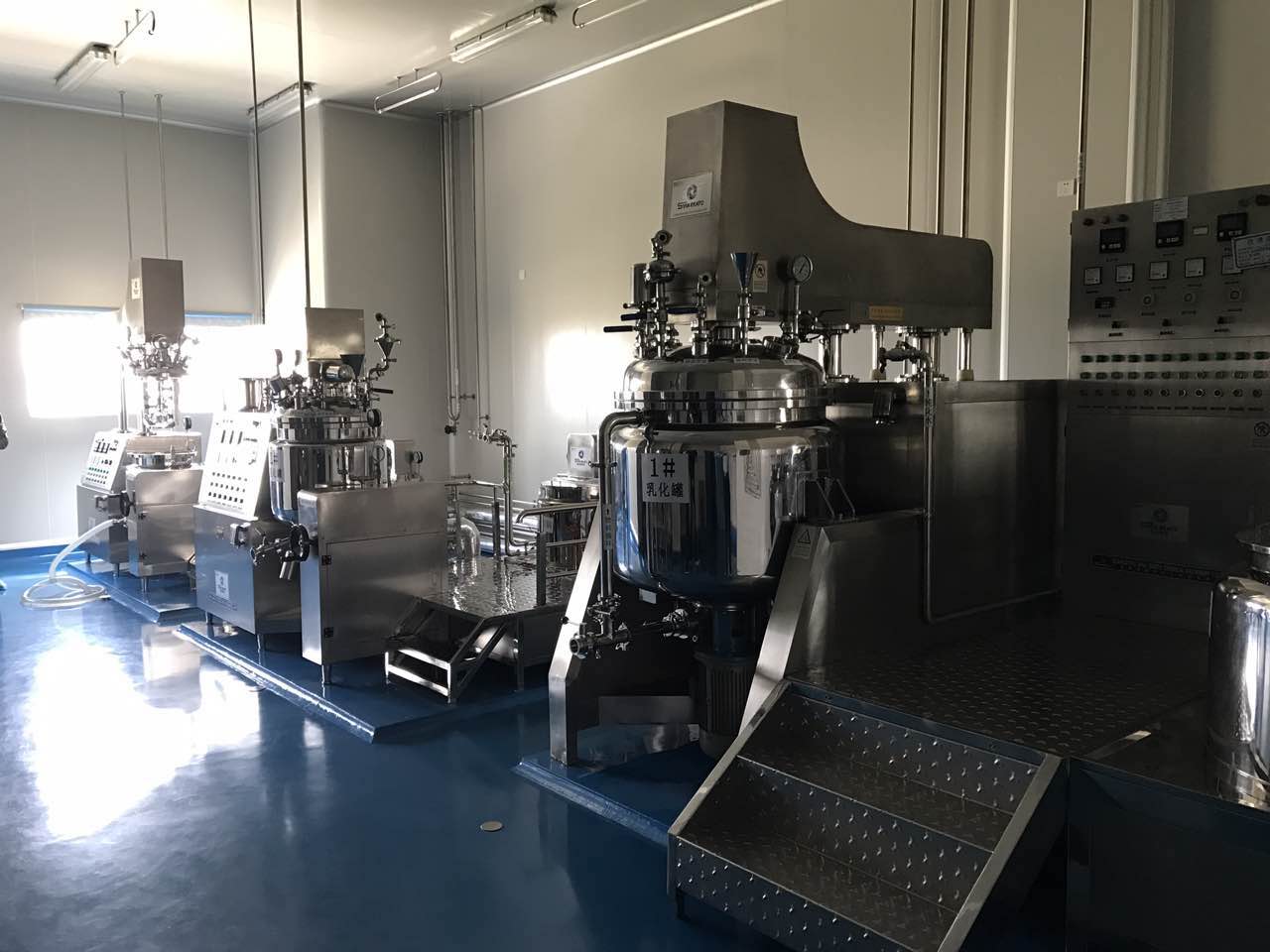

All these mixers heating process use Steam Generator to provide consistent heating.
A steam generator, commonly known as a boiler, is a mechanical device that utilizes heat energy from fuel or other sources to convert water into steam. The system includes two primary components: the boiler and the pot. The excellent insulated design improves energy efficiency and ensures safe operation. This stainless steel auto steam generator is also suitable for sauna steam baths, promoting well-being and a total body experience.
