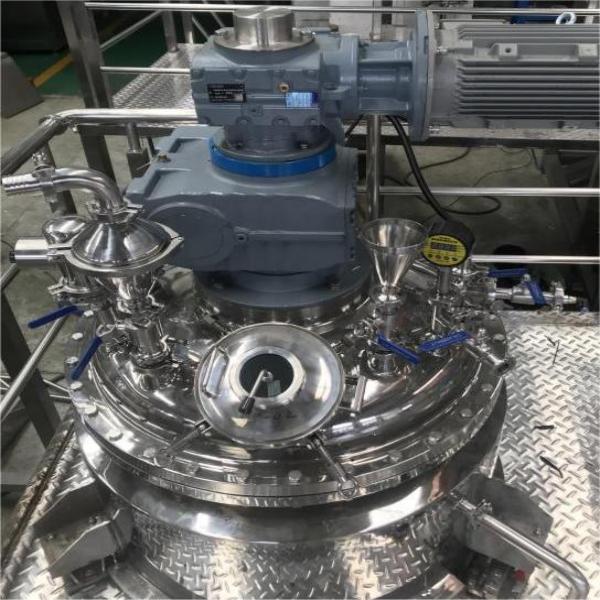

CE Certification Fixed Type Vacuum Emulsifying Mixer Face Body Cream Lotion Homogenizing Machine Manufacturers, Factory
CE Certification Fixed Type Vacuum Emulsifying Mixer Face Body Cream Lotion Homogenizing Machine Manufacturers, Factory
CE Certification Fixed Type Vacuum Emulsifying Mixer Face Body Cream Lotion Homogenizing Machine Manufacturers, Factory
1 / 3
CE Certification Fixed Type Vacuum Emulsifying Mixer Face Body Cream Lotion Homogenizing Machine Manufacturers, Factory
CE Certification Fixed Type Vacuum Emulsifying Mixer Face Body Cream Lotion Homogenizing Machine Manufacturers, Factory
CE Certification Fixed Type Vacuum Emulsifying Mixer Face Body Cream Lotion Homogenizing Machine Manufacturers, Factory

CE Certification Fixed Type Vacuum Emulsifying Mixer Face Body Cream Lotion Homogenizing Machine Manufacturers, Factory

A fixed pot body vacuum homogenizing emulsifier is a type of emulsifying machine that is used in various industries such as cosmetics, pharmaceuticals, food and chemical processing. It consists of a fixed vessel or pot that is designed to hold the ingredients to be mixed, and a vacuum pump system that creates a vacuum within the vessel.
Send Inquiry

Product Description

Technical Parameters
Model Capacity(L) Mixing Power(KW) Mixing Speed(r/min) Homogenizer Power(KW) Homogenizing Speed Heating Method Limit Vacuum(Mpa)
SME-DE 50L 50L 1.5KW 0-63RPM 3KW 0-3000RPM Electric or steam -0.09
SME-DE 100L 100L 2.2KW 0-63RPM 4KW 0-3000RPM Electric or steam -0.09
SME-DE 200L 200L 3KW 0-63RPM 5.5KW 0-3000RPM Electric or steam -0.09
SME-DE 300L 300L 3-5.5KW 0-63RPM 11KW 0-3000RPM Electric or steam -0.085
SME-DE 500L 500L 4-7.5KW 0-63RPM 15KW 0-3000RPM Electric or steam -0.08
SME-DE 1000L 1000L 7.5KW 0-63RPM 15KW 0-3000RPM Electric or steam -0.08
SME-DE 2000L 2000L 11KW 0-63RPM 18.5KW 0-3000RPM Electric or steam -0.08
Note: In case of technical improvement or customization, the real object shall prevail.
Key Features & Performance
🌀

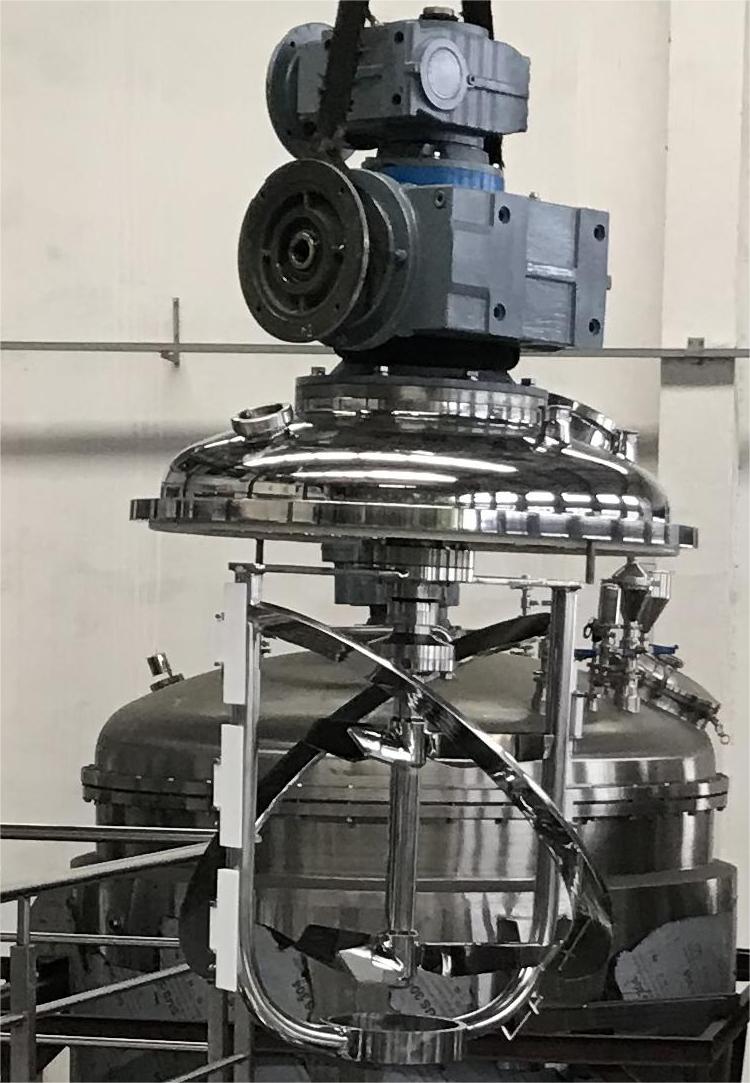

Dual Mixing System: Double-way mixing & helical ribbon mixing. Efficiently handles high-viscosity materials like adhesives and pastes without dead spots.
⚙ïļ
Frequency Conversion: Triple mixing adopts imported frequency converters for adjustable speeds to meet diverse technological demands.
🔎
High Sheer Homogenizer: German technology with double-end mechanical seals. Speeds up to 3000 rpm, achieving fineness of 0.2-5 Ξm.
🔄
Internal Circulation: Ensures uniform and fine emulsifying effects through multiple cycles within the machine.
☁ïļ

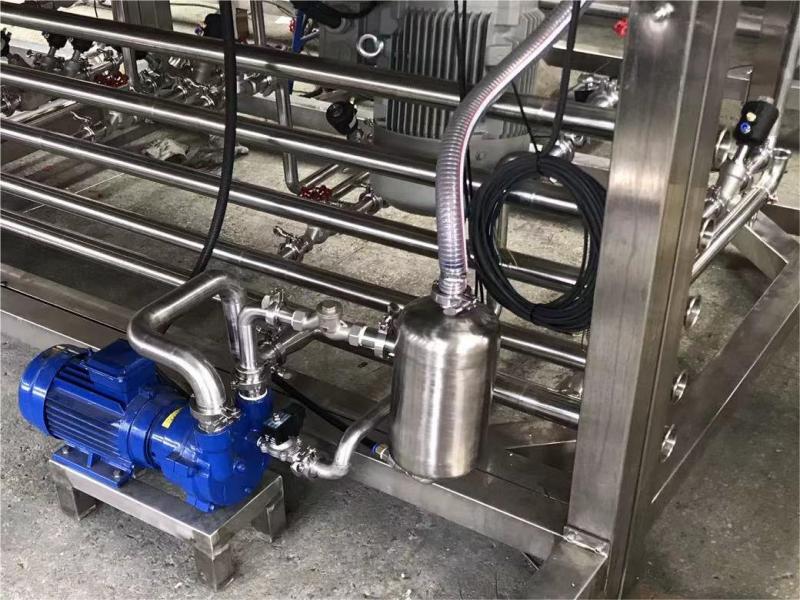

Vacuum System: Vacuum material suction avoids dust for powder materials and ensures aseptic processing through defoaming.
ðŸ›Ąïļ
GMP Standard: Tank body and pipes feature mirror polishing. Constructed with imported three-layer stainless steel (SS316L/SS304).
ðŸ’ŧ
Smart Control: Siemens PLC control cabinet and touch screen for stable, user-friendly operation of speed and temperature.
Product Specifications
SpecificationDetails
Machine TypeVacuum homogenizing emulsifying machine
Capacity10-2000L
UsageCosmetic cream, paste, ointment, lotion, gel, conditioner, milk, sauce
High shear rateless than 2um
Contact partSS316L (Three jackets; contact parts SS316L, others SS304)
Homogenizer speed0-3000rpm
Scraper speed0-63rpm
HeatingSteam / Electric
OperatingPLC Control
Type Options1. Lift type (Hydraulic) / 2. Fixed type

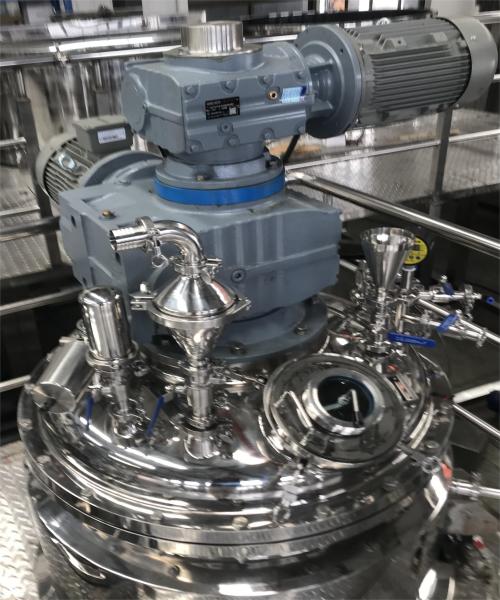

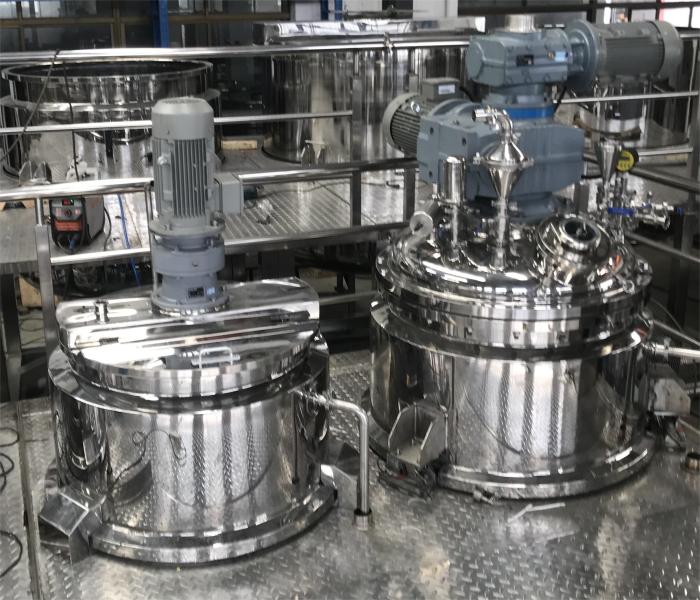

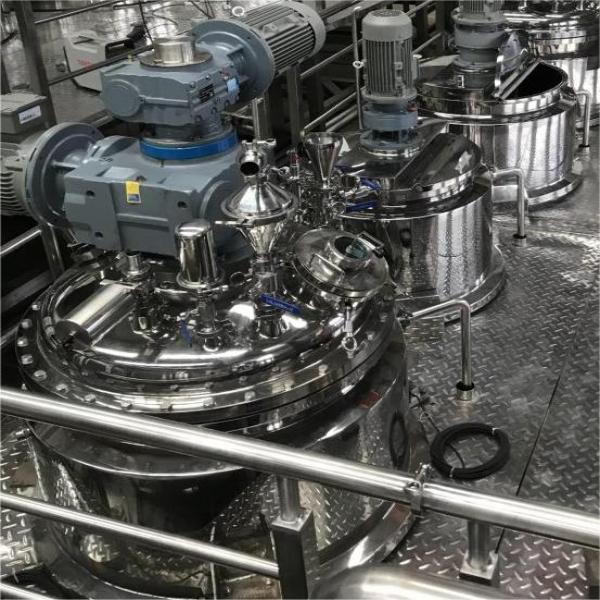

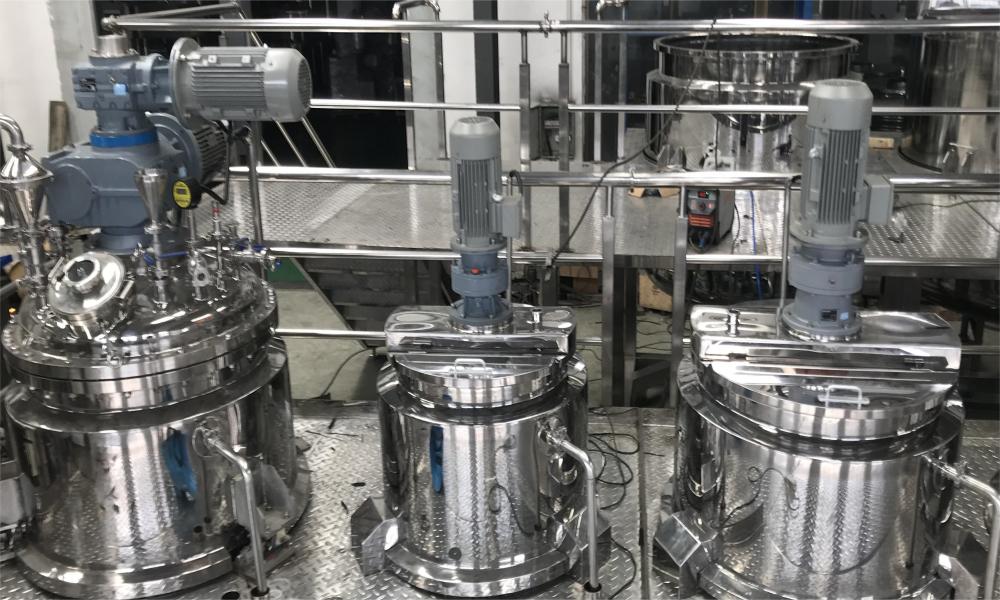

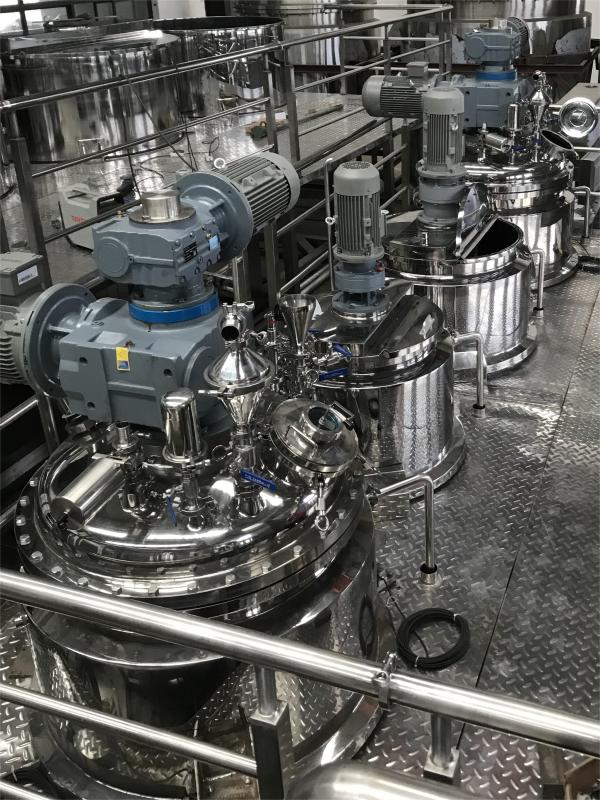

Vacuum Emulsifying Mixer Project Production

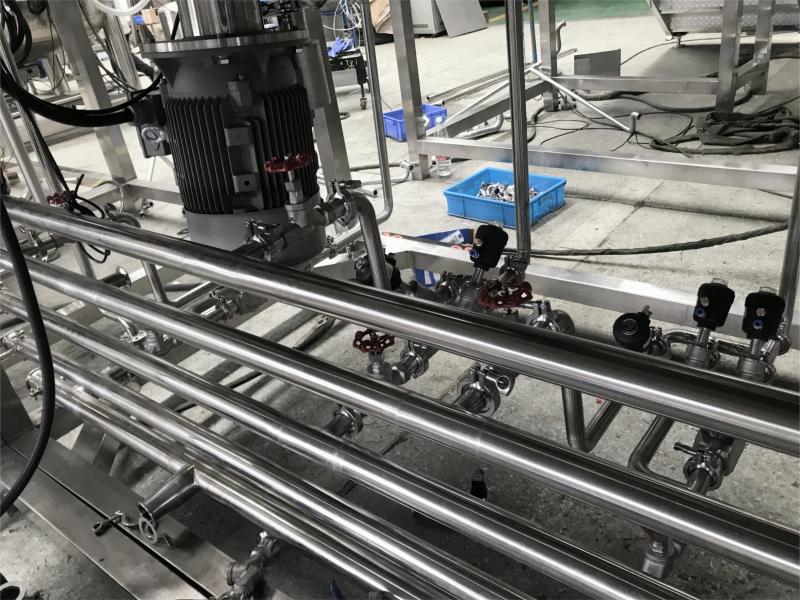

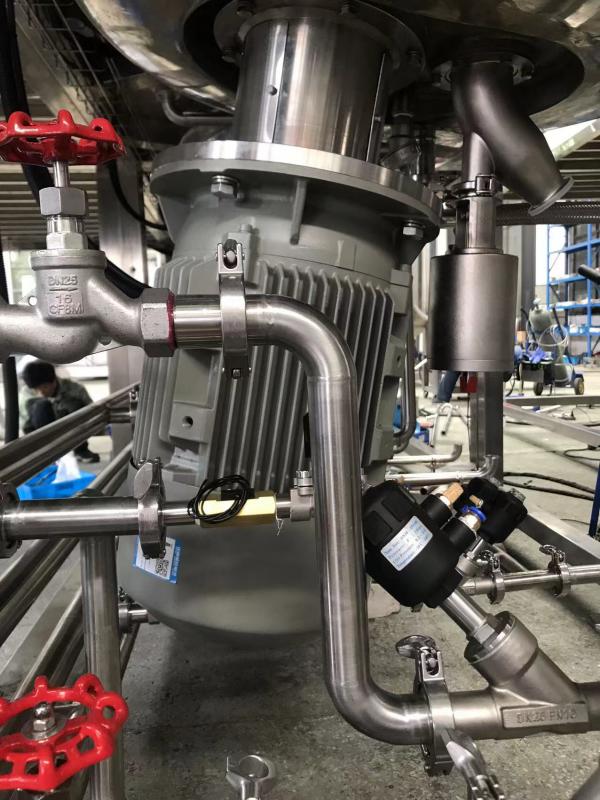

Bottom Homogenizer with Internal Circulation

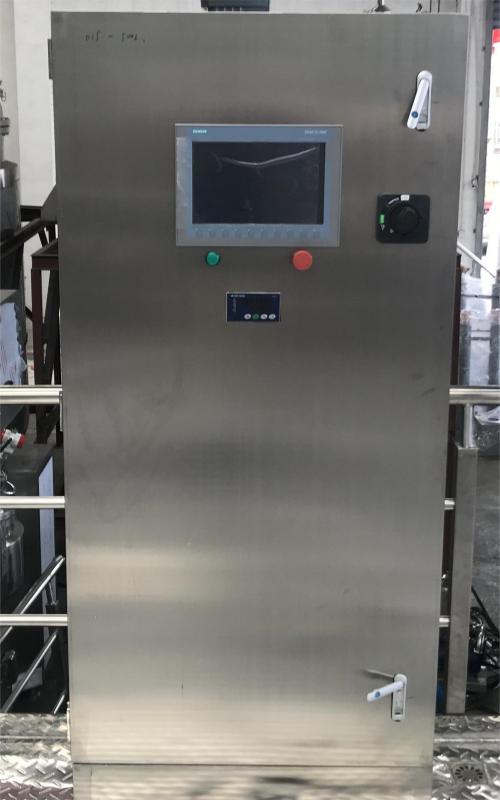

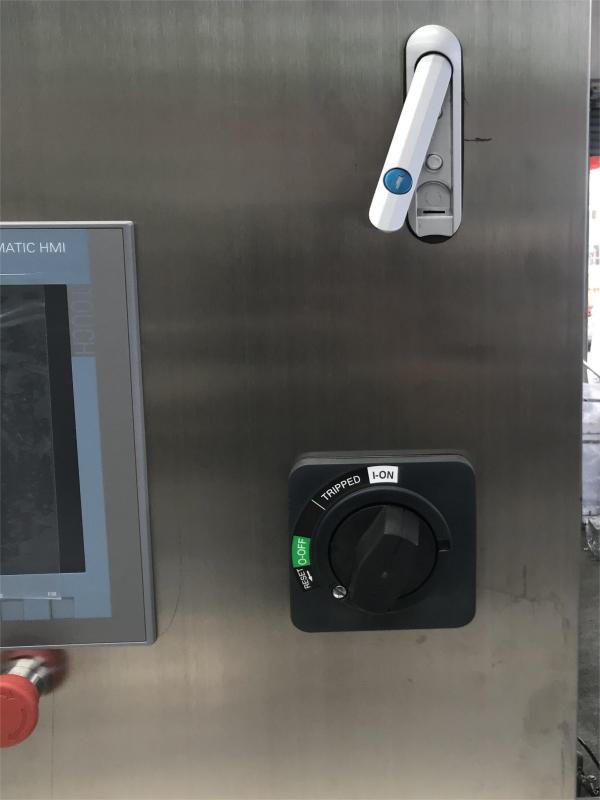

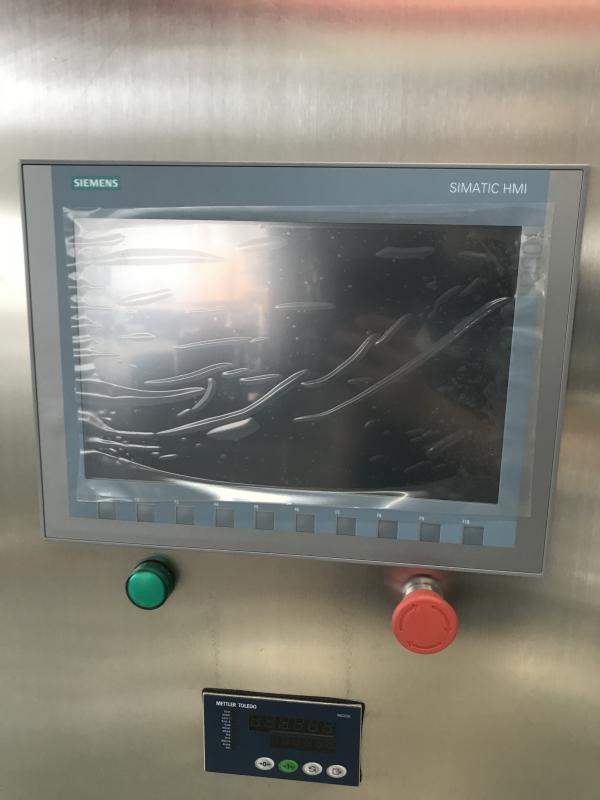

PLC Control Electric Cabinet & Siemens Touch Screen

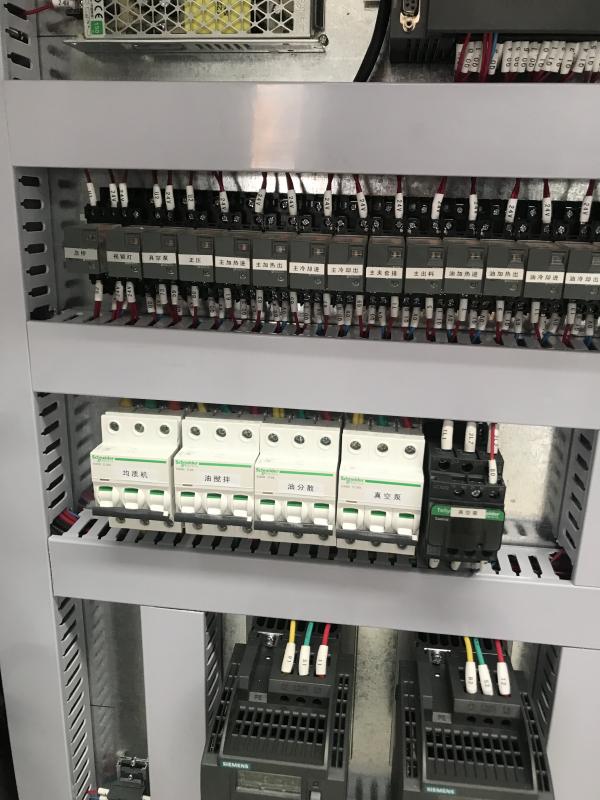

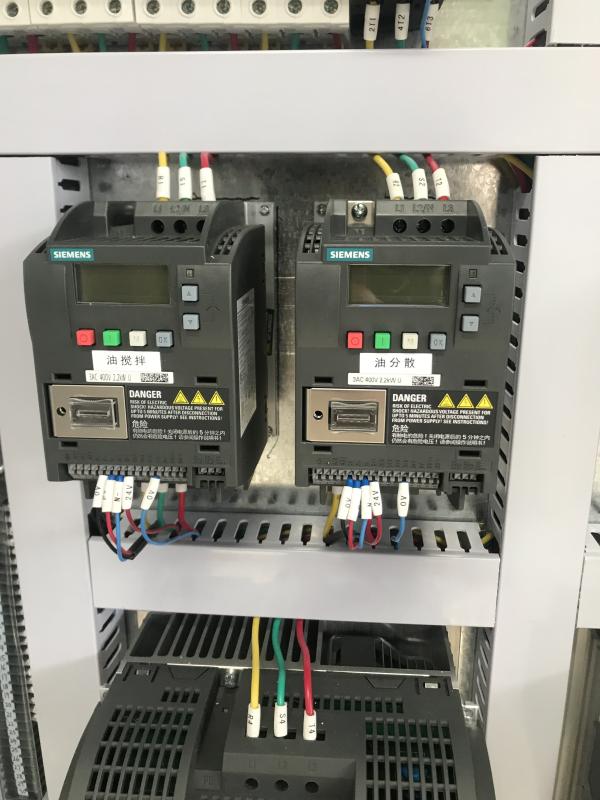

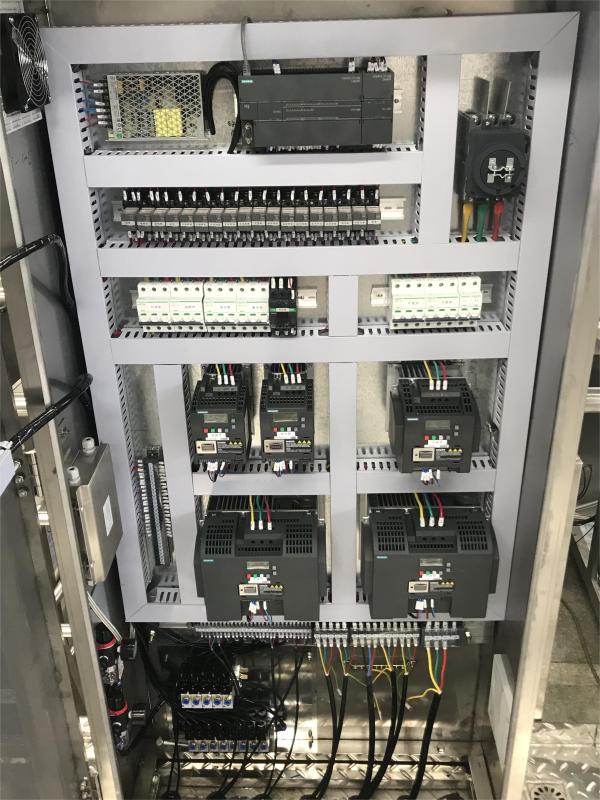

Control Components & Schneider Electric Integration

Our Professional Service

✅ Delivery date within 30 days

✅ Customized plans according to requirements

✅ Support video inspection of factory

✅ Equipment warranty for two years

✅ Provision of equipment operation videos

✅ Support video inspection of finished products

Automatic Filling & Water Treatment Systems
Storage Tanks & Labeling Machinery
Applications
Daily Cosmetics
Hair ConditionerFacial MaskMoisturizing LotionSunscreen
Skin CareShea ButterBody LotionBB Cream
Hair CreamFace WashMascaraFoundation
Lip BalmEye SerumShampooHand Cream
Food & Pharmaceutical
CheeseMilk ButterOintmentKetchup
MustardPeanut ButterMayonnaiseSauce
ToothpasteMargarineSalad DressingWasabi
Frequently Asked Questions
1. What materials are suitable for the vacuum homogenizing mixer?
The machine is designed for a wide range of viscosities, including cosmetic creams, lotions, pharmaceutical ointments, and food products like mayonnaise or sauces.
2. How does the vacuum system benefit the production process?
The vacuum system performs defoaming to ensure products are aseptic and smooth. It also allows for dust-free suction of powder materials directly into the tank.
3. Can the mixing speed be adjusted for different products?
Yes, the machine uses imported frequency converters for speed adjustment. The scraper mixing ranges from 0-63 RPM and the homogenizer reaches up to 3000 RPM.
4. What are the hygiene standards of the equipment?
The machine fully conforms to GMP requirements. All contact parts are made of SS316L stainless steel with mirror polishing, and it is equipped with a CIP cleaning system.
5. Does the machine support both heating and cooling?
Yes, the triple-jacketed tank body is designed to either heat (via steam or electricity) or cool materials according to your specific technological requirements.
6. Is the control system easy for operators to use?
The machine features a Siemens PLC control cabinet and touch screen, providing a user-friendly interface to monitor and adjust speed, temperature, and other parameters.
