CE Certification One-stage and Two-stage stainless steel RO water treatment Supplier, Suppliers

Reverse osmosis technology is a modern high technology developed recently in China. Reverse osmosis is to separate water from solution after it permeates the specially-made semi-transparent membrane through exerting a pressure that is higher than the osmosis pressure on the solution, As this process is reverse to the natural permeation direction, it is called reverse osmosis. According to different osmosis pressures of various materials, the process of reverse osmosis with a pressure higher than the osmosis pressure can be used to reach the purposes of separation, extraction, purification and concentration of a certain solution it does not need heating and there is no phase changing process; therefore, it saves more energy than traditional process.

Product Description

This advanced system occupies little space, is easy to operate, and has a wide application range. When used for disposing of industrial water, the reverse osmosis device does not consume large amounts of acids and alkalis, ensuring no secondary pollution while maintaining low operation costs.
✔️
High Efficiency: Desalting rate >99%, machine desalting rate >97%.
🔬
Purity: 98% of organic matters, colloids, and bacteria can be removed.
🤖
Automation: High degree of operation automation; unattended operation with automatic start/stop and flushing.
🌍
Quality Parts: Imported parts account for over 90% of the system components.

Technical Performance

Finished water exhibits excellent electric conductivity:

  • One Stage: ≤ 10 μs/cm
  • Two Stage: Around 2-3 μs/cm
  • EDI: ≤ 0.5 μs/cm (based on raw water ≤ 300 μs/cm)

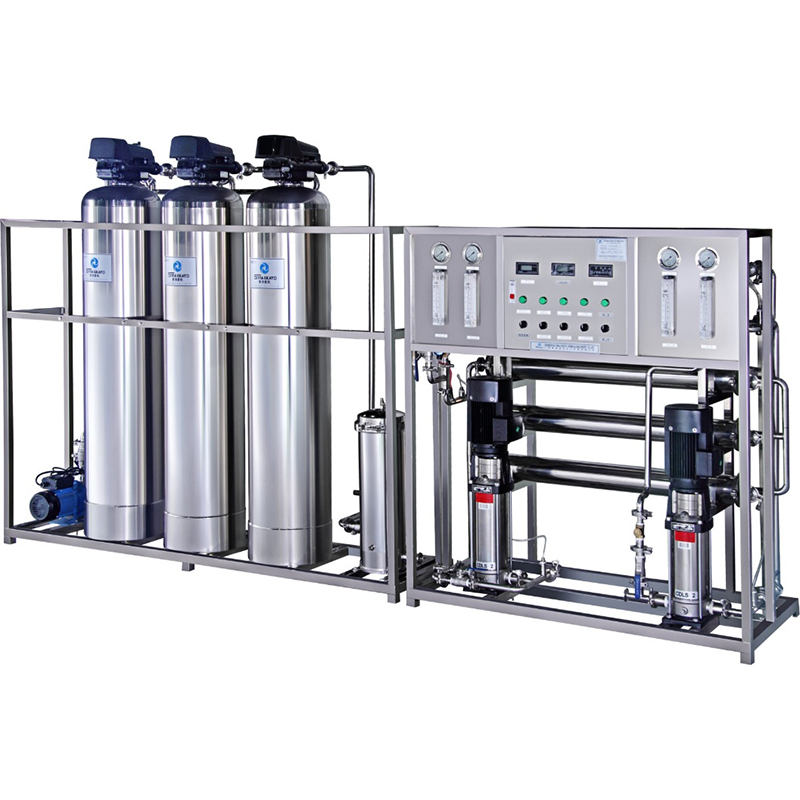

RO System View 1

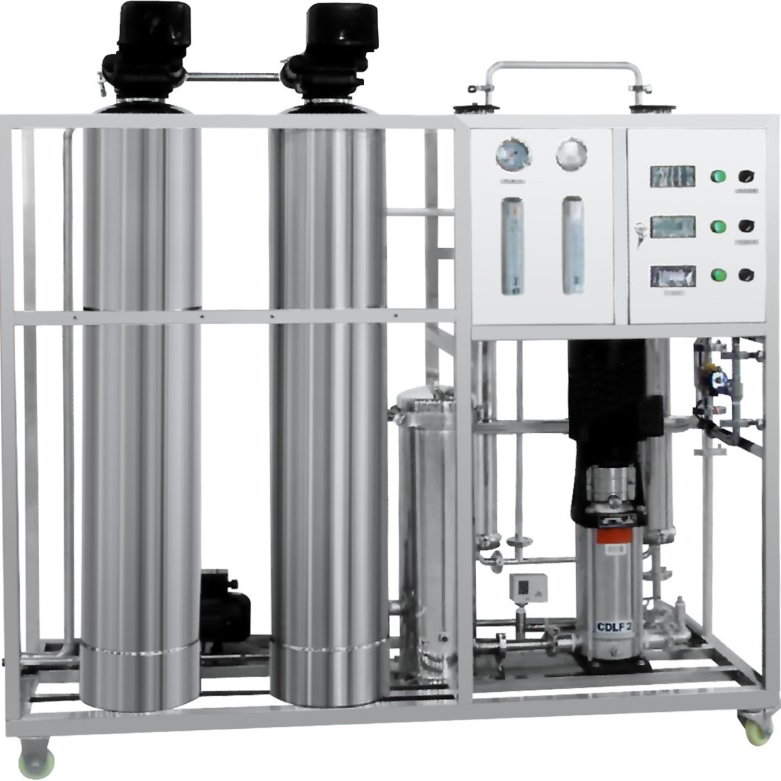

RO System View 2

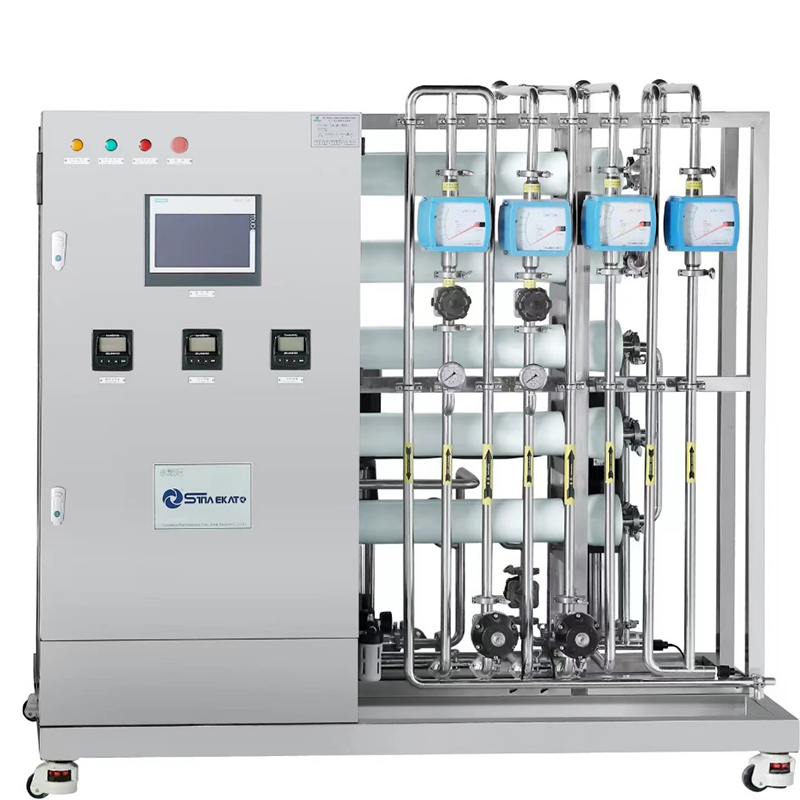

RO System View 3
DUBAI Project - 2000L/Hour

Wide Application Range

📍 Electronic Industry: Integrated circuits, silicon wafers, display tubes.
📍 Pharmaceutical: Large infusion, injection, tablets, biochemical products.
📍 Chemical Process: Circulating water, chemical products manufacturing.
📍 Electric Industry: Thermal power generation boilers, low-pressure boiler systems.
📍 Food & Beverage: Purified drinking water, beverages, beer, alcohol.
📍 Desalination: Islands, ships, marine drilling platforms.
📍 Other: Automobile painting, cosmetics, fine chemicals.

Flowchart for Two-stage Type

Raw water → Raw water tank → Raw water pump → Sand filter → Carbon filter → Safety filter → High pressure pump → One stage RO → Middle water tank → High pressure pump → Two stage RO → Stainless steel pure water tank → Pure water pump → Using pure water point
Process Flow Diagram

Global Projects & Components

SRI LANKA Project
SRI LANKA Project - 1000L/Hour
UK Project
UK Project - 1000L/Hour
SOUTH AFRICA Project
SOUTH AFRICA - 2000L/HOUR
DUBAI Project
DUBAI Project - 3000L/Hour
SYRIA Project
SYRIA PROJECT - 500L/HOUR
KUWAIT Project
KUWAIT PROJECT - 1000L/HOUR
Mixing Bed
CG-Anion Cation Mixing Bed
Ozone Generator
Ozone Generator
Ultraviolet Sterilizer
Current Passing Type Ultraviolet Sterilizer

Product Specifications

Model Capacity (T/H) Power (KW) Recovery (%) 1-Stage Cond. (μs/cm) 2-Stage Cond. (μs/cm) EDI Cond. (μs/cm)
R0-5000.50.7555-75≤102-3≤0.5
R0-10001.02.255-75
R0-20002.04.055-75
R0-30003.05.555-75
R0-50005.07.555-75
R0-60006.07.555-75
R0-1000010.01155-75
R0-2000020.01555-75
No Item Data
1DescriptionPure water treatment purifying machine
2VoltageAC380V - 3 Phase
3ComponentSand + Carbon + Soften + Precision + RO filters
4Capacity500L/H (Customizable up to 5000L/H)
5Filter PrinciplePhysical filtration + Reverse osmosis
6ControlButton or PLC + Touch screen

Frequently Asked Questions (FAQ)

Q: What is the desalination rate of this RO system? A: The reverse osmosis desalting rate is over 99%, and the overall machine desalting rate is at least 97%.
Q: Can it remove bacteria and organic matter? A: Yes, the system effectively removes approximately 98% of organic matters, colloids, and bacteria from the water.
Q: Does the system require constant manual monitoring? A: No, the system features a high degree of automation. It can operate unattended with automatic start/stop functions based on water sufficiency.
Q: What is the conductivity of the produced water? A: For a raw water input of ≤300 μs/cm, the one-stage output is ≤10 μs/cm, the two-stage is 2-3 μs/cm, and the EDI output is ≤0.5 μs/cm.
Q: Are the components reliable for long-term use? A: Yes, over 90% of the parts used in our machines are imported, ensuring high durability and international quality standards.
Q: Is the system environmentally friendly? A: Yes, the physical reverse osmosis process does not consume large amounts of acids or alkalis, resulting in no secondary pollution.
