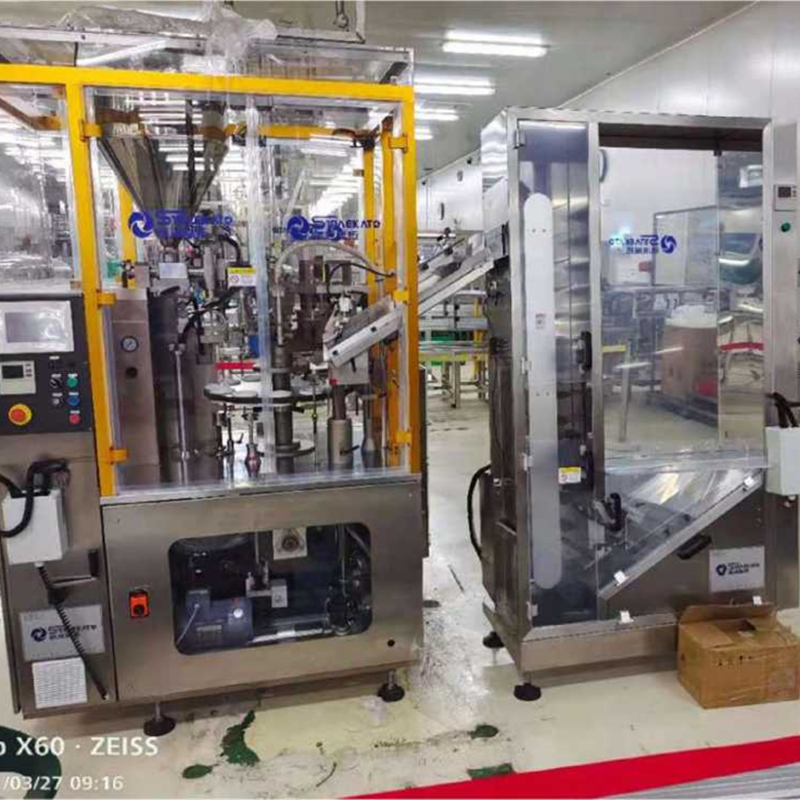

CE Certification ST-600 80Pcs/Min France Model Full-auto Tube Filling and Sealing Machine for Plastic & Laminated & Aluminum Tube Suppliers, Factory

It adopts with PLC controller.automatically operating from liquid or high viscosity material filling till batch number printing (include manufacture date),it’s an ideal equipment for Alu tube,plastic tube and multiple tube filling and sealing in cosmetic,pharmacy.foods,adhesives etc,comply with the standard of GMP. Speed 80Pcs/min;

Send Inquiry

Product Description

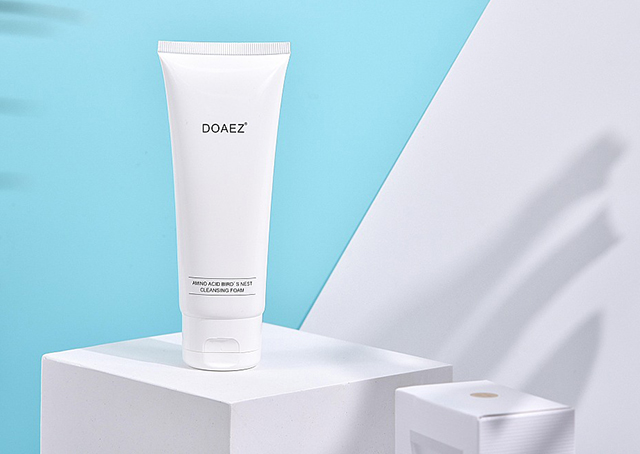

The product is suitable for automatic color code aligning, filling, sealing, date printing and end cutting of various plastic tubes and aluminum composite tubes. It is widely applied in daily chemical industry, medicine, food, etc.

🚀 Biggest Special:

Speed: 80 Pcs/Min for 100ml tube;
Mechanism: Hot air moved by CAM instead of cylinder;

💎 Advantage on ST-600 Tube Filling Machine:

Safety First: Follow EU standard and “CE” support. Equipped with a torque clutch from Italy, effectively protecting the machine from crashes and preventing injury to workers.

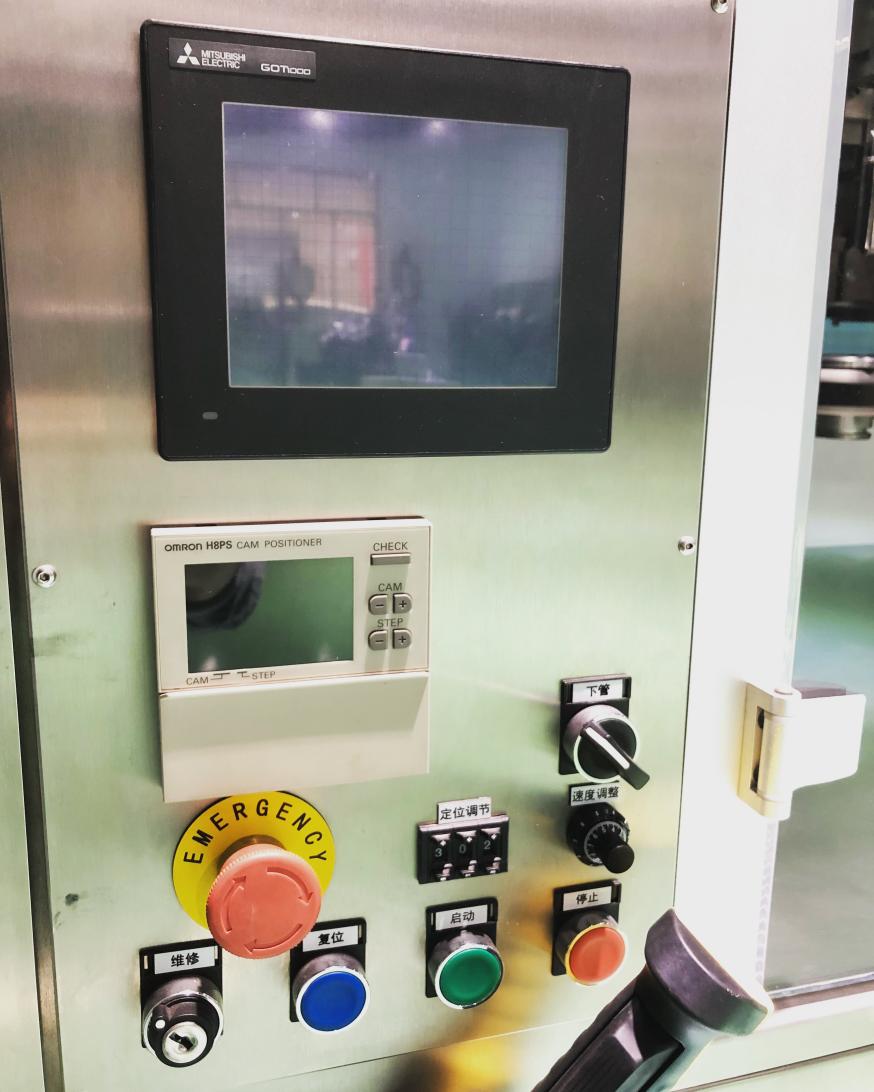

Precision Operation: Japan safety operation handle instead of a simple button effectively protects personnel from operating risks.
Easy Maintenance: Pure mechanical design for easy maintenance and repair, equipped with omni-directional security doors.

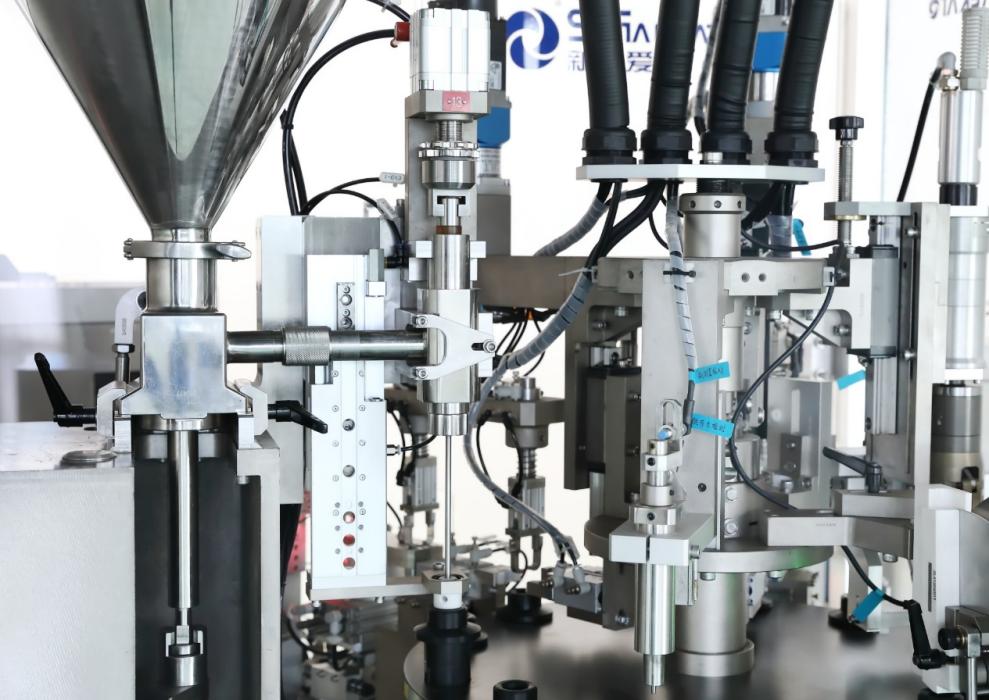

Hygienic Standards: GMP compliant and no pollution. Filling nozzles are made of French materials with a unique cutting design ensuring no leaking.
High Efficiency: 80 pcs/min output with above 99% qualified sealing rate. Uses a combination of Italian drivers and Japanese Sanyo steps for color calibration accuracy.
Premium Parts: Uses high-quality mechanical and pneumatic parts (e.g., Festo) to follow European machine standards 1:1.

International Applications

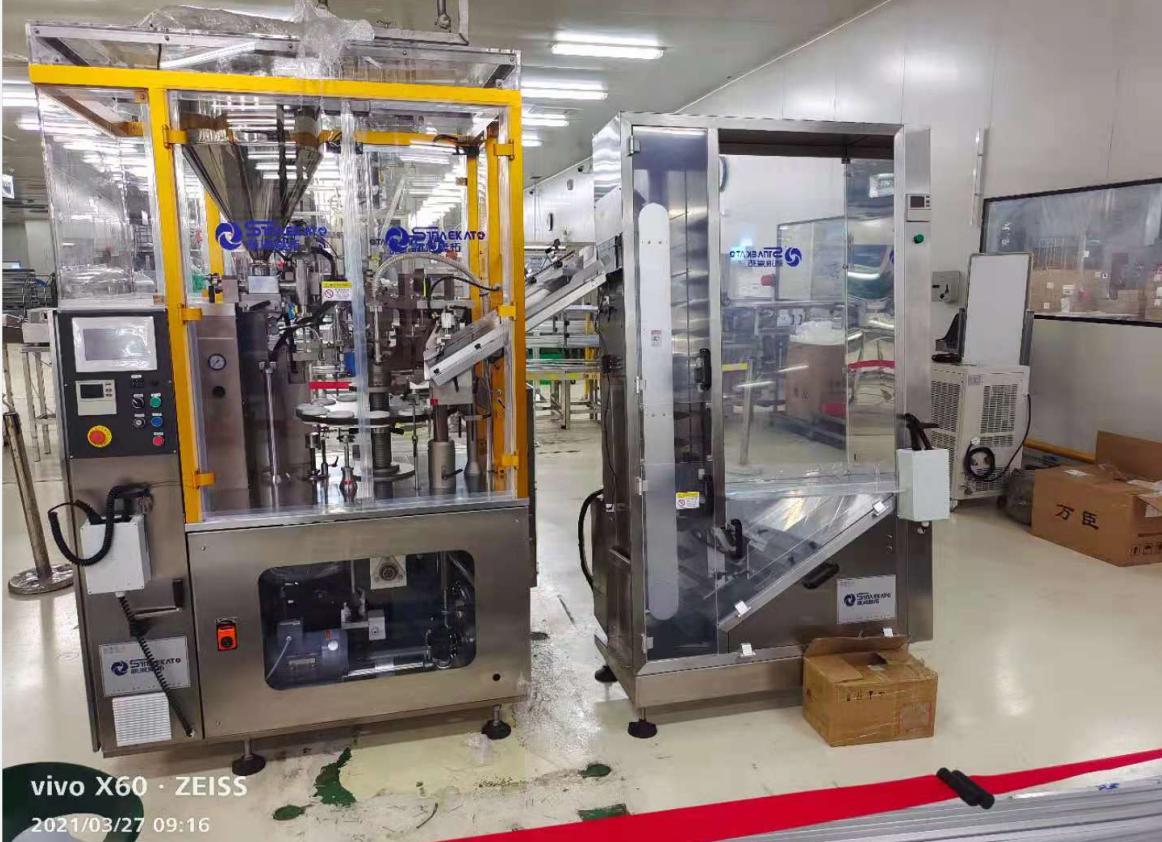

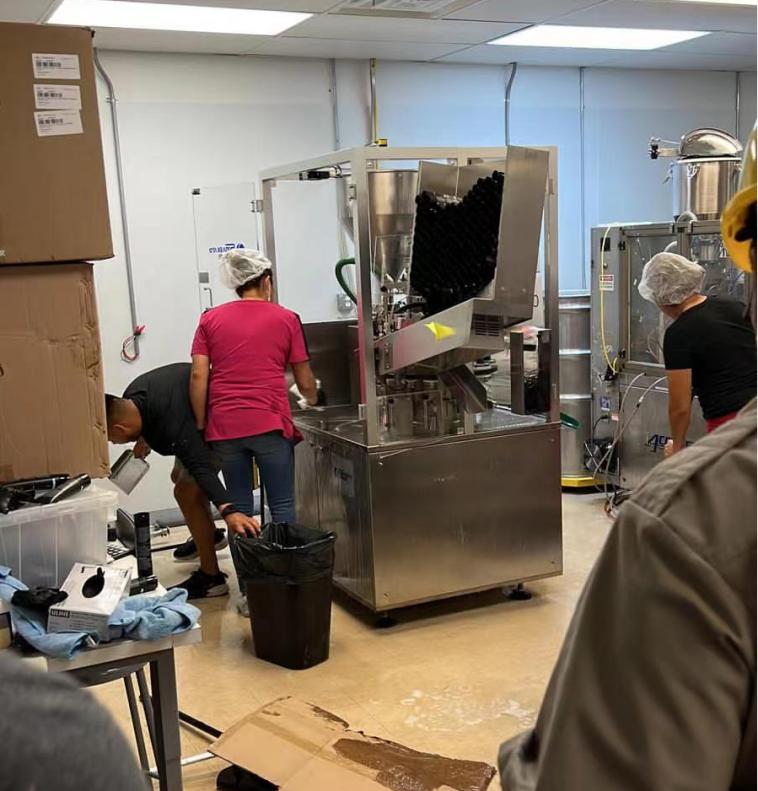

Global Usage Situations (USA, JAPAN, DUBAI, PAKISTAN...)

📊 Technical Specifications:

Filling volume: 1-400ml

Filling speed: Approx 80 pcs/min

Precision: ≤ ±1%

Tube diameter: Φ16-50mm (Max 55mm)

Tube length: Max 200mm-210mm

Hopper capacity: 45L

Air pressure: 0.5-0.7 MPa

Voltage: 380V / 50Hz 3Phase

Power Consumption: 5.5 KW

⚙️ Automated Operations:

The ST600 is operated by only one person and automatically carries out:

Tube transfer into the tube-holder
Automatic orientation according to the spot
Tube filling and counting
Tube sealing and date marking
Automatic ejection of the finished tubes

Name	Original	Manufacture	Feature
Motor Reductor	Germany		Transmission
Cam indexers	Japan		Transmission
Torsion Limiter	Italy		Transmission
Adjust-speed motor	Japan		Discharge tube
Pneumatic parts	Germany		Multifunctional pieces
Electric Parts	France		Multifunctional pieces

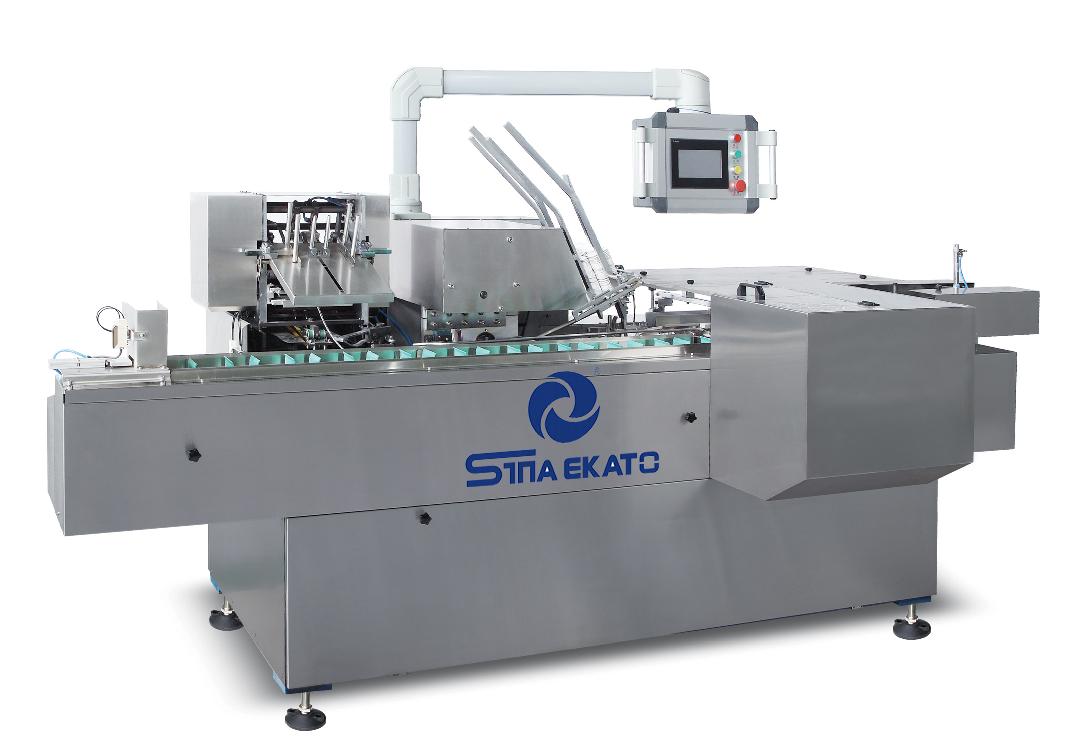

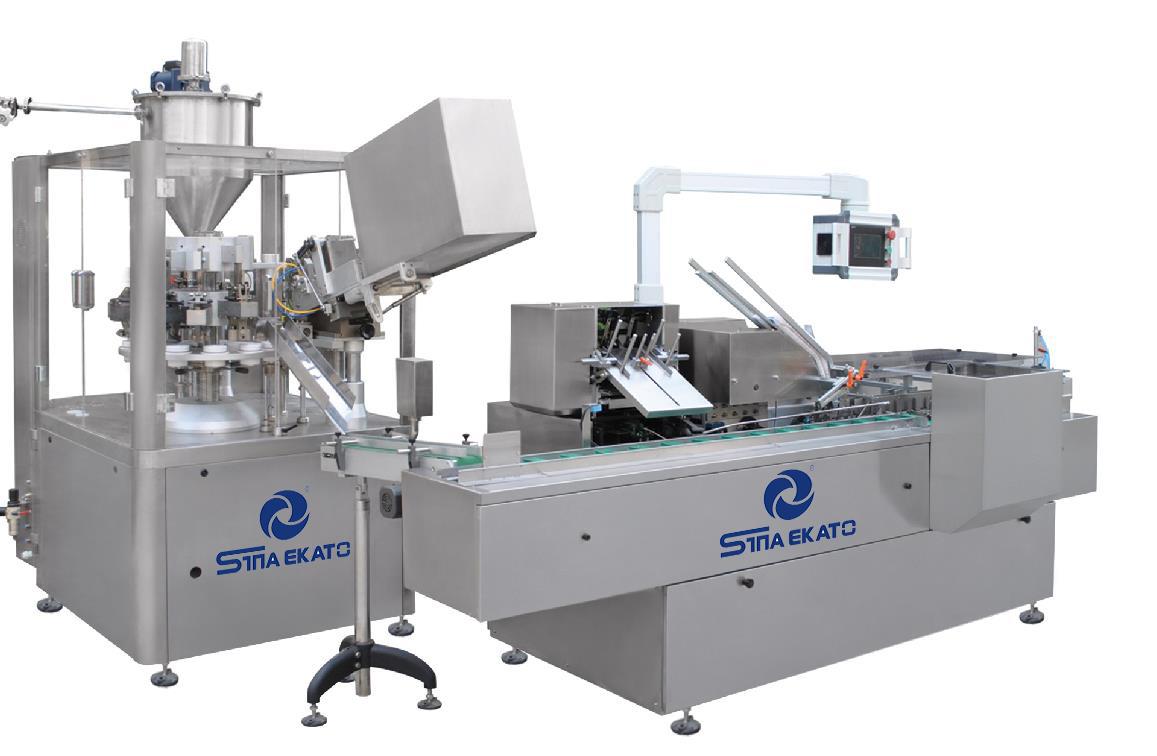

Related Machinery: Semi-auto Filling & Cartoning Solutions

📋 Frequently Asked Questions (FAQ)

Q1: What types of tubes can this machine handle?

A: The machine is designed for various plastic tubes, aluminum composite tubes, and laminated tubes, widely used in food, medicine, and chemical industries.

Q2: What is the maximum production speed of the ST-600?

A: It can reach a speed of approximately 80 pieces per minute, depending on the tube size and the viscosity of the product.

Q3: How many operators are required for the machine?

A: The ST600 is designed for high automation and only requires one person to place empty tubes into the store feeder.

Q4: Does the machine support automatic date printing?

A: Yes, the machine automatically carries out tube orientation, filling, sealing, and marking of a code/date on the sealing area.

Q5: What are the safety features of this filling machine?

A: It follows EU standards with CE support, including an Italian torque clutch to prevent mechanical crashes and a Japanese safety handle for personnel protection.

Q6: What is the filling precision range?

A: The machine offers high precision with a variance of ≤ ±1%, ensuring consistent filling for volumes ranging from 1ml to 400ml.
