Technical Specifications
| Specs (L) |
D (mm) |
D1 (mm) |
H1 (mm) |
H2 (mm) |
H3 (mm) |
H (mm) |
DN (mm) |
| 200 |
700 |
800 |
400 |
800 |
235 |
1085 |
32 |
| 500 |
900 |
1000 |
640 |
1140 |
270 |
1460 |
40 |
| 1000 |
1100 |
1200 |
880 |
1480 |
270 |
1800 |
40 |
| 2000 |
1400 |
1500 |
1220 |
1970 |
280 |
2300 |
40 |
| 3000 |
1600 |
1700 |
1220 |
2120 |
280 |
2450 |
40 |
| 4000 |
1800 |
1900 |
1250 |
2250 |
280 |
2580 |
40 |
| 5000 |
1900 |
2000 |
1500 |
2550 |
320 |
2950 |
50 |

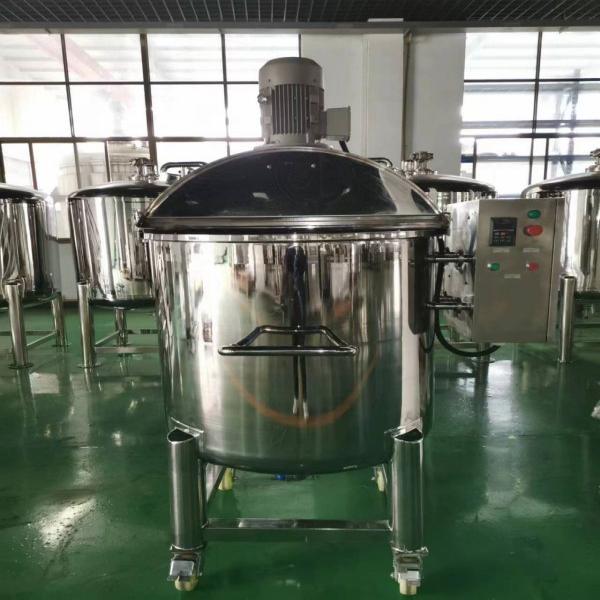

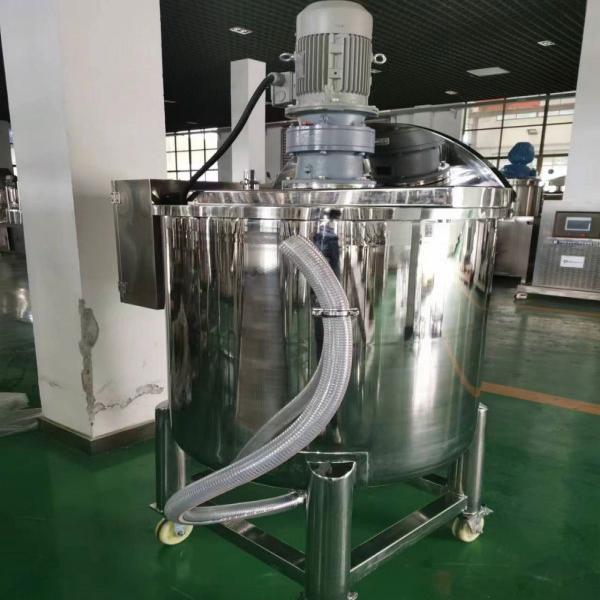

Stainless Steel Mixing Tank is widely for manufacturing various liquid products such as liquid detergent, shampoo, hair conditioner, body shower etc. The reacting machine is and ideal device for preparation in various factories.
Key Features
✔ Tank can be single layer jacket.
✔ Half open lid, easy to operate.
✔ The discharge port adopts sus316 bottom sanitary ball valve.
✔ Suitable for all kinds of liquid water-based products mixing.
✔ Movable design: the mixing tank can be with movable wheels for easy moving.
✔ Slow speed blade type blending is provided with frequency conversion control.
✔ Parts that contact materials are made of stainless steel SUS316L. The whole equipment conforms to GMP standard.
Half open lid
Discharge port

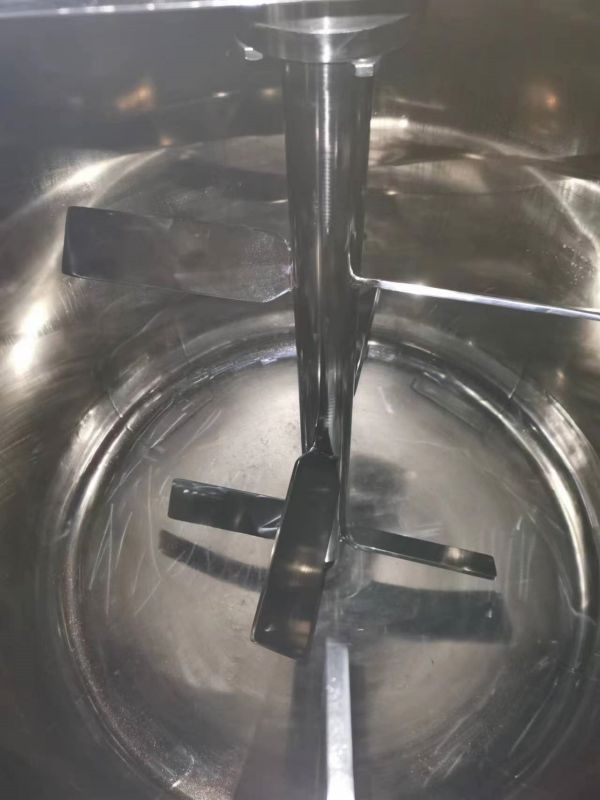

Single impeller

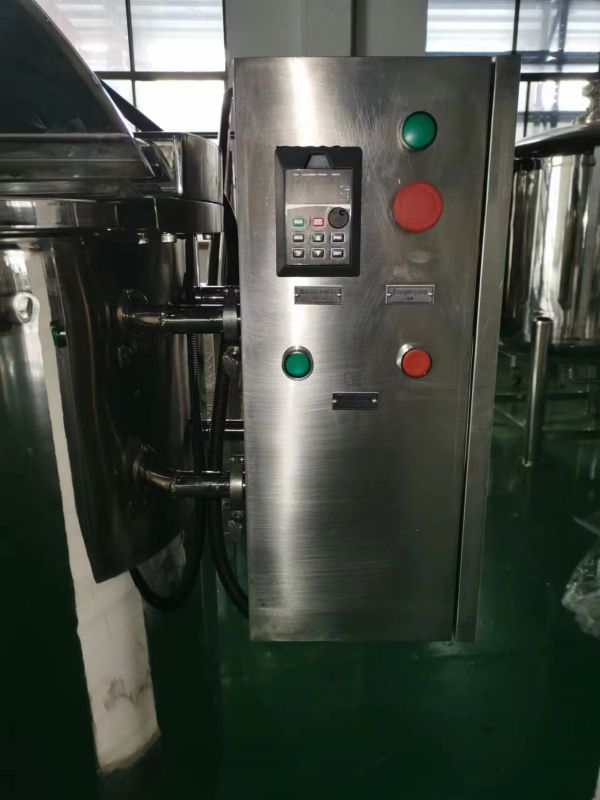

Variable frequency box
Frequently Asked Questions (FAQ)
What types of products can this mixing tank produce?
It is ideal for manufacturing various liquid products such as liquid detergent, shampoo, hair conditioner, body shower, and other water-based liquid mixtures.
What materials are used for the parts in contact with products?
All parts that come into contact with materials are made of high-quality stainless steel SUS316L to ensure safety and durability.
Does the equipment comply with industry standards?
Yes, the entire equipment is designed and manufactured to conform to GMP (Good Manufacturing Practice) standards.
Is the mixing speed adjustable?
Yes, the tank features a slow-speed blade type blending system equipped with frequency conversion control for precise speed adjustment.
Can the mixing tank be easily moved within the factory?
Absolutely. The tank features a movable design and can be equipped with wheels for easy relocation and flexibility in your production line.
What kind of lid and discharge system does it have?
The tank uses a half-open lid for easy operation and access, and the discharge port is equipped with a SUS316 bottom sanitary ball valve.
