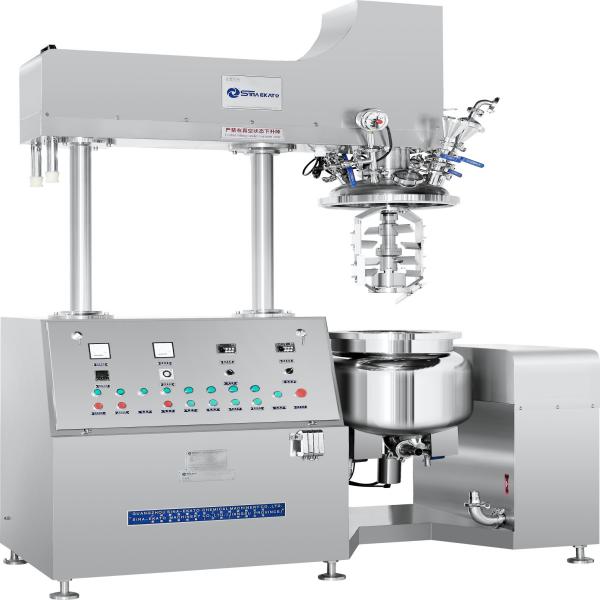

Best Electronic Control Top Homogenizer Bidirectional Mixing Vacuum Emulsifying for Cream Lotion Skincare Cosmetic Machinery Supplier, Factories

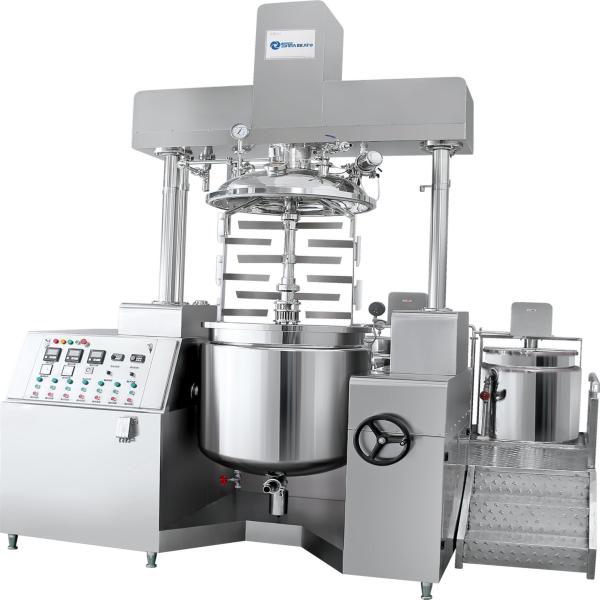

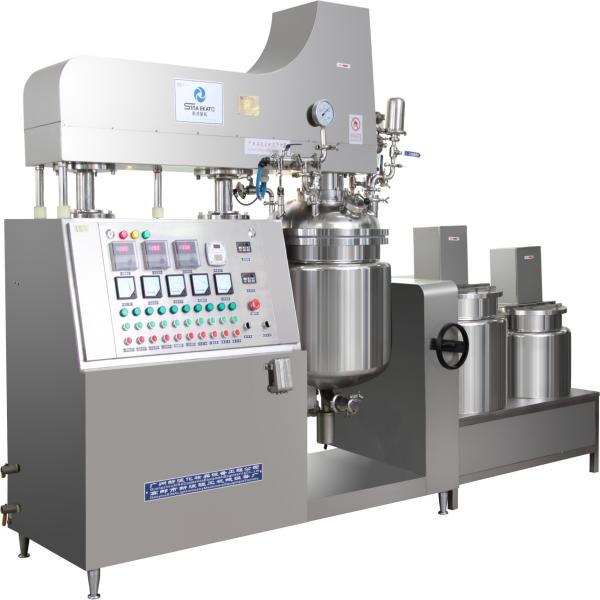

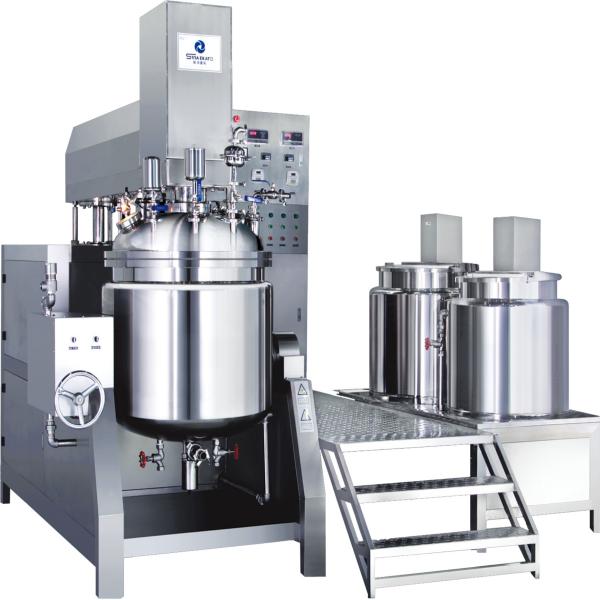

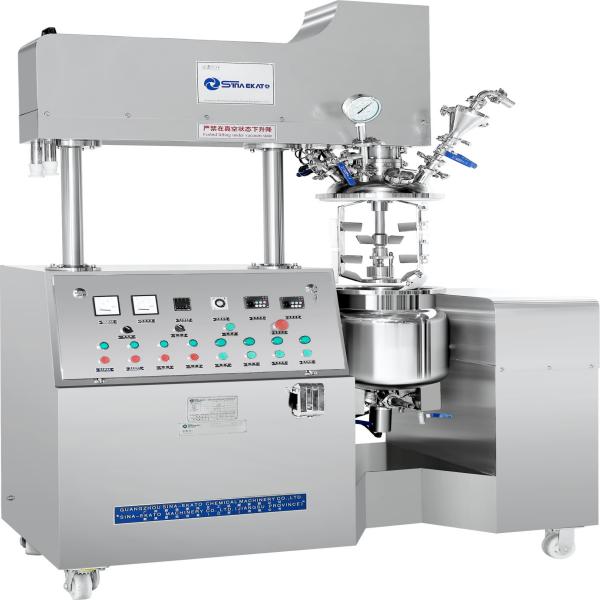

The machine is made up of pretreatment boiler (oil boiler, water boiler), vacuum emulsification blending boiler, vacuum pump, pouringout system, electric control system or steam heating system and workable. 5-2000L vacuum emulsifying machine for Cosmetics, cream, ointment, lotion, skin care products etc.

Send Inquiry

Product Description

1. High speed rotor endows the material with high centrifugal speed and great centrifugal force. When slowing down instantaneously, the material suffers the associative action of cavitation, detonation, shearing and grinding. Meanwhile, the material is imbibed from upside of the homogenizer and erupted from the sideward plug hole. By the combined action of the stirrer along the vessel wall, granule spreads homogeneously and uniformly and the degree of uniformity shall come up to more than 99%.

2. Very small aperture between stator and rotor shall assure the effect of grinding, shearing, mixing and emulsifying of the material and avoid colliding and friction during the rotor rotates with high speed.

Model	Capacity	Homogenizer Motor		Stir Motor		Dimension (mm)			Total Power (KW)		Limit vacuum (Mpa)
Model	Capacity	KW	r/min	KW	r/min	L	W	H	Steam	Electric	Limit vacuum (Mpa)
SME-C5	5L	0.37	3000	0.18	63	1260	540	1600/1850	2	5	-0.09
SME-C10	10L	0.75	3000	0.37	63	1300	580	1600/1950	3	6	-0.09
SME-C50	50L	3	3000	1.1	63	2600	2250	1950/2700	9	18	-0.09
SME-C100	100L	4	3000	1.5	63	2750	2380	2100/2950	13	32	-0.09
SME-C200	200L	5.5	3000	2.2	63	2750	2750	2350/3350	15	45	-0.09
SME-C300	300L	7.5	3000	2.2	63	2900	2850	2450/3500	18	49	-0.085
SME-C500	500L	11	3000	4	63	3650	3300	2850/4000	24	63	-0.08
SME-C1000	1000L	15	3000	5.5	63	4200	3650	3300/4800	30	90	-0.08
SME-C2000	2000L	15	3000	7.5	63	4850	4300	3800/5400	40	-	-0.08

Note: In case of inconformity of the data in the table due to technical improvement or customization, the real object shall prevail.

Available Machinery Solutions

Reverse osmosis water purifier, vacuum homogenizing emulsifier, aseptic storage tank, drying sterilizer, ointment filling machine, conveying workbench, code printer, labeling machine, aluminum foil sealing machine, shrink film machine.

Fully Automatic Production Line

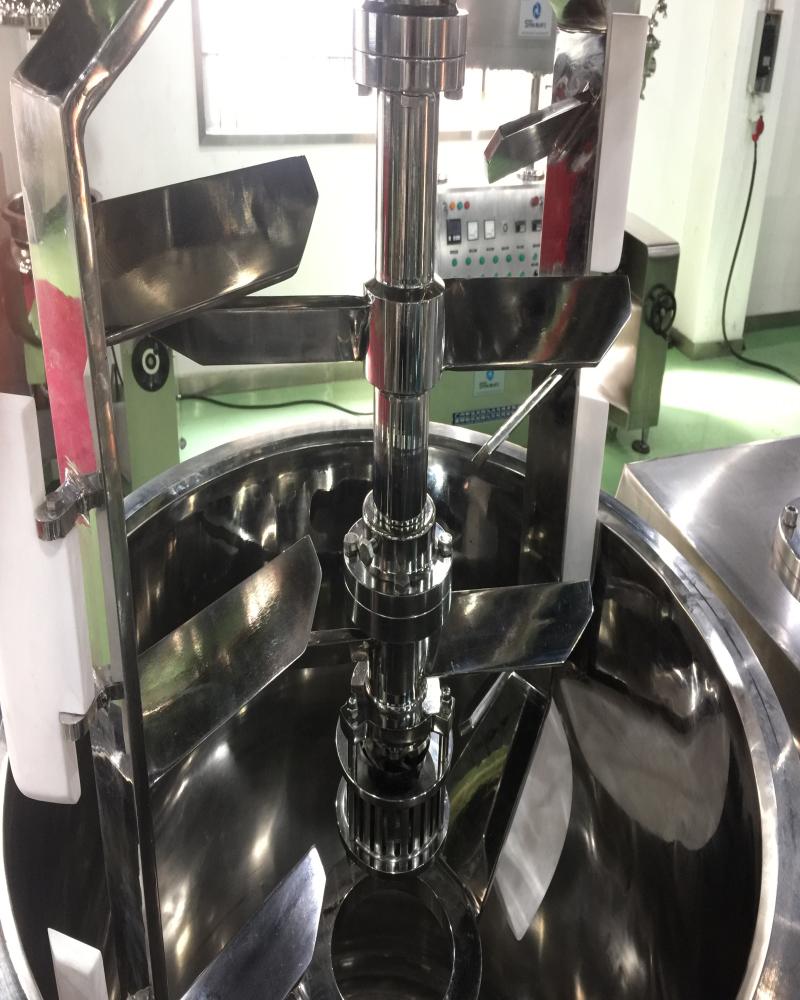

Shape of the Blender Blades: Two-way mixing with frame scraping wall.

Button Controlled: Each button has its own function, adjust mixing speed, etc.

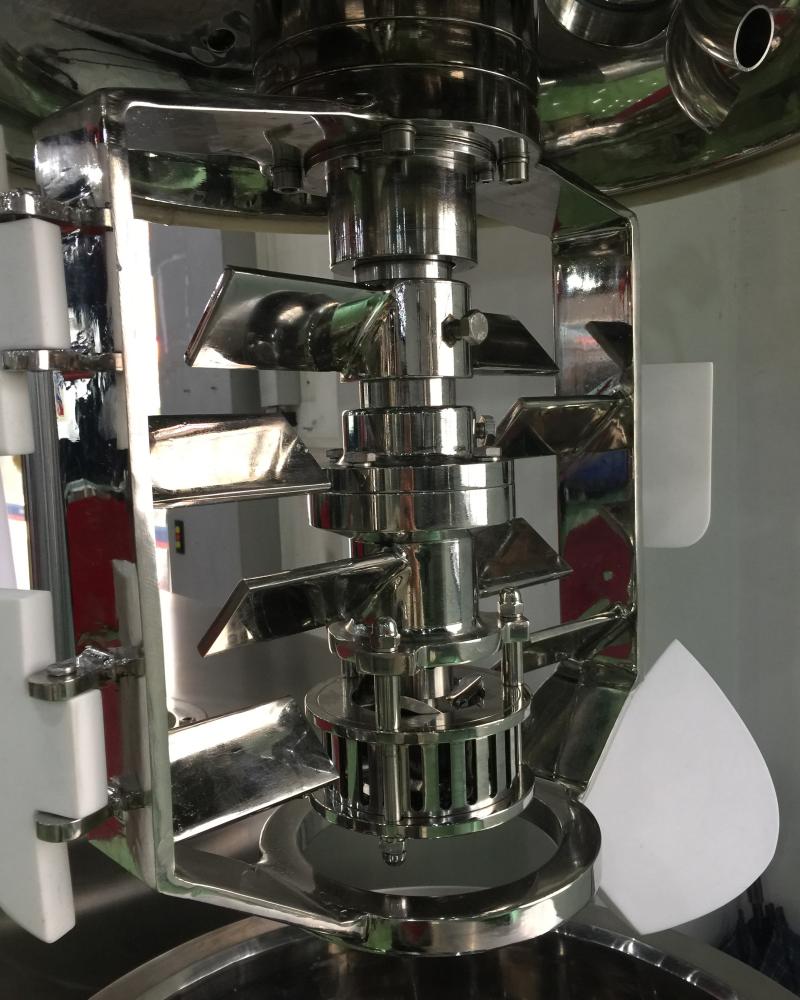

The homogenizing stirring system of SME-C bidirectional stirring vacuum emulsifier is composed of high-speed homogenizer shear, center stirring paddle and scraping stirring frame. High shear homogenizer can quickly refine the material. For sticky products, the two-way mixing ensures faster and more efficient high-speed shear without dead corners.

Reverse Osmosis Water Treatment

Aseptic Storage Tank

Semi-Automatic Filling Machine

Capping Machine (Full-Auto & Semi-Auto & Manual Type)

Labeling Machine (Round & Flat Bottle / Top Cover)

Daily Cosmetic Applications
hair conditioner	facial mask	moisturizing lotion	suncream
skin care	shea butter	body lotion	sunscreen cream
cream	hair cream	cosmetic paste	BB Cream
lotion	face wash liquid	mascara	foundation
hair color	face cream	eye serum	hair gel
hair dye	lip balm	serum	lip gloss
emulsion	lipstick	highly viscous product	shampoo
cosmetic toner	hand cream	shaving cream	moisturizing cream
Food & Pharmaceutical Applications
cheese	milk butter	ointment	ketchup
mustard	peanut butter	mayonnaise	wasabi
toothpaste	margarine	Salad dressing	sauce

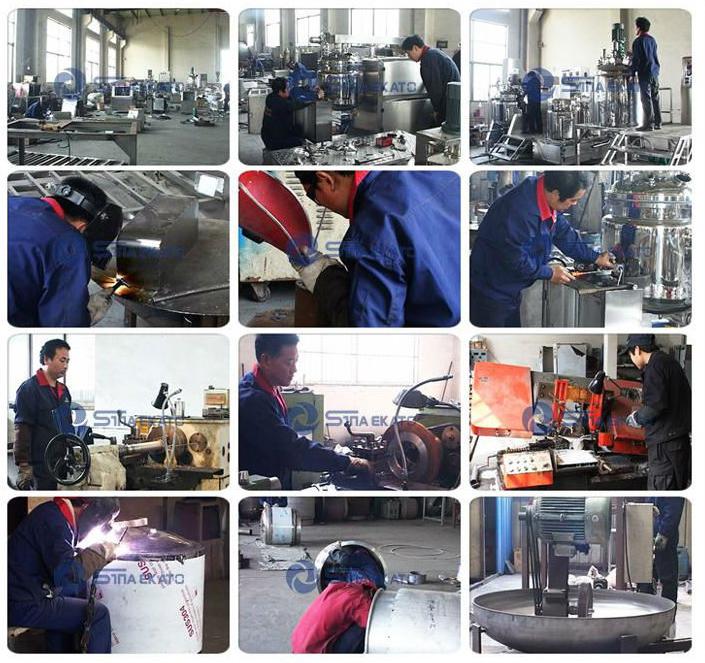

With many years of experience in domestic and international installation, we provide internationally top-ranking professional project installation and management. Our after-sales personnel have practical experience in equipment maintenance and receive systemic training. We provide machinery, raw materials, packing materials, and technical consultation services.

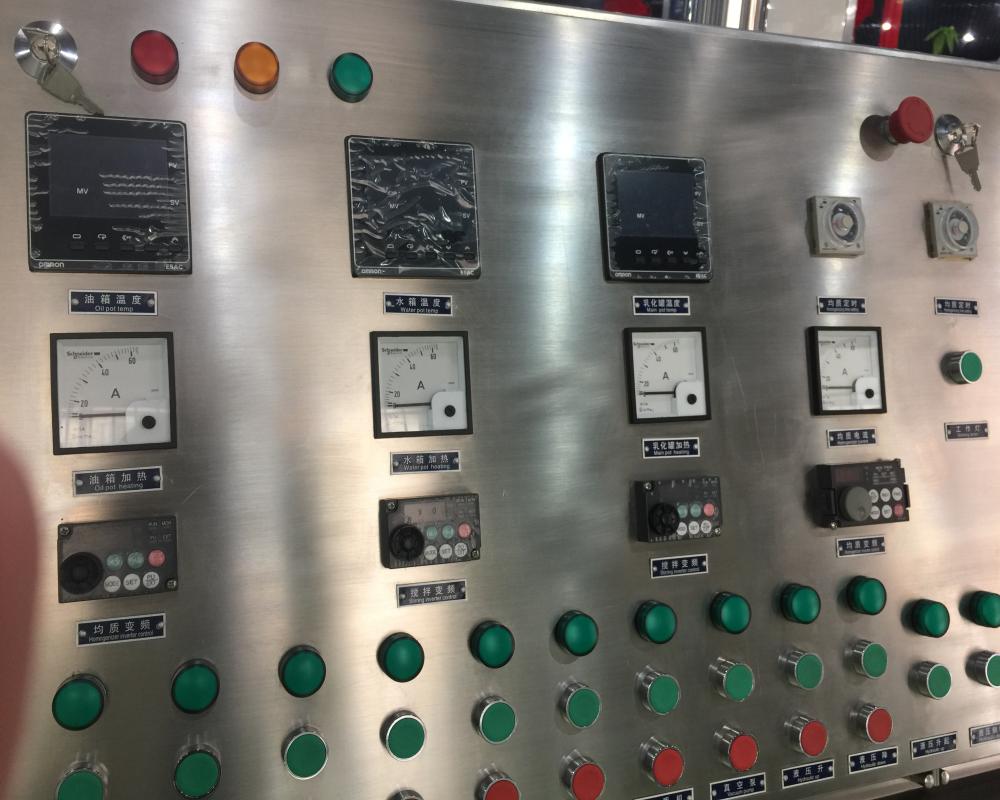

PLC Control Cabinet & Components

Frequently Asked Questions

Q1: How does the bidirectional stirring vacuum emulsifier achieve 99% uniformity? A1: It utilizes a combination of a high-speed rotor for centrifugal shearing and a stirrer along the vessel wall, ensuring materials are spread homogeneously and uniformly.

Q2: What is the benefit of the small aperture between the stator and rotor? A2: The very small aperture ensures highly effective grinding, shearing, and emulsifying while preventing collision and friction during high-speed rotation.

Q3: Can the machine handle highly viscous products? A3: Yes, the system includes a scraping stirring frame designed specifically to handle sticky materials and prevent dead corners during the stirring process.

Q4: What heating options are available for the SME-C models? A4: Most models support both steam heating and electric heating, with total power requirements varying based on the capacity.

Q5: Is the control system easy to operate? A5: Yes, the machines feature a PLC control electric cabinet with a clear line layout and button-controlled functions for adjusting mixing speeds and other parameters.

Q6: What types of products can be processed with this equipment? A6: It is suitable for a wide range of products including daily cosmetics (creams, lotions, shampoos), food (mayonnaise, sauce), and pharmaceutical ointments.
