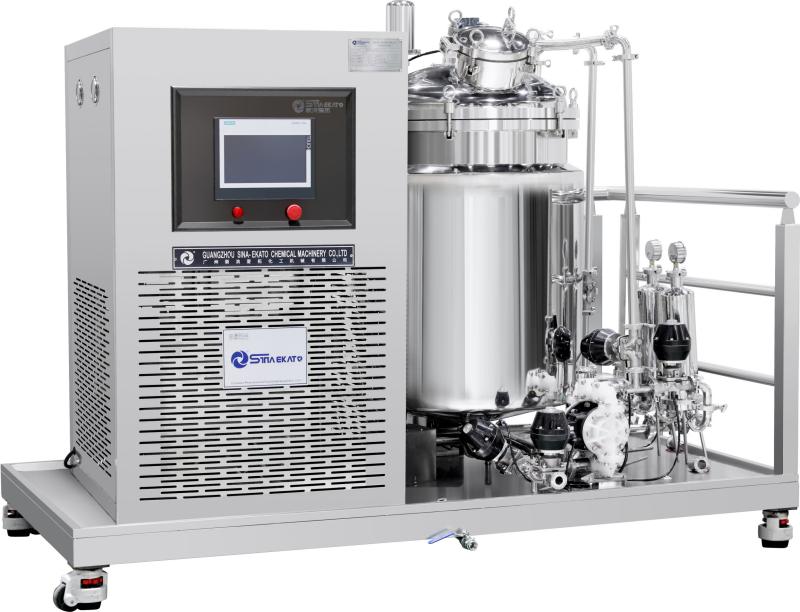

Perfume-making Machine Fragrance Chiller Filter Mixer
Applied on perfume, fragrance, parfume, hair spray, body spray, etc.
| Technical Parameter | |||||
| Model | 2P-100 | 3P-200 | 5P-300 | 5P-500 | 10P-1000 |
| Freezing power | 2P | 3P | 5P | 5P | 10P |
| Freezing capacity | 100L | 200L | 300L | 500L | 1000L |
| Filtration precision | 0.1μm | 0.1μm | 0.1μm | 0.1μm | 0.1μm |
| Refrigeration temperature | -5°C - -15°C | ||||
| Refrigeration liquid | R22 (can be other medium, according to customer choose) | ||||
| More size accept customized | |||||
Filtration System: Equipped with polypropylene microporous filtration film, Filtration accuracy reach to 0.2 μm.
Mixing & Chilling: SUS316L material contact part. One machine realizes mixing, chilling and filtering functions.
Pneumatic Mixing Motor: Safety-focused, suitable for alcohol mixing. Speed: 0-900rpm.
Control Components: Button control with emergency stop switch for operator safety.
Pneumatic Pump: Double function for pumping raw materials and finished products between tanks.
Perfume Crimping Machine (Semi-auto)
Perfume Filling Machine
Perfume Paper Filter
Perfume Cartridge Filter
The product is made of high quality 304 stainless steel or 316L stainless steel. The pneumatic diaphragm is adopted for pressure source to carry out positive pressure filtration. The connecting pipes are sanitary polishing pipes, which completely adopt rapid installation type connection, with convenient assembly, disassembly and cleaning. It can be widely used in cosmetics industry, scientific research department, hospital and laboratory for clarification, bacteria removal and filtration.
(Includes: Mixing tank + Chiller system + Pump for circulation & discharge + 3-stage filtration process)
