Key Features & Components
⚙️
PLC control system with bilingual display for easy operation.
🏗️
Feed port and barrel made of 304 material; larger port for easy pouring.
🔧
Tool-free disassembly/assembly of hopper and filling clips.
🌀
Internal screw and mixing mechanism to prevent material accumulation.
📏
Screw metering feeding with customizable filling heads for bottle mouths.
🔌
Dual motor and stepper motor control for low noise and long service life.
🖱️
Supports both automatic feeding and manual foot pedal operation.
🎯
Vibrator and custom small funnel to improve filling accuracy.
↕️
Adjustable tray platform according to the bottle height.
Core Advantages
- Increase productivity: High drum capacity and efficient filling range to reduce bottlenecks.
- Cost-effective operation: Precision minimizes waste, ensuring maximum material utilization.
- Multiple Applications: Suitable for food, pharmaceuticals, and industrial powders.
- Easy to Maintain: User-friendly design and durable materials simplify troubleshooting.
- Reliable Performance: Advanced technology and rugged construction for long-term use.
Technical Specifications
| No |
Description |
Specification |
| 1 |
Circuit control |
PLC control (English and Chinese) |
| 2 |
Power supply |
220v, 50hz |
| 3 |
Packing material |
Bottle |
| 4 |
Filling range |
0.5-2000g (requires screw replacement) |
| 5 |
Filling speed |
10-30 bags/min |
| 6 |
Machine power |
0.9KW |
Detailed Performance
Metering Method: Screw metering and electronic weighing with ±1% accuracy.
Barrel Capacity: Up to 50 liters, ideal for high-demand environments.
PLC Control: Chinese and English bilingual display for easy training and operation.
Power Supply: Standard 220V/50Hz, compatible with most industrial setups.
Filling Versatility: Wide range (0.5g to 2000g) with customizable filling heads.
Durable Structure: Contact parts made of high-quality 304 stainless steel.
Humanized Design: Large feed port and tool-free snaps for quick cleaning.
Internal Efficiency: Stirring mechanism ensures consistency and quality.
Stepper Motor: Precision unloading control for reliable and quick adjustments.

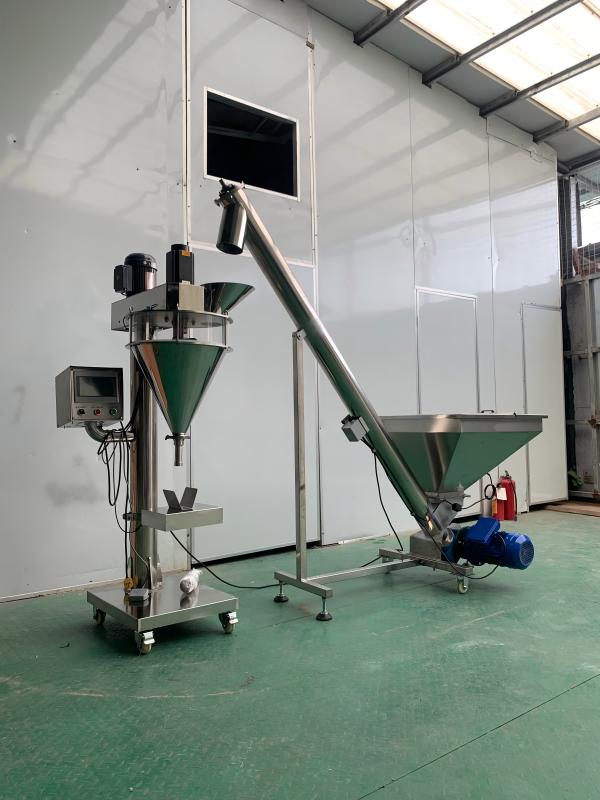

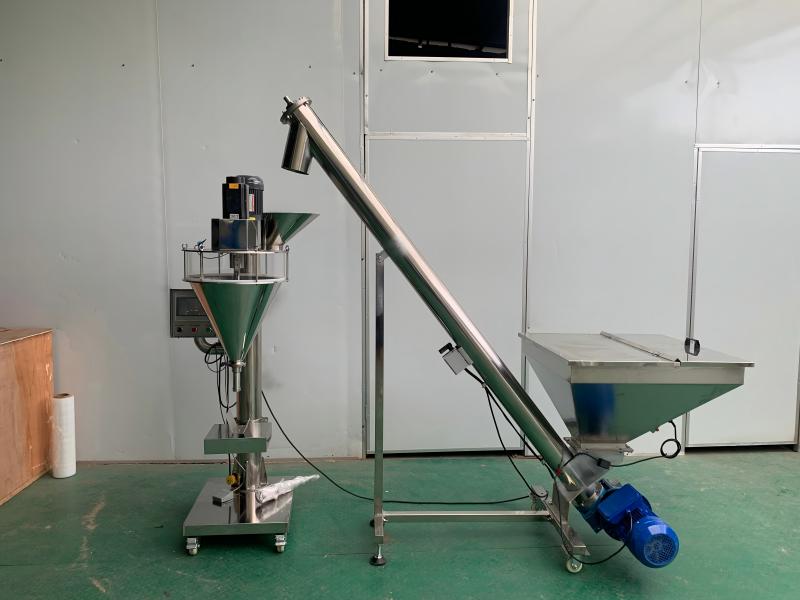

Product Gallery
Frequently Asked Questions
1. What is the filling accuracy of this machine?
The machine uses screw metering and electronic weighing to provide a high packaging accuracy of ±1%.
2. Can the filling range be adjusted for different products?
Yes, the filling range is from 0.5g to 2000g. You may need to replace the screw to accommodate different weights and volumes.
3. Is the machine suitable for food-grade applications?
Absolutely. The contact parts are made of high-quality 304 stainless steel, ensuring durability, hygiene, and corrosion resistance.
4. How easy is it to clean the barrel and hopper?
The machine features a humanized design with snaps that allow the bucket, hopper, and filling components to be disassembled without any tools.
5. Does the control system support different languages?
Yes, the PLC control system features a bilingual display in both Chinese and English for user-friendly operation.
6. What type of containers can be used with this machine?
The machine is primarily designed for filling bottles, and the filling head can be customized to fit your specific bottle mouth size.
