Ideal for cosmetics, food, pharmaceutical, and chemical raw material sectors, this filling machine efficiently handles all types of liquids, creams, emulsions, facial creams, ointments, essential oils, laundry detergent, shampoo, body wash, semi-fluids, honey, and various viscous materials.

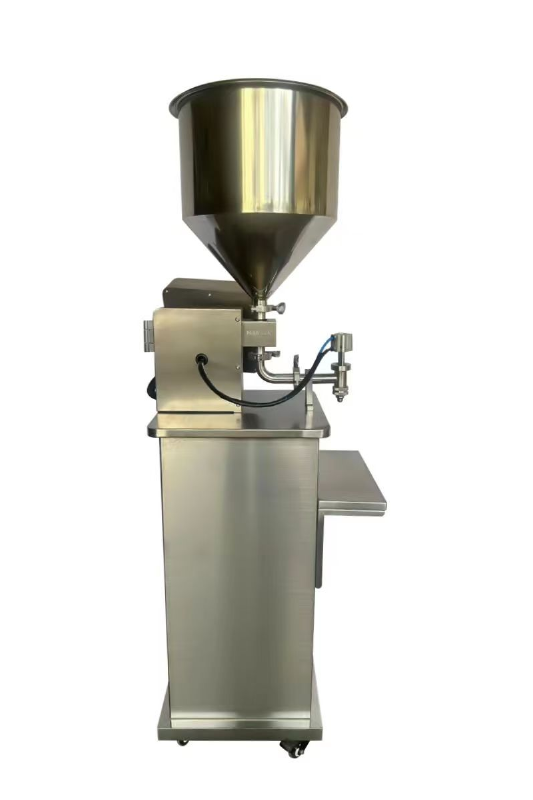

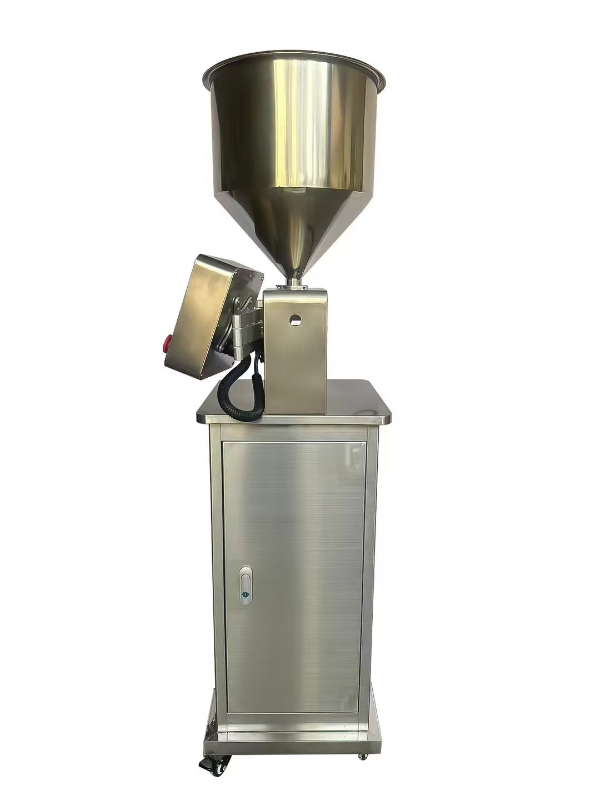

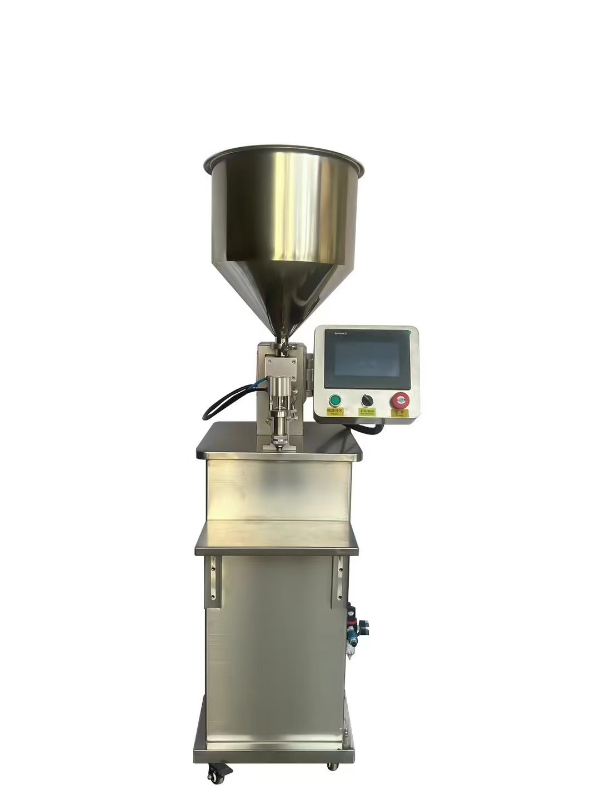

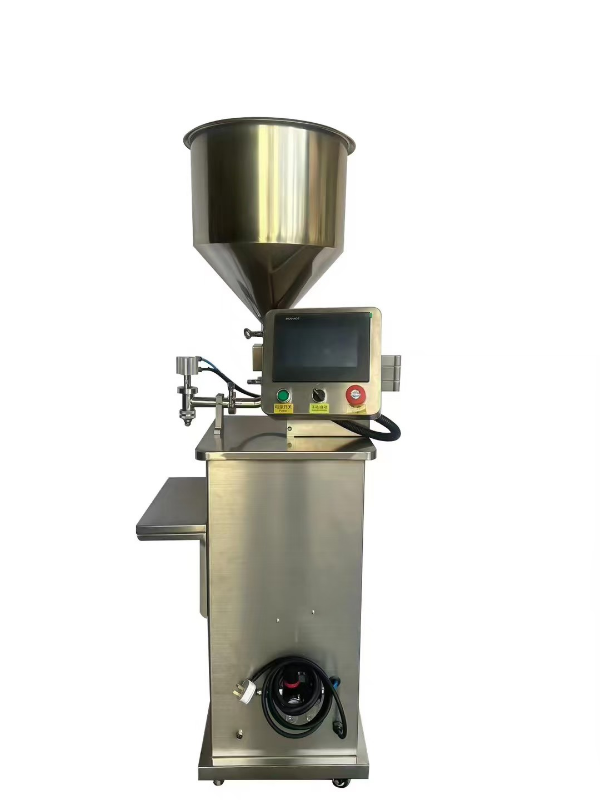

This servo gear pump filling machine redefines filling efficiency and convenience. Unlike traditional piston fillers, it eliminates complex disassembly for cleaning, reduces downtime, and ensures seamless production. The servo-driven system enables precise, programmable filling with unlimited capacity, making it the perfect upgrade for businesses looking to streamline their filling processes across cosmetics, food, and pharmaceutical production lines. Semi-Automatic Vertical Gear Pump Filling Machine is widely used in the packaging line of shampoo, conditioner, body wash, skin care products, etc., suitable for plastic bottle containers of different specifications.
Technical Specifications
| Parameter |
Details |
| Frame Material |
304 stainless steel + high-grade anodized aluminum alloy, with 316L magnetic gear pump |
| Voltage & Power |
220V, 50HZ, 850W |
| Filling Range |
10ml - Unlimited (equipped with 60L/min high-flow pump) |
| Drive System |
Servo motor driven, with 2-stage speed setting; filling volume directly adjustable on touch screen |
| Operation Modes |
Foot pedal mode / continuous automatic mode |
| Filling Speed |
20-40 bottles/min (subject to material, bottle type, and manual operation speed) |
| Filling Accuracy |
±0.5g |
| Machine Dimensions |
600*450*1570MM |
| Suitable Bottle Height |
30mm - 300mm |
Key Features & Benefits
🚀
Fast Filling Speed: Boost production efficiency with high-speed operation.
🔄
Multi-purpose Machine: Adapt to diverse products without complex reconfiguration.
💻
User-friendly Interface: "Fool-proof" touch screen, easy to learn and operate.
🎯
High Quantitative Accuracy: Ensure consistent, precise filling every time (±0.5g).
📏
Small Footprint: Save workshop space with a compact vertical design.
🧼
Simple Cleaning: Easy disassembly for hygiene-sensitive industries.
🍶
Wide Application: Suitable for liquids, semi-fluids, and high-viscosity materials.
📥
Dual Feeding Options: Supports self-priming and material hopper usage.
Application & Components
Hair Conditioner Processing
Shampoo Production Samples
Feeding & Collection Table
Full-auto Filling Solution
Frequently Asked Questions
What types of products can this machine fill?
This machine is versatile and can handle liquids, creams, emulsions, ointments, essential oils, honey, shampoo, and high-viscosity materials across various industries.
How does the servo gear pump differ from traditional piston fillers?
Unlike piston fillers, our servo gear pump system eliminates the need for complex disassembly during cleaning, significantly reduces downtime, and offers unlimited filling capacity.
What is the filling range and accuracy of the machine?
The machine supports a wide range from 10ml to unlimited volume, maintaining a high quantitative accuracy of ±0.5g.
Is the machine easy to operate for new staff?
Yes, it features a "fool-proof" user-friendly touch screen interface, making it very easy to learn and operate with minimal training required.
Can I adjust the filling speed and volume?
Absolutely. The servo-driven system allows you to adjust both filling volume and speed directly via the touch screen for maximum precision.
What are the power requirements and dimensions?
The machine operates on 220V/50HZ with 850W power. Its compact vertical design measures 600*450*1570MM, perfect for saving workshop space.
