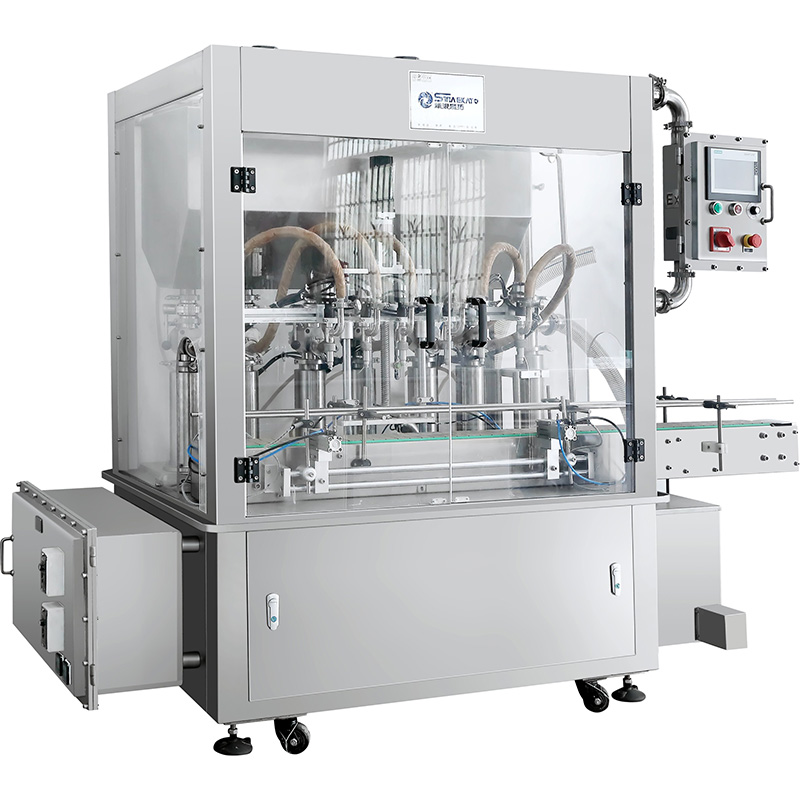

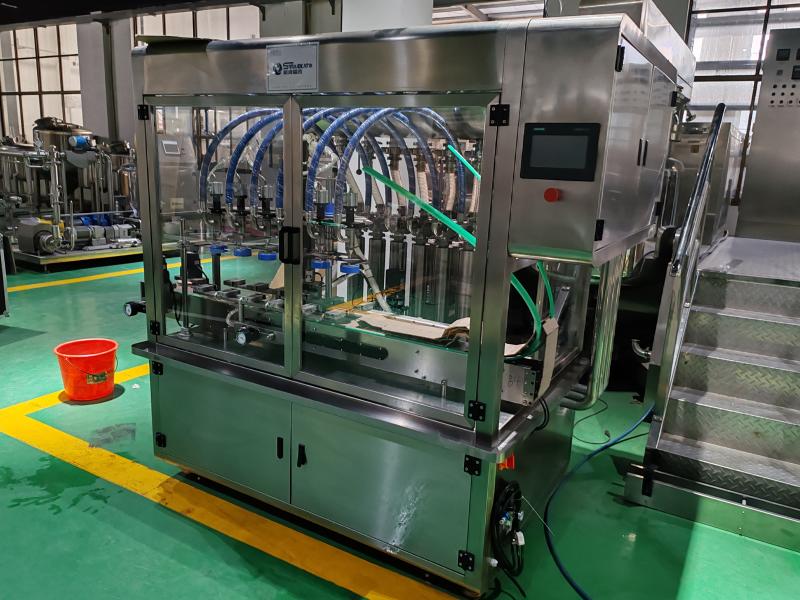

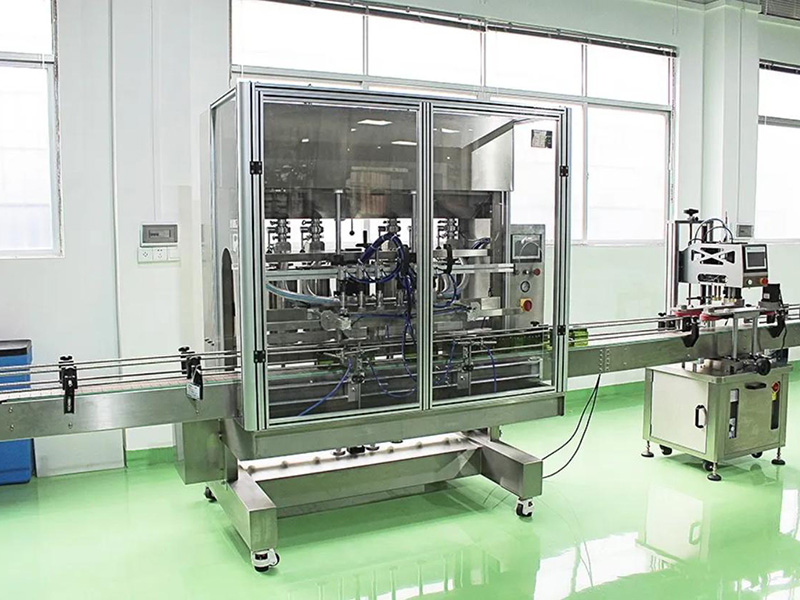

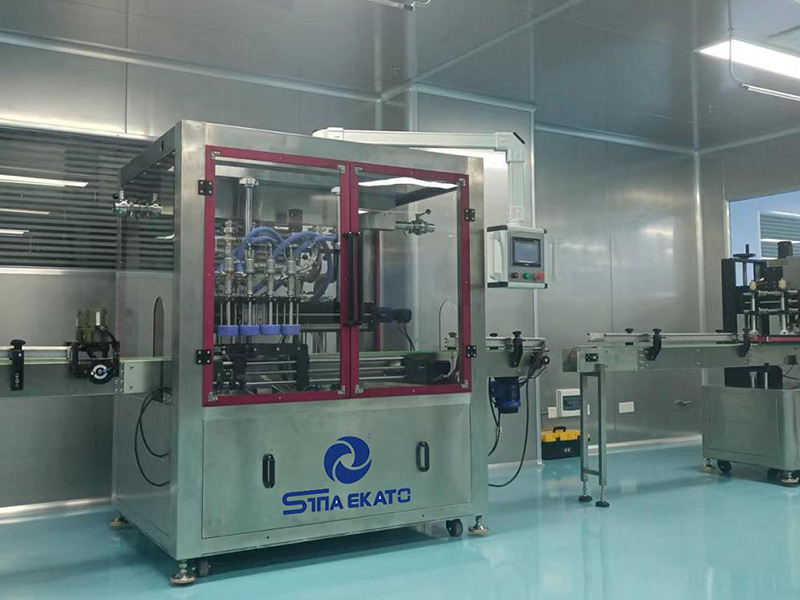

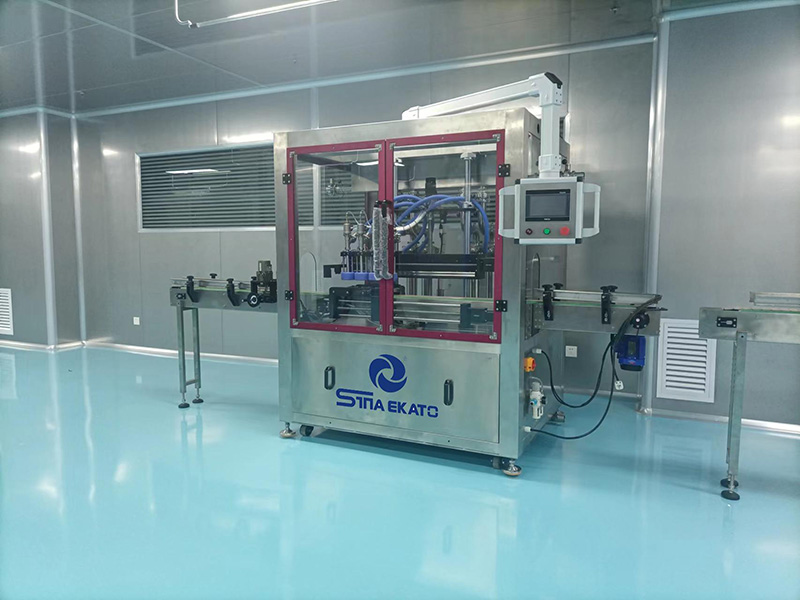

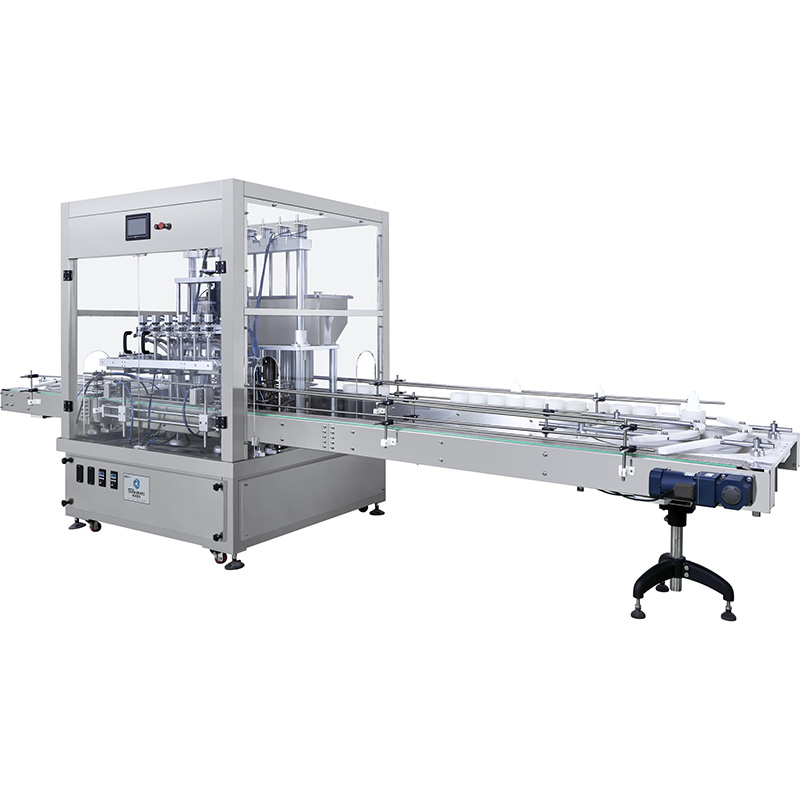

The piston fillers are designed to dispense products of different viscosity. The components that come in contact with product are made of 316 stainless steel which is sourced from Sweden and processed by CNC machines to ensure a surface roughness lower than 0.8. Main pneumatic components are from Airtac, Taiwan. PLC & Touch screen is from Siemens. Mainly used for lubricating oils, skin care products, hair washing products, body washing, hair care, body care, other washing products, sauces, and oral liquids.
| No | Description | |
| Contact material part stainless steel 316L, other part stainless steel 304; | ||
| - |

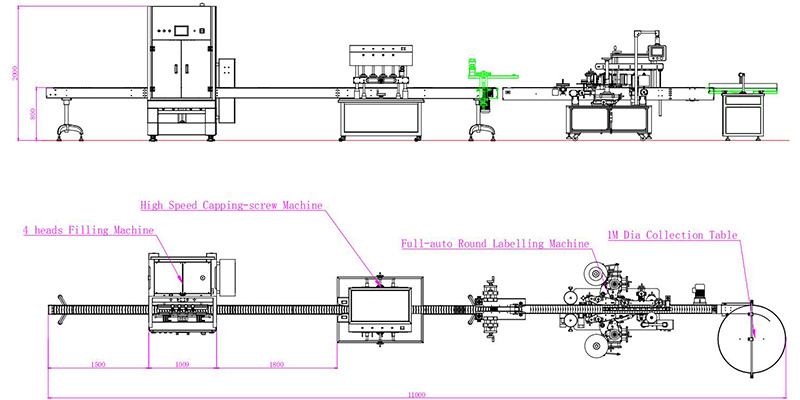

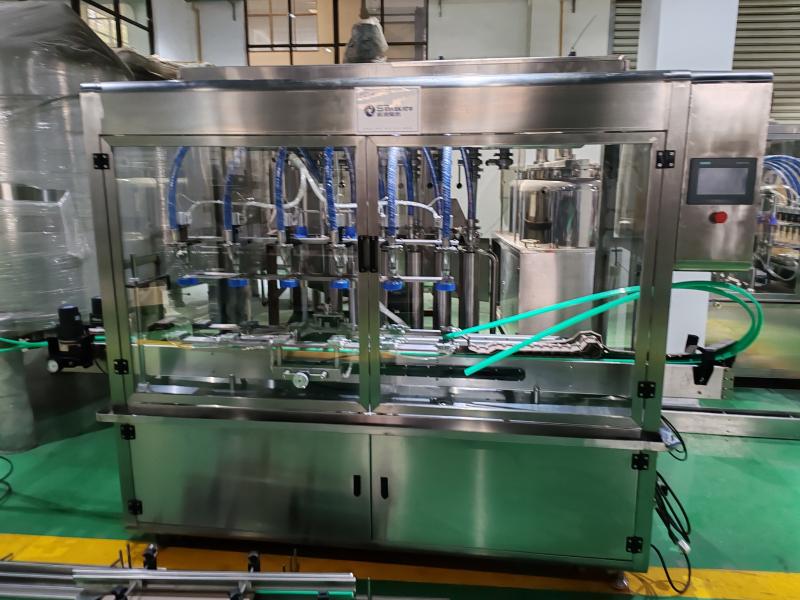

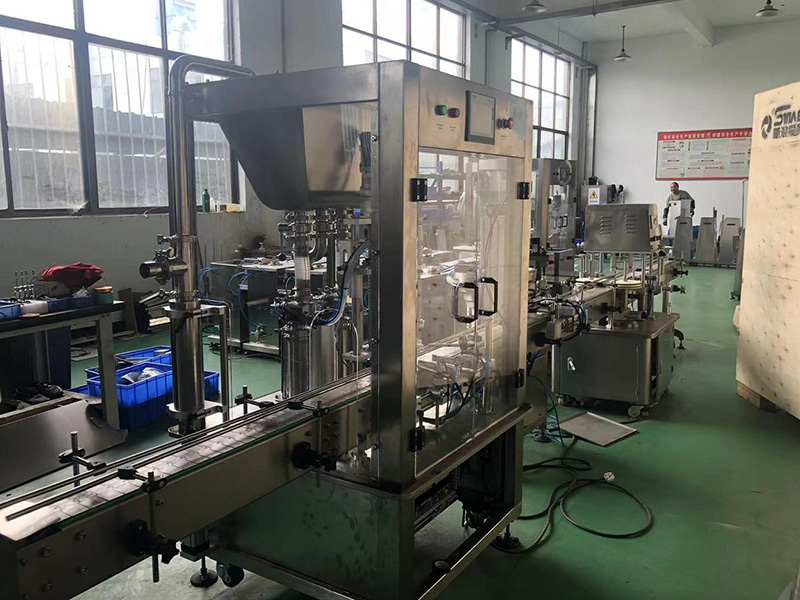

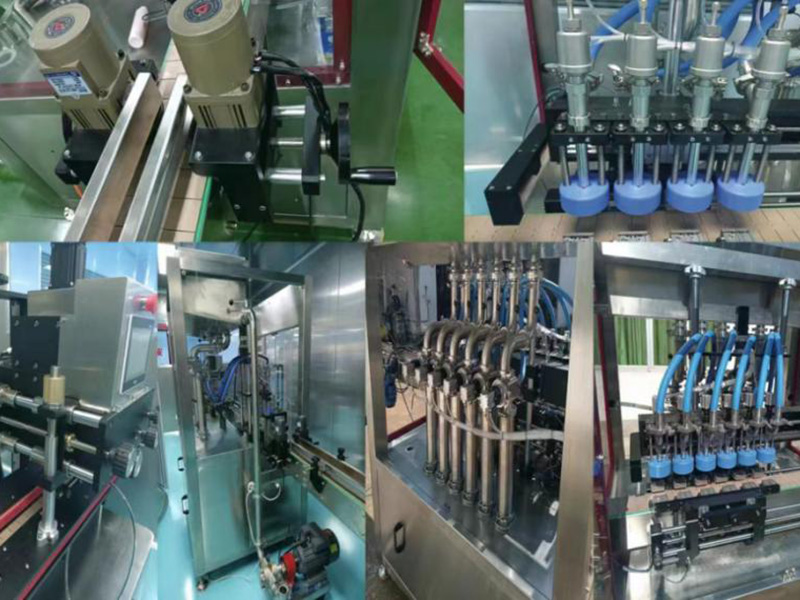

4 Heads Filling Machine (Follow type + Servo type) - 4 nozzles filling machine (servo motor: 1KW); - Material tank dia76*2; - Transfer valve is direct push plunger valve; - Adopt anti-drip cylinder filling head with blowing power; - Japan Omron reflector photoelectric counting; - No bottle, no filling sensor; - Servo filling head lifting, touch screen adjustment. |
|
| 1 | Filling head | 2, 4, 6, 8, 10, 12 heads (Customizable) |
| 2 | Filling range | 5-60ML to 100-1000ML |
| 3 | Bottle height | 50-200MM |
| 4 | Bottle diameter | 40-110MM |
| 5 | Compatible products | Cream, lotion, detergent, shampoo, liquid-washing, water |
| 6 | Filling precision | ±1% |
| 7 | Air Pressure | 0.6Mpa |
| 8 | Program controller | Touch screen & PLC |
| 9 | Filling speed | 40-80 bottles/min |
| 10 | Working condition | Power: 220V 2KW; Air pressure: 4-6KG |
| 11 | Dimension | 5000*1300*1950mm |
| No | Name | Origin |
| 1 | PLC | SIEMENS |
| 2 | Touch screen | SIEMENS |

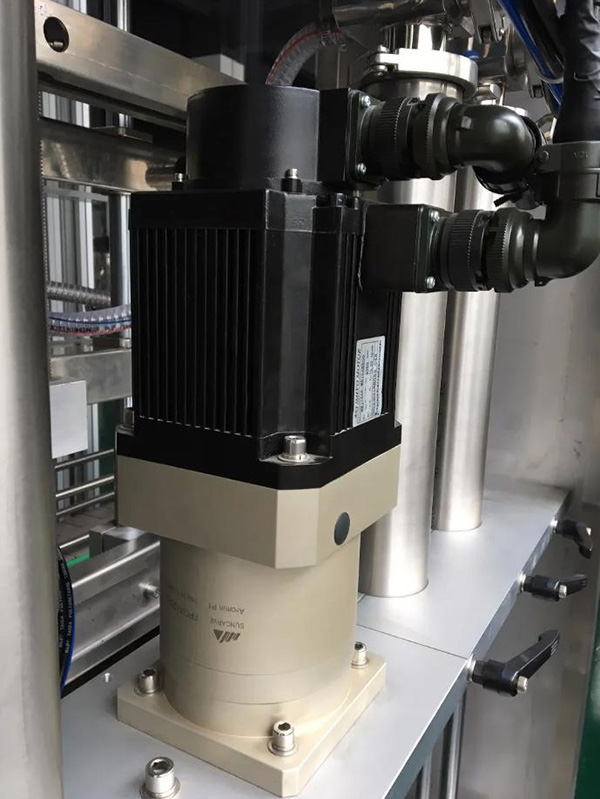

| 3 | Servo motor (Filling) | MITSUBISHI |

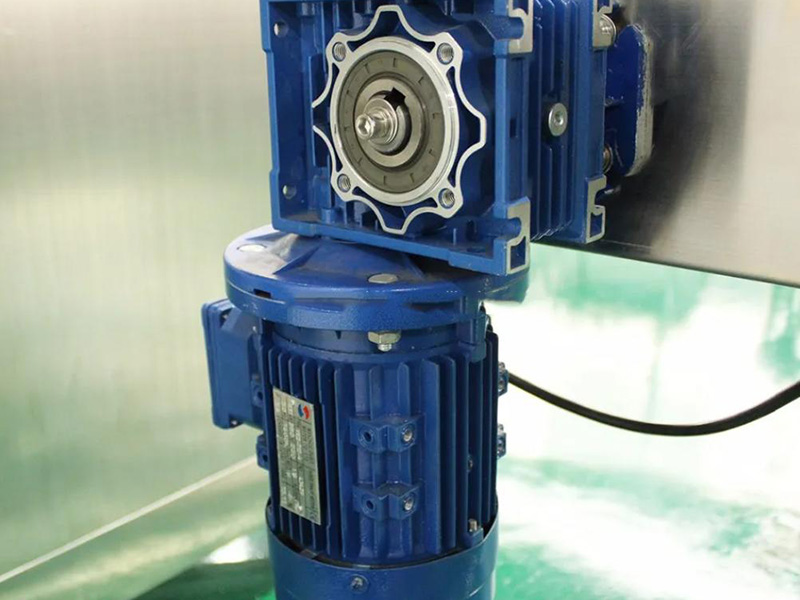

| 4 | Conveyor belt motor | JSCC |
| 5 | AC Contactor | Schneider |
| 6 | Emergency center | Schneider |
| 7 | Power Switch | Schneider |
| 8 | Buzzer | Schneider |
| 9 | Converter | MITSUBISHI |
| 10-13 | Cylinders | AirTAC |
| 14-15 | Photoelectric Switch | OMRON |
| 16-17 | Valve & Filter | AirTAC |
It is designed for products with varying viscosities, including lubricating oils, creams, lotions, shampoos, detergents, and even watery liquids.
Yes, all contact parts are made of high-quality 316L stainless steel with a surface roughness of less than 0.8, meeting strict hygiene standards.
The machine offers high filling precision of ±1%, controlled by high-performance servo motors and PLC systems.
Yes, it features a bottle mouth localizer that makes it compatible with irregular shapes and different diameters (40-110MM) or heights (50-200MM).
The parts are connected with quick-release clamps, making disassembly, assembly, and cleaning very fast and convenient.
Absolutely. It includes an automatic "no bottle, no fill" system, malfunction self-diagnosis, and a security alarm for abnormal liquid levels.
