High-Quality Automatic Deodorant Labeling Machine Supplier, Factories
High-Quality Automatic Deodorant Labeling Machine Supplier, Factories
1 / 2
High-Quality Automatic Deodorant Labeling Machine Supplier, Factories
High-Quality Automatic Deodorant Labeling Machine Supplier, Factories

High-Quality Automatic Deodorant Labeling Machine Supplier, Factories

750W YASKAWA ultra-small inertia servo motor, YASKAWA servo amplifier, Danfoss frequency converter, JSCC motor, Siemens Programmable Logic Controller (PLC), WEINVIEW color HMI (in English and Chinese user interface), LION 2100 clear label sensor,LEUZE bottle sensor
Send Inquiry

Product Description

Advanced Technology Overview

Host using two top technologies:

  • Double press roll delivery: Improves labeling accuracy. Before labeling, the label passes through the initiative pressing roll, which eliminates wrinkles and improves labeling quality down to the last label.
  • Secondary rocker spring delivery: Label clutch with additional belt brakes achieves high-speed constant tension delivery.
    • Technology 1
    Technology 2
    Technology 3
    Technology 4
    Item No. Project Instruction
    1Goods size, shapeOval bottle, flat bottle with front and back labels, round bottle wrap around label
    2Label sizeBased on samples
    3Equipment directionNormal from left to right (face to touch screen)
    4Label QtyTwo labels
    5Production speed2000-8000 BPH
    6Installation placeLabeling after filling
    7Equipment height900MM
    8Labeling methodSelf-adhesive
    9Labeling requirementNon-position labeling
    10Labeling accuracy±1MM
    Key Components & Features

    Touch screen: WEINVIEW

    Top belt holder Pressing device: Stand-alone type, motor controlled.

    Synchronous chain correcting device: Motor controlled with frequency converter adjustment. Specially suited for cone bottle correction and large range bottle types (Patented).

    Bottle separate device: Panasonic Motor with frequency speed control.

    Device Components
    New Design Labeling Head (2 Sets)

    Using a patent design of new concepts, increased structural rigidity, and multi-dimensional adjustment.

    Labeling Head 1
    Labeling Head 2
    Labeling Head 3
    Bottle Fixing & Wrap Around Devices

    Cone bottle second fixing device: Dedicated for oval shape products, Japan servo motor control. (Requires custom mould for different oval bottles).

    Fixing Device

    Wrap around bottle device: Suitable for round bottle labeling and symmetrical labeling. Different shape round bottles require changing three-rollers.

    Wrap Device
    Machine Performance Interpretation

    Equipped with ultra-small inertia 750W YASKAWA servo motors and Siemens PLC closed-loop control. The system achieves an accuracy class of 0.01 m/min. Speed is adjustable between 0.5-40 m/minute to meet diverse production line requirements.

    Performance Comparison
  • Uses ultra-small inertia servo motors instead of standard stepper motors.
  • PLC control instead of general SCM systems.
  • Real digital control HMI rather than a simple display.
    • Transport & Labeling Institution

    Transport Sector: Imported AC motor with frequency converter. Zero-latency optical switch achieves zero-pitch labeling, greatly improving production speed compared to fixed-signal delayed control systems.

    Labeling Institution: Eight-orientation adjustment head allows for free angle settings, making it easy to apply difficult or transparent labels. High elastic sponge scrapers ensure no air bubbles.

    Applications & Industries

    Suitable for front and back labeling of flat, oval, and round bottles. Widely used in:

  • Daily chemicals & cleaning supplies
  • Petroleum and machine oil
  • Food and beverage
  • Pharmaceutical industry
    • Technical Specifications
    Using power220V 50 Hz 3000W
    Production speed40m/min
    Label accuracy±1mm
    Label roller outer diameter max400 mm
    Label roller inner diameter76.2 mm
    Label width max (Flat bottle)180mm (customizable)
    Label width max (Round bottle)168mm

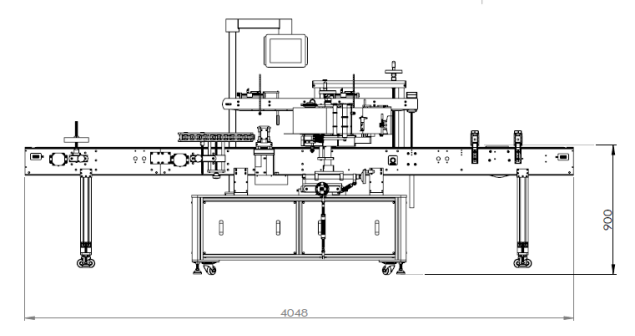

    Size of machineL4048*W1400*H1650 (mm)
    Weight of machine500kg
    Conveyor height900mm
    Bottle diameter/width30-100mm
    Main Component Configuration
    No. Name Qty Brand
    1Color touch screen1 setWEINVIEW
    2Servo motor2 setYASKAWA
    3Servo driver2 setYASKAWA
    4/5Frequency converter2 setDanfoss
    6PLC1 setSiemens
    7Clear label sensor2 pcsLION 2100
    8Bottle sensor1 pcsLEUZE
    9-11Motors & Reducers-WanSHin / Panasonic
    15/16Electrical Components-SCHNEIDER
    Remarks: The whole machine is made of advanced 304 stainless steel and Anodized Aluminum.
    Key Advantages
  • Extremely fast speed: 3000-8000 B/H for flat bottles.
  • High precision: ±1mm accuracy.
  • Quick changeover: Fast bottle switching without disassembly.
  • Stability: Eight-orientation labeling head adjustment with independent control systems.
  • Food safety: Spare parts made strictly according to food safety standards.
  • Advanced Control: High precision label stop via imported brand components.
    • Operational Requirements
  • Bottle surface must be clean and dry.
  • Manufacturer requires sample bottles and labels for testing during production.
  • Bottles must not be deformed to ensure labeling beauty.
  • Label surface should not be spherical (cambered is acceptable).
    • Label Tape Directions

    1. Front Labels

    Front Direction

    2. Back Labels

    Back Direction
    Frequently Asked Questions
    Q1: What is the labeling accuracy of this machine? A: The machine provides high precision labeling with an accuracy of ±1mm, excluding minor errors from the labels or bottles themselves.
    Q2: Which bottle shapes can this equipment handle? A: It is a versatile machine suitable for flat bottles, oval bottles, round bottles, and even some cone-shaped bottles using specialized fixing devices.
    Q3: How fast can this machine label products? A: Depending on the product size, it can reach speeds of 3000 to 8000 bottles per hour (BPH), with a maximum transport speed of 40m/min.
    Q4: Can it handle transparent labels? A: Yes, the labeling head features eight-orientation adjustment and uses specialized clear label sensors (LION 2100) to ensure accurate application of transparent labels.
    Q5: What are the main electronic components used? A: We use world-class brands including Siemens PLC, YASKAWA servo motors, WEINVIEW touch screens, and Schneider electrical switches for maximum durability.
    Q6: Is the machine compatible with food industry standards? A: Absolutely. The machine is constructed from 304 stainless steel and anodized aluminum, with spare parts processed strictly according to food safety requirements.
